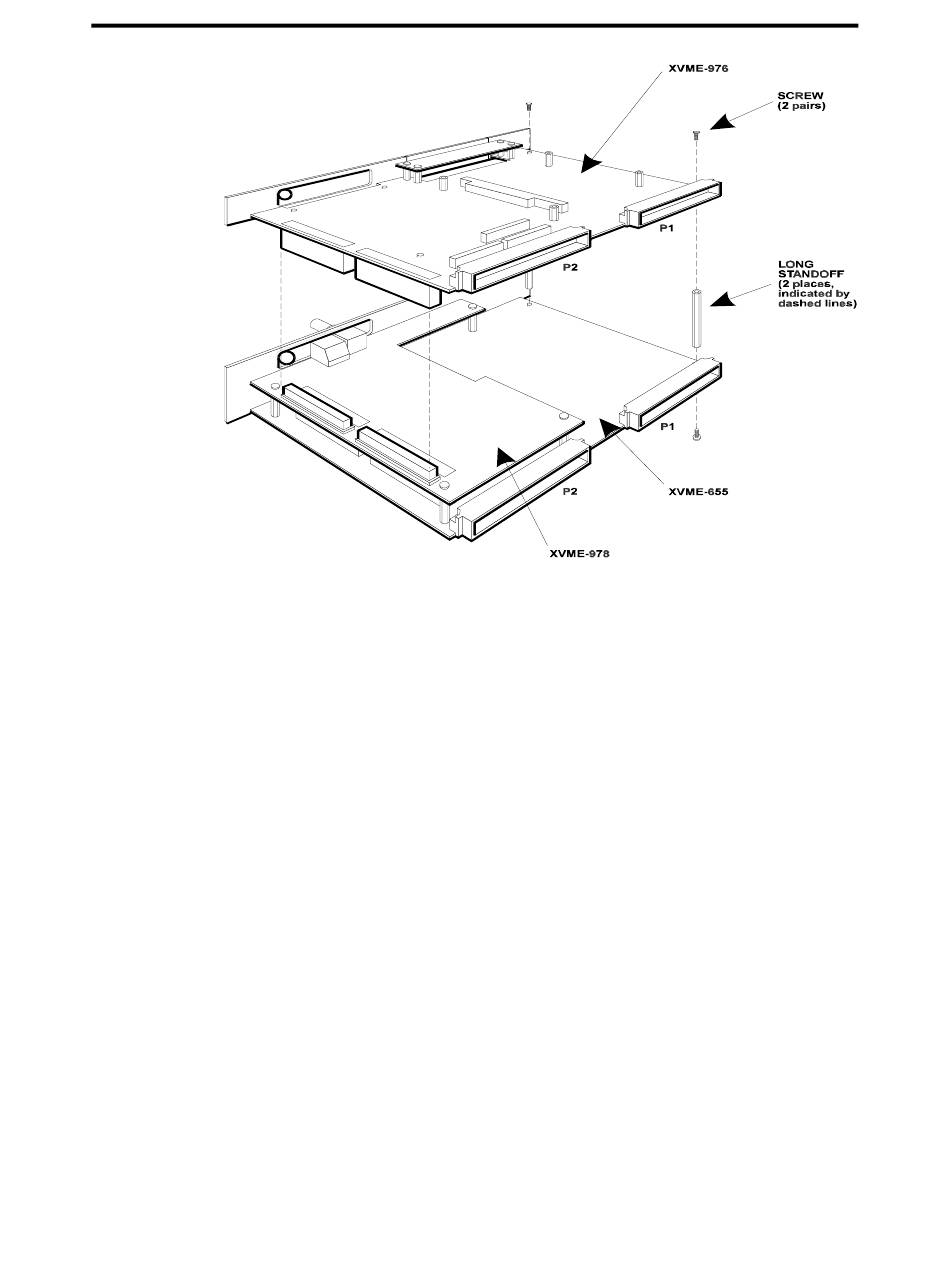

Figure 1-2. Installing XVME-976 onto XVME-978
9. Clear three adjacent card cage Slots.
10. Align the three connected modules (with the XVME-976 on the right) on
the plastic guides in the slots.
11. Gently push the modules to the rear of the chassis until the P1 and P2
connectors engage.
12. Tighten the screws on the front panel of the XVME-655 processor module to
secure the connected modules into place. The installation is complete.
