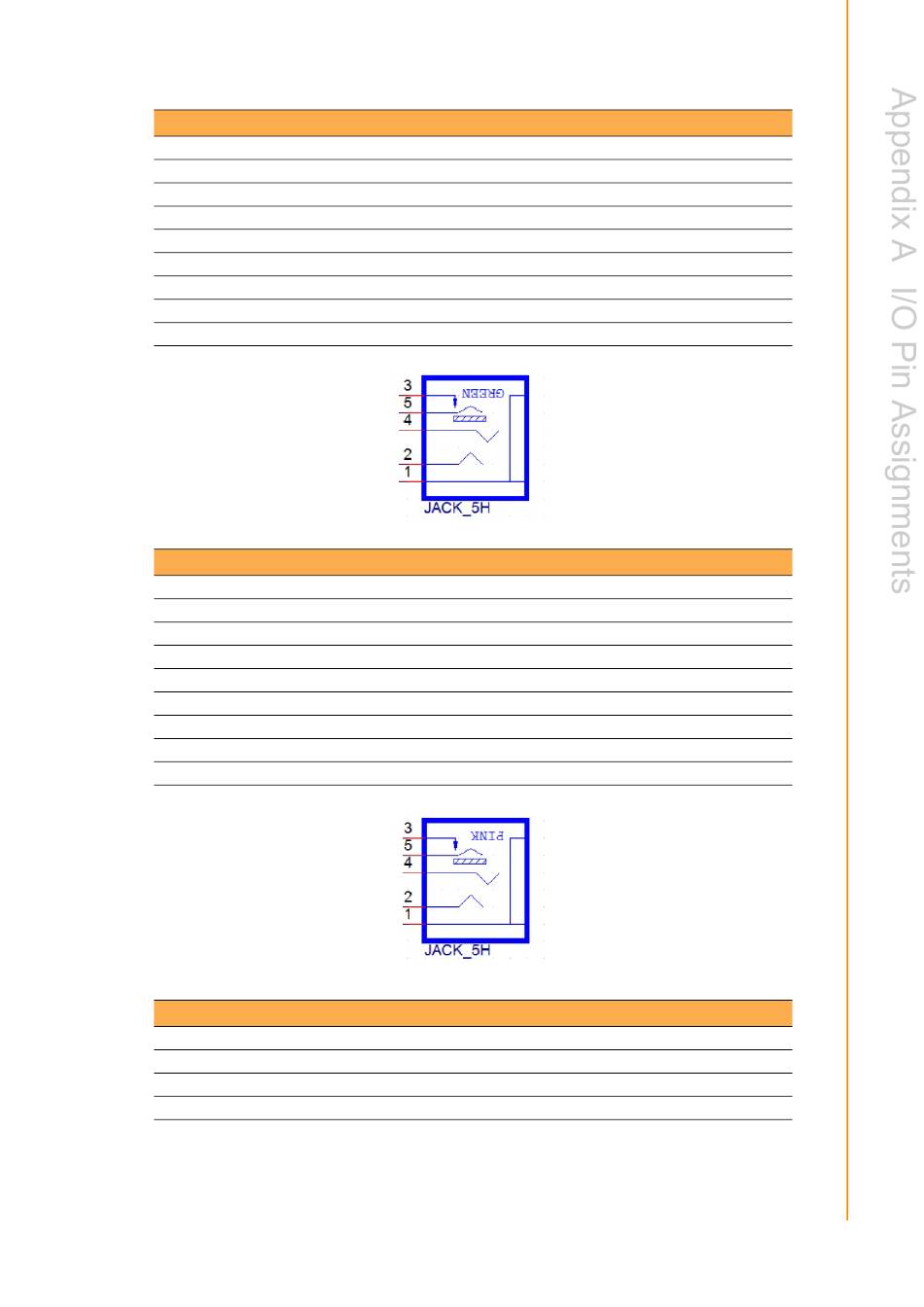

Table A.14: CN21: Line-out
Part Number
1652001586
Footprint
KUONYI_PJ-2508PC-5-L
Description
PHONE JACK 5P 3.5φ 90D(F) AZALIA GREEN DIP WO/P
Pin
Pin name
1
GND
2
OUT_L
3
JD
4
OUT_R
5
GND
Table A.15: CN22: MIC-IN
Part Number
1652001584
Footprint
KUONYI_PJ-2508PA-5-L
Description
PHONE JACK 5P 3.5φ 90D(F) AZALIA PINK DIP WO/Pb
Pin
Pin name
1
GND
2
MIC_L
3
JD
4
MIC_R
5
GND
Table A.16: CN17: LAN1/LAN2
Part Number
1652003274
Footprint
RJ45_28P_RTB-19GB9J1A
Description
PHONE JACK RJ45 28P DIP RTB-19GB9J1A
Pin
Pin name
39
UTC-320 User Manual
