- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® VariantPro with Integrated Hub Base ® AAL-1024-0-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
-
Page 2: Important Safety Instructions

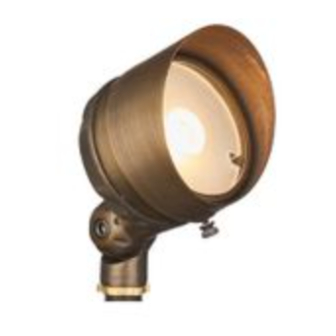

INSTALLATION & MAINTENANCE GUIDE VariantPro with Integrated Hub Base ® AAL-1024-0-B-BZ Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. - Page 3 Package Contents A. (1) Fixture Body Product Dimensions 2.5” There are three types of mounts that are sold separately for this fixture; the Stake Mount, Surface Mount and Tripod Mount. customersupport@amplighting.com • 813.978.3900 –3–...
- Page 4 INSTALLATION & MAINTENANCE GUIDE VariantPro with Integrated Hub Base ® AAL-1024-0-B-BZ Option1: Stake Mount Wire Connection Connectors Integrated Hub Top Fixture Wires Main Supply Wires Stake Mount Main Supply Wire Main Supply Wire Continuation Insert the main supply wire continuation (if needed) and the main sup- ply wire up through the bottom of the stake mount and strip the ends of both sets of supply wires.
- Page 5 INSTALLATION & MAINTENANCE GUIDE VariantPro with Integrated Hub Base ® AAL-1024-0-B-BZ Install Stake Mount Clear away an area in the ground at the wireway slot on top of the stake. Lay the supply wires Stake Mount into the wireway slot and screw Wireway Slot the stake mount on to the stake.
- Page 6 INSTALLATION & MAINTENANCE GUIDE VariantPro with Integrated Hub Base ® AAL-1024-0-B-BZ Option 2: Surface Mount Wire Connection Connectors Integrated Hub Top Fixture Wires Main Supply Wires Surface Mount Main Supply Wire Main Supply Wire Continuation Insert the main supply wire continuation (if needed) and the main supply wire up through the bottom of the surface mount and strip the ends of both sets of supply wires.
-
Page 7: Wire Connection
Option 3: Tripod Mount Wire Connection Connectors Integrated Hub Top Fixture Wires Main Supply Wires Tripod Mount Main Supply Wire Main Supply Wire Continuation Insert the main supply wire continuation (if needed) and the main sup- ply wire up through the bottom of the tripod mount and strip the ends of both sets of supply wires. -
Page 8: Bulb Installation
INSTALLATION & MAINTENANCE GUIDE VariantPro with Integrated Hub Base ® AAL-1024-0-B-BZ Bulb Installation Remove Glare Guard and Lens Loosen the lens and the set screw and remove the glare Glare Guard guard. Set Screw Lens Fixture Body Install Bulb Insert the bulb with the correct... - Page 9 INSTALLATION & MAINTENANCE GUIDE VariantPro with Integrated Hub Base ® AAL-1024-0-B-BZ Install Lens and Glare Guard Thread the lens onto the fixture body and hand tighten. Then, place the glare guard onto Glare Guard the lens and secure with the previously removed set screw.
- Page 10 INSTALLATION & MAINTENANCE GUIDE VariantPro with Integrated Hub Base ® AAL-1024-0-B-BZ Install/Replace Bulb Loosen the set screw to remove the glare guard and the lens to expose the bulb. Replace it with the correct wattage and type marked on the fixture label.
- Page 11 customersupport@amplighting.com • 813.978.3900 –11–...
- Page 12 Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AAL-1024-0-B-BZ-ver1.pdf...
