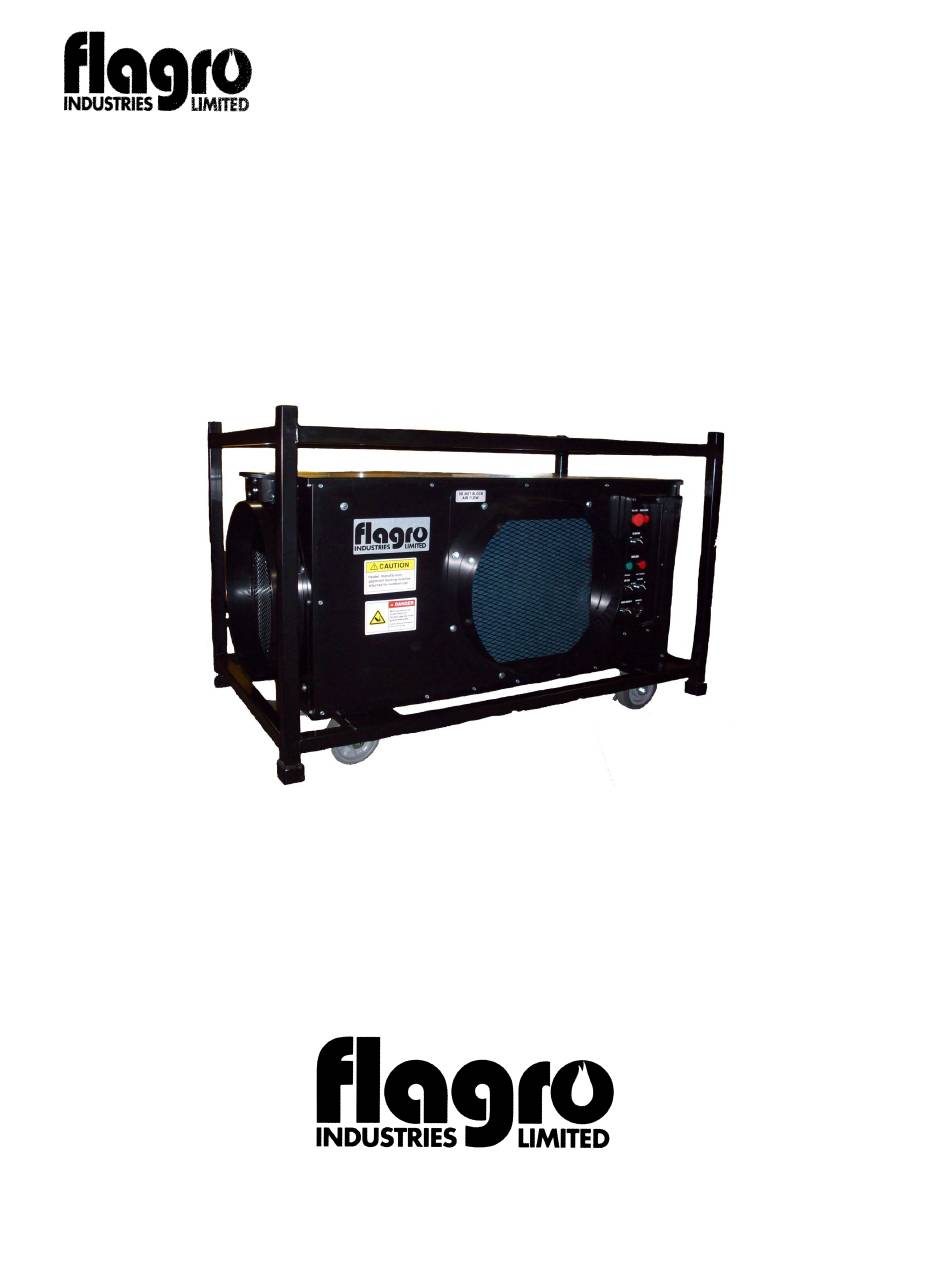

OPERATING INSTRUCTIONS MANUAL
FLE-60CSA
INDUSTRIAL / COMMERCIAL ELECTRIC HEATER
(OPERATOR MUST RETAIN FOR FUTURE REFERENCE)
Suitable for indoor or outdoor installation / Unvented / Unattended Type
26 Benfield Drive, St.Catharines, Ontario Canada L2S 3V5
(P) 905-685-4243 - (F) 905-685-0113

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLE-60CSA and is the answer not in the manual?

Questions and answers

Related Manuals for Flagro FLE-60CSA

Summary of Contents for Flagro FLE-60CSA

  • Page 1 OPERATING INSTRUCTIONS MANUAL FLE-60CSA INDUSTRIAL / COMMERCIAL ELECTRIC HEATER (OPERATOR MUST RETAIN FOR FUTURE REFERENCE) Suitable for indoor or outdoor installation / Unvented / Unattended Type 26 Benfield Drive, St.Catharines, Ontario Canada L2S 3V5 (P) 905-685-4243 - (F) 905-685-0113...
  • Page 2 FLE-60CSA OPERATING INSTRUCTIONS MANUAL GENERAL HAZARD WARNING: FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION BURN ASPHYXIATION, OR ELECTRICAL SHOCK...
  • Page 3 Introduction You have just received an FLE-60CSA 60kW Electric Construction Heater manufactured by Flagro Industries. Use: The FLE-60CSA Electric Construction Heater is designed for temporary heat only. The heater may be installed indoors or out and used to bring 100% outdoor air, or heat and re-circulate building air.

  • Page 4: Maintenance

    MAINTENANCE Every heater should be inspected before each use, and at least annually by a qualified service person The appliance must be kept clear and free from combustible materials, gasoline and other flammable vapors and liquids The flow of ventilation air must not be obstructed. Be sure to check the fan assembly and ensure the motor and blade are operating properly and it is important to clean air filters Compressed air may be used to keep components free of dust and dirt...

  • Page 5: Start-Up Instructions

    START UP INSTRUCTIONS Determine power source - 575V (confirm power source is correct) Remove top cover and inspect all wiring (once complete, secure top cover to heater using the same hardware) Connect Flanged Camlocks to female camlocks ( colour coded) Connect camlocks as follows: Black Blue...
  • Page 6 Notes: Speed inverter is pre-set for optimum air flow/temperature rise. Based on kW selection, blower will adjust speed. See Chart below HEAT SETTING BTUH TEMP. RISE NOISE RATING 60 kW 205,000 3300 110DEG F/43DEG C 67 DB 40 kW 164,000 2800 85DEG F/30DEG C 63 DB...

  • Page 7: Part Description

    PARTS LIST FOR FLE-60CSA Part Number Part Description FLE-601A 60KW RESISTOR ELEMENT (575 VOLT) FLE-602 FAN BLADE ASSEMBLY FLE-603A 1-1/2 HP MOTOR (575 VOLT) FLE-604A VARIABLE SPEED DRIVE FOR FLE-60 (575 VOLT) FLE-605A WIRED CONTROL/OPERATOR PANELS (575 VOLT) FLE-606 ADJUSTABLE MOTOR BASE FLE-607 7"...
  • Page 8 FLE-624 CONTACTOR - 65A 3P FLE-625 CONTACTOR - 32A 3P FLE-626 DAYTON CUBE RELAY (TWO REQUIRED) FLE-627A 575 VOLT TRANSFORMER FLE-628 60 AMP CLASS T FUSE (THREE REQUIRED) FLE-629 30 AMP CLASS T FUSE (THREE REQUIRED) FLE-630 5 AMP CLASS CC TIME DELAY (THREE REQUIRED) FLE-631 1/2 AMP CLASS CC TIME DELAY (TWO REQUIRED) FLE-632...
  • Page 9 FLE-60– PARTS LIST 60KW RESISTOR ELEMENT FAN BLADE ASSEMBLY 1.5 HP MOTOR FLE-601A FLE-602 FLE-603A (575 VOLT) (575VOLT) VARIABLE SPEED DRIVE FAN BELT PULLEYS FLE-608 – 3.25” PULLEY FLE-604A FLE-620 FLE-607 – 7” PULLEY (575 VOLT) FUSES TRANSFORMER GROUNDING BLOCK FLE-628 - 60 amp class T FLE-629...

  • Page 10: High Limit

    FLE-60 PARTS LIST CONTACTORS HIGH LIMIT RELAY FLE-625 – 32A 3P FLE-626 FLE-623 ( 200F) FLE-624 – 65A 3P (2 PER UNIT) 2 POSITION SWITCH EMERGENCY STOP BUTTON SAIL SWITCH FLE-633 20KW 40KW THERMOSTAT/MANUAL FLE-641 FLE-634 BLOWER ON/OFF GREEN AIR PROVEN LIGHT HIGH LIMIT/AIR PROVEN LIGHT THERMOSTAT FLE-636...
  • Page 11 FLE-60 PARTS LIST N/C CONTACT BLOCK N/O CONTACT BLOCK CAM-LOCK DETACHABLE FLE-615 – BLUE FLE-616 – BLACK FLE-640A FLE-617 – GREEN FLE-639A (7 PER UNIT) FLE-618 - RED (3 PER UNIT) CAM-LOCK - PANEL WHEELS SNAP COVERS - PANEL FLE-611 – BLUE FLE-611A –...

  • Page 12: Body Panels

    BODY PANELS DESCRIPTION FEH-60FR OUTER FRAME FEH-616 TOP PANEL FEH-611C LEFT SIDE PANEL FEH-610C RIGHT SIDE PANEL FEH-612C FRONT PANEL FEH-614 REAR SIDE PANEL FLE-170 CONTROL PANEL RAIN GUARD...
  • Page 13 +LOT1 (Operator Panel) 64'' 36'' (.0120) (.0124) SEW-2 SEW-2 SEW-2 MASTER PULL 10 AWG 12 AWG 12 AWG 0120 0122 0100 0130 22'' 22'' AIR FLOW 60 KW 40'' 40'' 34'' 16'' SEW-2 SEW-2 16'' 16 AWG 16 AWG 16 AWG 16 AWG 14 AWG 14 AWG...
