- Page 2 ______ Index Package Contents Mount Outside Magnetic Antenna STEP 1: Mount Inside Antenna STEP 2: Connect Coax Cables To Booster STEP 3: Connect Power Supply To Booster STEP 4: Plug Power Adapter Into Vehicle’s Power Supply STEP 5: Light Patterns Troubleshooting Safety Guidelines Specifications...

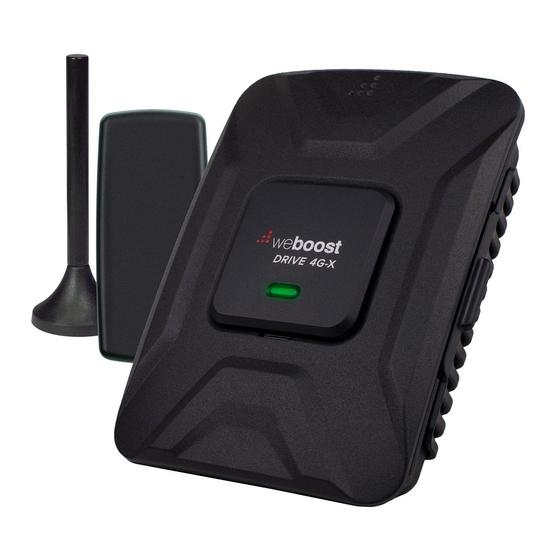

- Page 3 ________ Package Contents Outside Inside Power Booster Antenna Antenna Supply & Bracket DRIVE 4G-X VEHICLE SIGNAL BOOSTER...
-
Page 10: Light Patterns
______ Light Patterns Solid Green This indicates that your booster is functioning properly and there are no issues with installation. Blinking Red, Then Solid Green This indicates that one or more of the booster bands has reduced power due to a feedback loop condition called oscillation. This is a built in safety feature to prevent harmful interference with a nearby cell tower. -
Page 11: Troubleshooting
______ Troubleshooting FIXING BLINKING OR SOLID RED ISSUES This section is only applicable if the booster is red or blinking red and you are not experiencing the desired signal boost. Unplug the Booster’s power supply. Relocate the inside and outside antenna further from each other. The objective is to increase the separation distance between them, so that they will not create this feedback condition discussed before. -
Page 12: Safety Guidelines
______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. Any antenna used with this device must be located at least 8 inches from all persons. FCC requires to never use the cell phone in the cradle next to your ear. This is a CONSUMER device. -
Page 14: Year Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by weBoost. - Page 15 Notes support.weboost.com 866.294.1660 NEED HELP? DRIVE 4G-X VEHICLE SIGNAL BOOSTER...
- Page 16 3301 East Deseret Drive, St. George, UT 866.294.1660 www.weboost.com support.weboost.com Copyright © 2017 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000076_Rev01_03.21.18...
