Contents:
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
How It Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Vehicle Installation Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Install The Outside Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Power Up The Wilson Electronics Sleek 4G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Adjusting The Sleek 4G Arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Understanding The Sleek 4G Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
In-Building Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
About Wilson Electronics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Signal Booster Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
To boost your phone's signal power, the phone must be placed in the Sleek 4G cradle . For best
results, use a Bluetooth
headset or hands free device, while the phone remains in the Sleek 4G .
®
Note: This manual contains important safety and operating information . Please read and follow the
instructions in this manual . Failure to do so could be hazardous and result in damage to your Sleek .
Appearance of device and accessories may vary .
®

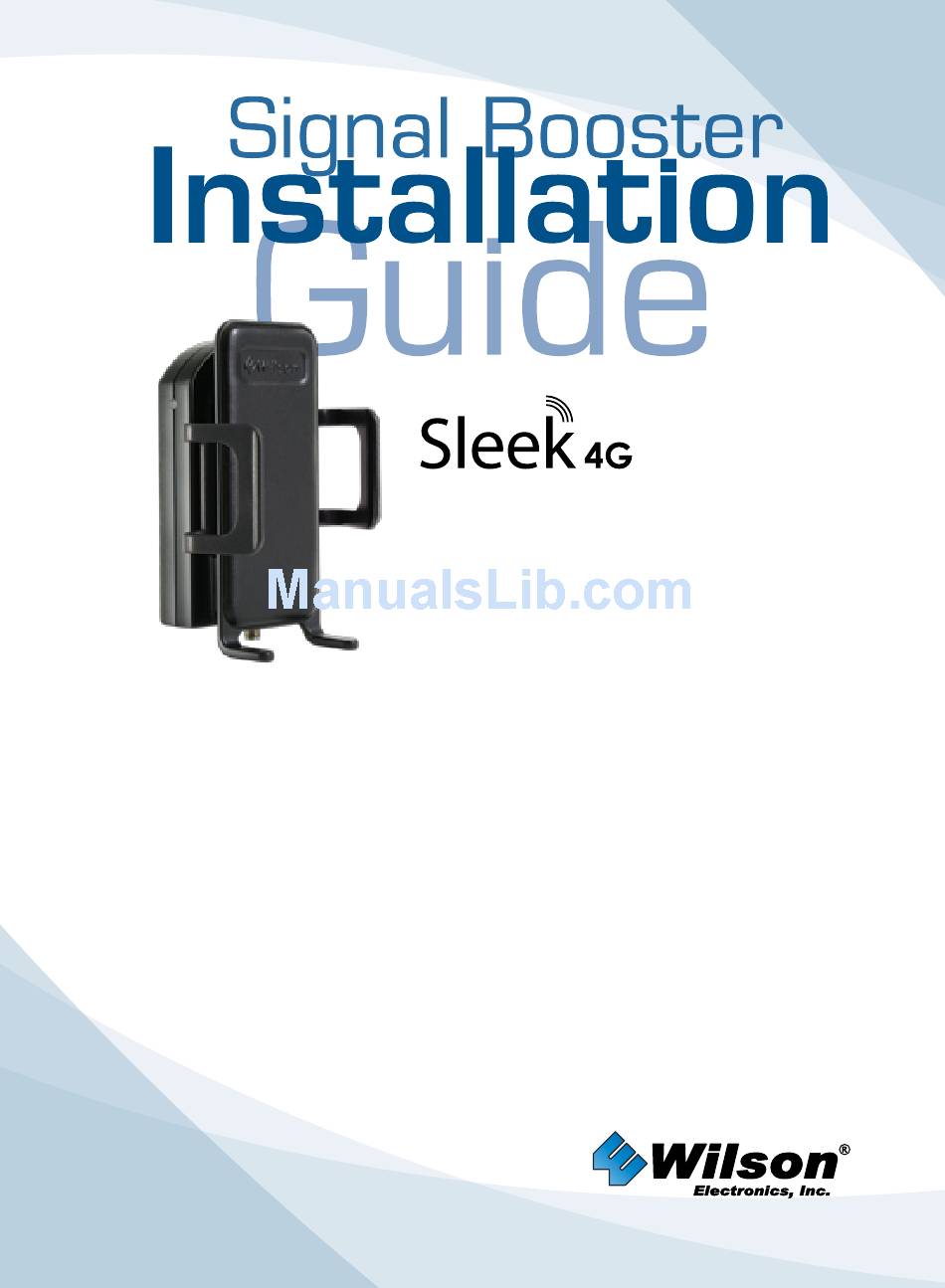

Cell Phone Signal Booster with Built-in Antenna
U .S . Patent Nos . – D626,953; 7,684,838; 7,221,967; 7,729,669;
7,486,929; 7,729,656; 7,409,186; 7,783,318
Advertisement
Table of Contents
Related Manuals for Wilson Electronics Sleek 4G
Summary of Contents for Wilson Electronics Sleek 4G
- Page 1 Signal Booster Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover To boost your phone’s signal power, the phone must be placed in the Sleek 4G cradle . For best results, use a Bluetooth headset or hands free device, while the phone remains in the Sleek 4G .
-
Page 2: Accessories
. Together with an Outside Antenna, the Sleek’s state-of-the-art circuitry is designed to increase your phone’s signal to and from the cell tower . The Sleek 4G reduces disconnects and dropouts and increases data communication rates on 2G, 3G and 4G networks . -
Page 3: How It Works
Outside Antenna collects the cell tower signal and sends it through the cable to the Sleek 4G . The signal is then boosted by the Sleek 4G and sent to the phone . When the phone transmits, the signal is picked up wirelessly and boosted by the Sleek 4G and transmitted back to the cell tower through the Outside Antenna . - Page 4 Once you have installed the bracket in the desired location, and waited 24 hours for adhesive to cure, at- tach the Sleek 4G by aligning the rectangular hole on its back with the tab on the mount bracket, grasping Sleek 4G Top View the sides of the Sleek 4G, and sliding it downward approximately ¼...
-
Page 5: Troubleshooting
Oscillation can occur when the roof mounted antenna is too close to the Sleek 4G inside the vehicle . An oscillation (or feedback) in the Sleek 4G is similar to when a microphone is too close to a speaker in sound system, resulting in a loud whistle . -
Page 6: In-Building Installation
Signal Booster in a Building ® The Wilson Electronics Sleek 4G may be placed in any convenient indoor location, such as a desk or tabletop . The cell phone or data card must be in the cradle and use a Bluetooth headset or wired hands ®... -
Page 7: Warnings
Signal Boosters improve network cell phone areas without compromising carrier systems . All products are engineered and assembled in the company’s 55,000-square-foot headquarters in St . George, Utah . Wilson Electronics has product dealers in all 50 states as well as in countries around the world . - Page 8 Returned Material Authorization (RMA) number supplied by Wilson Electronics . Wilson Electronics shall, at its option, either repair or replace the product . Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U .S .
