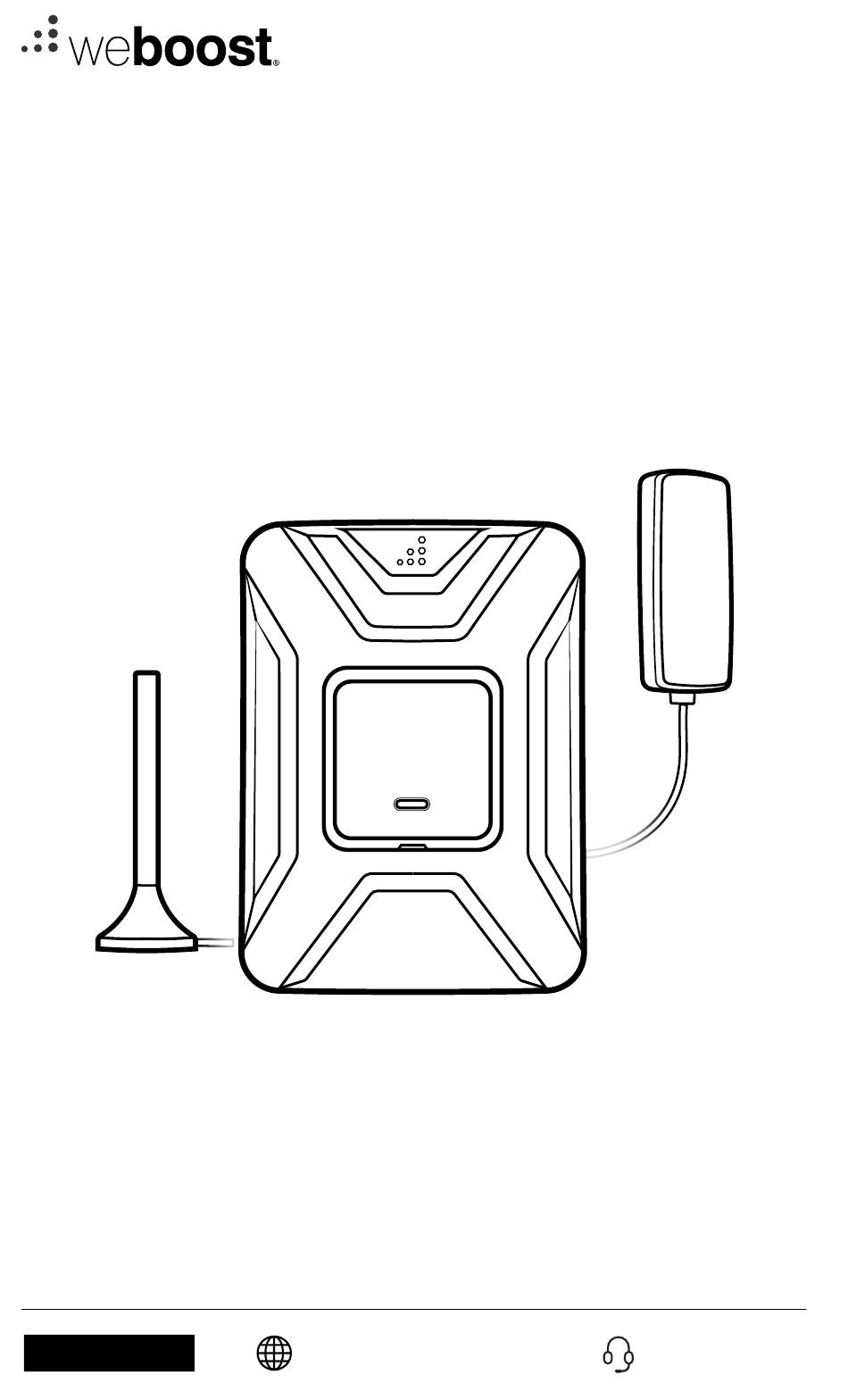

- Page 1 A WILSON ELECTRONICS BRAND DRIVE X Vehicle Signal Booster Kit Installation Guide support.weboost.com 866.294.1660 NEED HELP?
- Page 2 ______ Index Package Contents Mount Outside Magnetic Antenna STEP 1: Mount Inside Antenna STEP 2: Connect Coax Cables To Booster STEP 3: Connect Power Supply To Booster STEP 4: Plug Power Adapter Into Vehicle’s Power Supply STEP 5: Light Patterns Troubleshooting Safety Guidelines Specifications...
- Page 3 ________ Package Contents Outside Inside Power Booster Antenna Antenna Supply & Bracket Optional: Adhesive disk for aluminum vehicles DRIVE X VEHICLE SIGNAL BOOSTER...
- Page 4 ______ Step 1: Mount Outside Magnetic Antenna Identify a location on the top of your vehicle that is: • Near the center of the roof • At least 12 inches away from any other antennas and from any windows (including sunroofs) Cle an the surface where you will place the outside antenna.
- Page 5 ______ (STEP 1 cont.) See options below on how cable can be routed with different vehicles. NOTE: The cable is strong enough that it may be shut in most vehicle doors without damaging the cable. Car/Sedan: Cable routed into rear side door. NOTE: When going through car wash, remember to remove your antenna.
-
Page 6: Step 2: Mount Inside Antenna
______ Step 2: Mount Inside Antenna Identify a place to mount the In-Vehicle Antenna, either on the side of the seat or on the dash and mount. The location should be at least 18 inches but no more than 36 inches from where the cell phone device will be used. - Page 7 ______ Step 3: Connect Coax Cables To Booster Connect the cable from the Mini-Mag Mount Antenna to the port labeled “Outside Antenna” on the Drive X booster. NOTE: Bracket can be used to fasten booster in a specific location if desired. from Outside Antenna Connect the cable from the In-Vehicle Antenna to the port labeled “Inside Antenna”...
- Page 8 ______ Step 4: Connect Power Supply To Booster Connect the power supply cord to the end of the Drive X labeled “Power.” NOTE: Do NOT connect the power to the Signal Booster until you have connected both the Inside and Outside Antennas. Power Supply VEHICLE SIGNAL BOOSTER DRIVE X...
-
Page 9: Need Help
______ Step 5: Plug Power Adapter Into Vehicle’s Power Supply Plug the power adapter into vehicle’s 12V DC power supply. Power up your Drive X by flipping the switch on the back of the DC power adapter on. If your Drive X is working correctly, the light on the power adapter will be red, and the light on the booster will be green. -
Page 10: Light Patterns
______ Light Patterns Solid Green This indicates that your booster is functioning properly and there are no issues with installation. Blinking Red, Then Solid Green This indicates that one or more of the booster bands has reduced power due to a feedback loop condition called oscillation. This is a built in safety feature to prevent harmful interference with a nearby cell tower. -
Page 11: Troubleshooting
______ Troubleshooting FIXING BLINKING OR SOLID RED ISSUES This section is only applicable if the booster is red or blinking red and you are not experiencing the desired signal boost. Unplug the Booster’s power supply. Relocate the inside and outside antenna further from each other. The objective is to increase the separation distance between them, so that they will not create this feedback condition discussed before. -
Page 12: Safety Guidelines
______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. All inside antennas must have at least 1.5’ separation distance from all active users. RF Safety Warning: Any antenna used with this device must be located at least 8 inches from all persons. -
Page 13: Specifications
______ Specifications Drive X Product Number U471010 Model Number 460021 FCC ID: PWO460021 Connectors SMA-Female Antenna Impedance 50 Ohms Frequency 699-716 MHz, 729-756 MHz, 777-786 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755 MHz/2110-2155 MHz Maximum Power 700 MHz 700 MHz 800 MHz 1700 MHz 1900 MHz Power output for single cell... -
Page 14: Year Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by weBoost. - Page 15 Notes support.weboost.com 866.294.1660 NEED HELP? DRIVE X VEHICLE SIGNAL BOOSTER...
- Page 16 3301 East Deseret Drive, St. George, UT 866.294.1660 www.weboost.com support.weboost.com Copyright © 2017 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000190_Rev01_09.19.19...
