Summary of Contents for Wilson Electronics Signal 4G SmarTech III
-

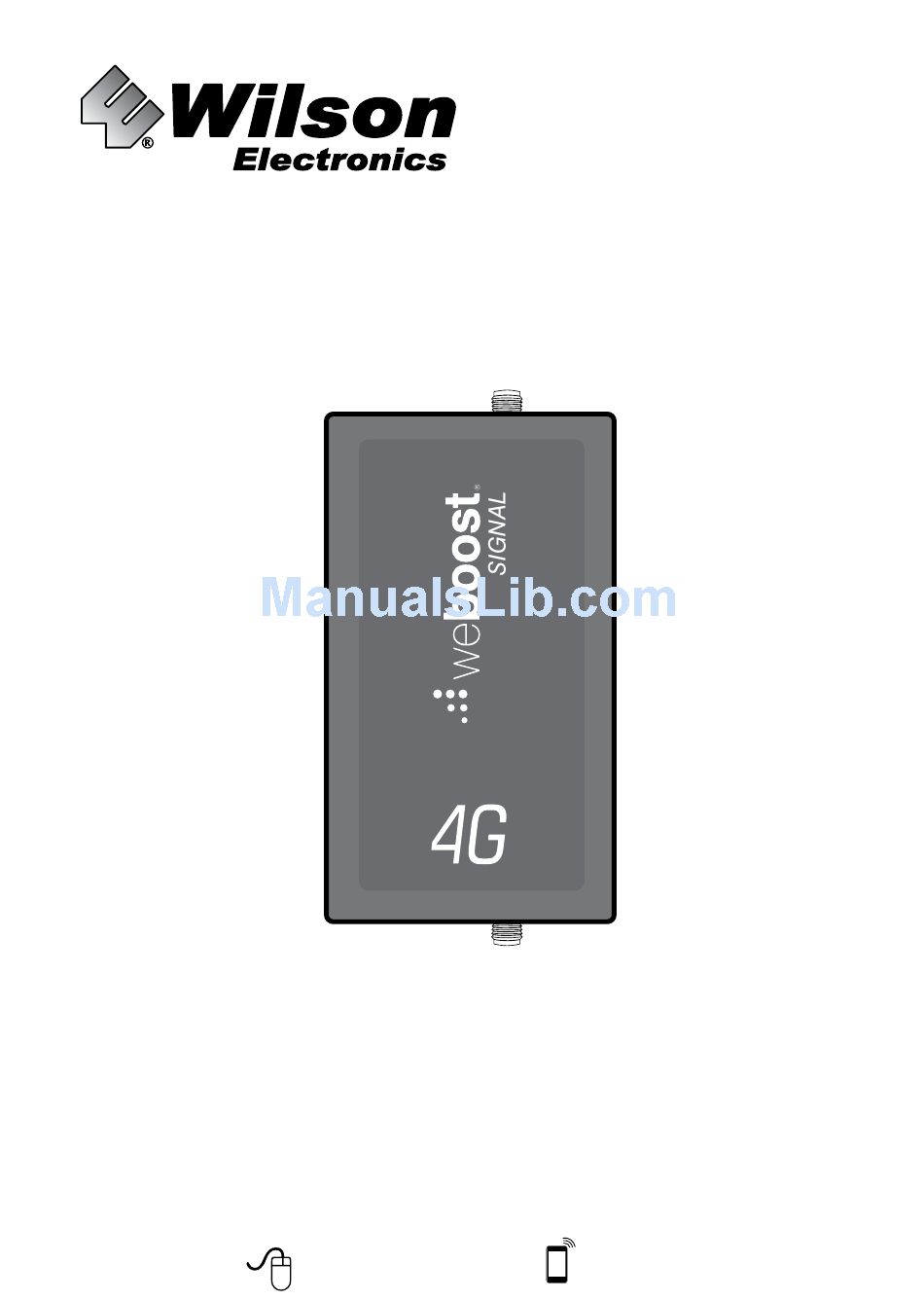

Page 1: Package Contents
Signal 4G Tech Support 866-294-1660 Need help? www.WilsonElectronics.com Mon.- Fri. Hours: 7 am to 6 pm MST... -
Page 2: Table Of Contents
Outside Antenna Male to SMA Male STRIKE. (859948) (460025) (301126) (951151) Optional Accessories and Antennas Installation Instructions for the Following Wilson Electronics Signal Booster: Signal 4G SmarTech Signal Booster ® Lightning DC Plug-In 5.5V/2A Power Model #460025 FCC ID: PWO460025 IC: 4726A-460025 5V/1.5A DC Hardwire... -
Page 3: Installation Diagram
Installation Diagram Select a location to install the Signal Fixing Red Light Issues Booster that is away from excessive (Figure 1) If one or more lights on the Signal Boost are red: heat, direct sunlight, moisture and Make sure all connections are tight. that has proper ventilation. -
Page 4: Warnings And Recommendations
The information provided by Wilson Electronics, LLC is believed to be complete and accurate. However, no responsibility is assumed by Wilson Electronics, LLC for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use. -
Page 5: Signal Booster Specifications
Signal Booster Specifications Signal 4G Model Number 460025 Connectors Antenna Impedance 50 Ohms Frequency 698-716 MHz, 746-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz Band12/17 Band13 1700/2100 1900 Passband Gain (typical) 11.0 10.0 10.0 10.0 10.0 Band12/17 Band13 1700/2100 1900 20 dB Bandwidth (MHz) Maximum 36.3...
