How to install and configure Option DPW
10
b. Pull out the handle located at the bottom of the supply. (See Figure 2.)
c. While pushing the retaining latch to the left, use the handle to pull the
Power Supply module out of the instrument.
3. Insert the replacement supply into the instrument until it latches into place.
4. If necessary, push the handle of the supply into the storage position.
5. Connect the power cable to the Power Supply module you installed.
6. Check that the status of the Power Supply module you just installed is bright
green or dim green.
7. If desired, change the preferred supply configuration. (See page 11, Configure
the preferred (active) supply.)

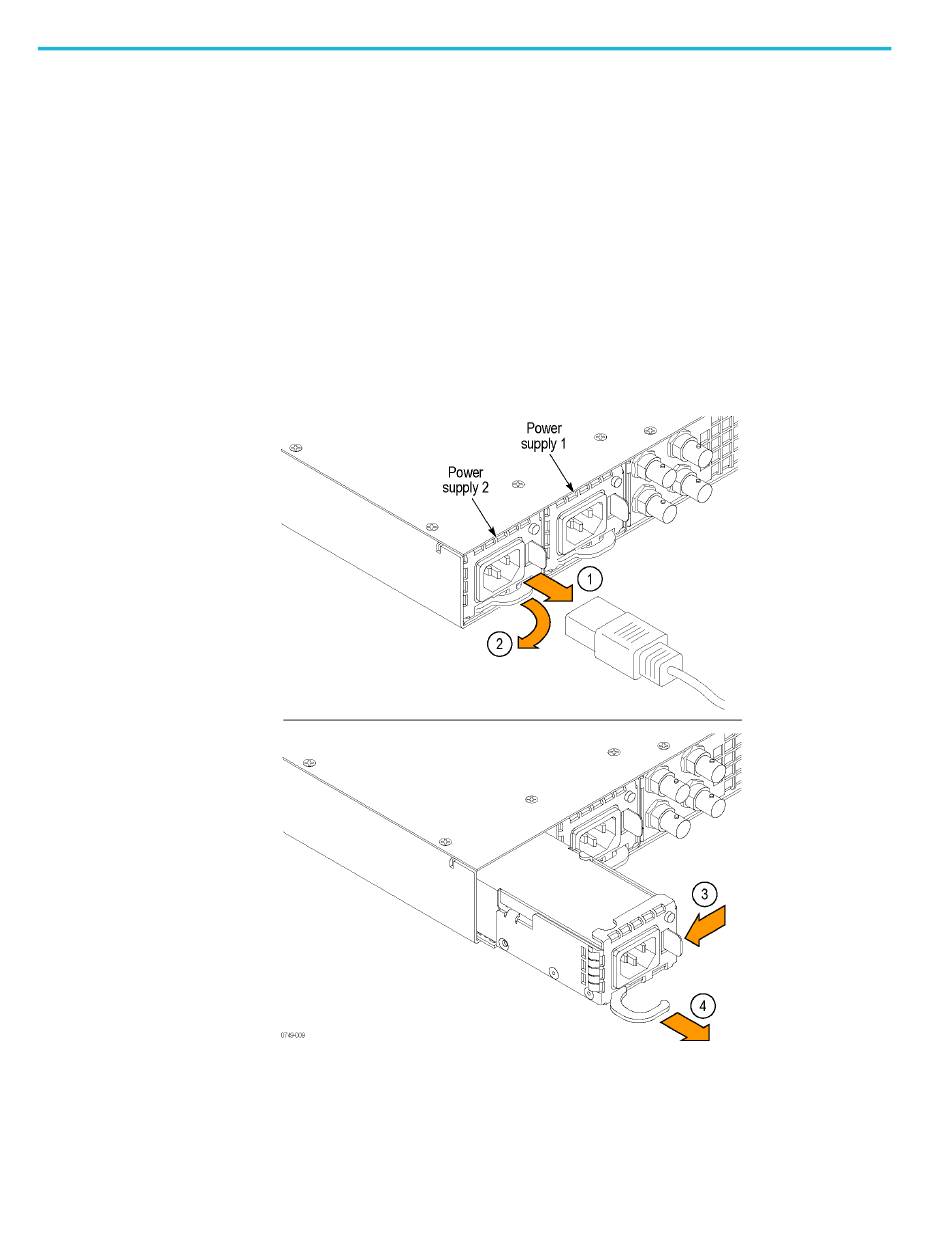

Figure 2: Removing an installed Power Supply module
