Page 1 SPG700 Multiformat Reference Sync Generator User Manual *P077122502* 077-1225-02...
Page 3 SPG700 Multiformat Reference Sync Generator User Manual Register now! Click the following link to protect your product. ► www.tek.com/register This document supports ﬁrmware version 3.0 and above. www.tek.com 077-1225-02...
Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
Page 5: Table Of Contents
How to operate an instrument with two power supplies (Option DPW only) ......Power supply status................... To conﬁgure the preferred (active) supply ..............To hot-swap a Power Supply module............... How to use Stay Genlock ..................® About Stay Genlock ..................® SPG700 User Manual...
Page 6 SDI picture ﬁle generation ................... SDI Zone plate signals ..................Zone plate dependent parameters ................. Status menu ...................... System menu ..................... Status submenu....................Presets submenu .................... General Settings submenu ................. SNMP Settings submenu................... GPI Settings submenu ..................Options submenu ................... SPG700 User Manual...
Page 7 BLACK button menu diagrams ................EMBED button menus (Option SDI only) ............... LTC button menus ..................REF button menus ..................SDI button menus (Option SDI only) ..............STATUS button menus ..................SYSTEM button menu ..................TIME button menus ..................Index SPG700 User Manual...
Page 8 Figure 1: Time ﬂow block diagram................Figure 2: Example SPG700 Web User Interface window............Figure 3: Example FTP view of the SPG700 ﬁle structure ........... Figure 4: Example FTP error message when ﬂash memory is full........... Figure 5: File structure for installing custom user ﬁles ............
Page 9: Figure 8: Aes Button Menu Diagram
Figure 75: SDI button – SDI OVERLAY CIRCLE submenu diagram ........Figure 76: SDI button – SDI Overlay BURNT-IN TIMECODE submenu diagram ..... Figure 77: SDI button – SDI TIMING submenu diagram ..........Figure 78: SDI button – SDI TIMECODE submenu diagram..........SPG700 User Manual...
Page 10 Figure 102: TIME button – TIME OF DAY submenu diagram ..........Figure 103: TIME button – DST SCHEDULE submenu diagram......... Figure 104: TIME button – PROGRAM TIME submenu diagram ........Figure 105: TIME button – JAM SYNC submenu diagram ..........SPG700 User Manual...
Page 11 Table 24: Standard SDI test signal sets ................. Table 25: Enhanced SDI test signal sets ................ Table 26: Zone plate pattern control parameters ............... Table 27: System button menu factory default settings ............. Table 28: TIME button menu factory default settings............SPG700 User Manual...
Page 12: Important Safety Information
See instructions for the location. Do not position the equipment so that it is difﬁcult to operate the power cord; it must remain accessible to the user at all times to allow for quick disconnection if needed. viii SPG700 User Manual...
Page 13 Provide a safe working environment. Always place the product in a location convenient for viewing the display and indicators. Be sure your work area meets applicable ergonomic standards. Consult with an ergonomics professional to avoid stress injuries. Use only the Tektronix rackmount hardware speciﬁed for this product. SPG700 User Manual...
Page 14: Service Safety Summary
Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. Verify safety after repair. Always recheck ground continuity and mains dielectric strength after performing a repair. SPG700 User Manual...
Page 15: Terms In This Manual
ﬁnd out the nature of the potential hazards and any actions which have to be taken to avoid them. (This symbol may also be used to refer the user to ratings in the manual.) The following symbol(s) may appear on the product: SPG700 User Manual...
Page 16: Environmental Considerations
This symbol indicates that this product complies with the applicable European Union requirements according to Directives 2012/19/EU and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the Tektronix Web site (www.tek.com/productrecycling). Battery recycling. This product contains a small installed lithium metal button cell.
Page 17: Preface

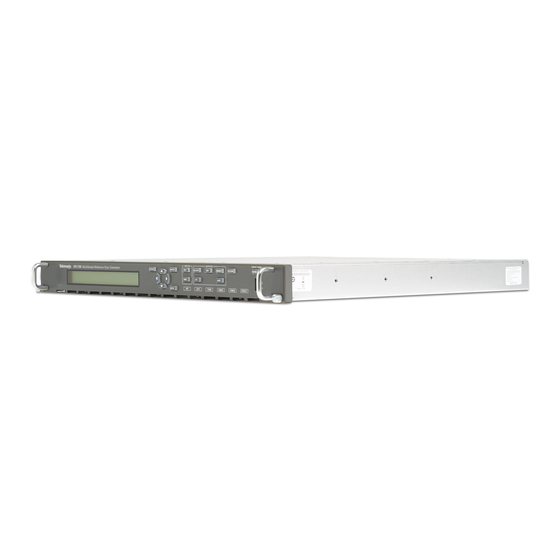

Product description The SPG700 is a precision multiformat video signal generator, suitable for master synchronization and reference applications. It provides multiple video reference signals, such as black burst, HD tri-level sync and serial digital test patterns, and provides time reference signals such as time code.
Page 18 Preface Test signal outputs The SPG700 can be optionally conﬁgured with a variety of test signal outputs. Option SDI adds two fully independent serial digital video generator channels of two outputs each. Each channel can be conﬁgured to any standard SD/HD/3G-SDI format and frame rate.
Page 19: Methods Of Operation
Video equipment veriﬁcation, facility link testing, and display calibration Methods of operation This instrument can be operated using either the front panel or the SPG700 Web Interface. It is recommended that you use the SPG Web Interface to operate the instrument since it is easier to use and more intuitive.
Page 20: Product Documentation
Describes the new features, improvements, and limitations of the instrument ﬁrmware SPG70UP Upgrade 075-1093-xx Provides instructions for upgrading Instructions your SPG700 instrument Video Sync Pulse 077-0563-xx (ECO422D) Provides information for system Generator and Electronic integrators who are designing 077-0877-xx (ECO8000, ECO8020) Changeover Unit System systems for high-deﬁnition (HD) and...
Page 21: System Timing
System timing Frame reset signals The SPG700 uses the three frame reset signals described below to output different video formats simultaneously. FRAME RESET 1 This frame reset signal runs at 2.997 Hz and supports the 1/1.001 system signal, and is used by the following video formats. These signals are synchronized with each other.
Page 22: Figure 1: Time Flow Block Diagram
System timing Figure 1: Time ﬂow block diagram SPG700 User Manual...
Page 23 0:00:00 January 1, 1958. Proposed standard SMPTE 404M deﬁnes the SMPTE Epoch at that same moment. There are exactly 8040 days and 19 leap seconds between the SMPTE Epoch (TAI) and the GPS Epoch. SPG700 User Manual...
Page 24 The timing offset range and resolution depend on the signal. See the speciﬁc output menu for details. Time Zone Offset *. The SPG700 has a selectable offset between UTC and the local time, usually representing the local time zone. This offset can be speciﬁed in hours+minutes+seconds, allowing speciﬁcation of time zones that...
Page 25 DST Change *. Daylight Saving Time (DST) changes twice a year in many time zones, but some locations do not observe daylight savings time. The SPG700 has a user programmable DST adjustment to the time zone offset that is made by adding or subtracting a speciﬁed amount from the current time setting.
Page 26 Black within the pre-program leader. GPI Out. The instrument has two General Purpose Interface (GPI) outputs, either of which may be conﬁgured to begin when the program time matches a speciﬁed alarm time. SPG700 User Manual...
Page 27: Web User Interface
Enter the IP address of the instrument in a supported Web browser to open the SPG700 Web Interface. (See Figure 5.) Click the various tabs to access the instrument settings and controls as you would using the front panel buttons.
Page 28: Elements Of The Web User Interface
NOTE. A red exclamation mark next to a menu item indicates that an alert exists. Click the item to view the alert details. Figure 2: Example SPG700 Web User Interface window SPG700 User Manual...
Page 29: Table 1: Elements Of The Web User Interface
The system settings includes Status, Presets, General Settings, SNMP Settings, GPI Settings, Options, and Diagnostics submenus. Click on the arrow next to the desired setting group to access the submenu for that group. For more information, see the System menu section. (See page 109.) SPG700 User Manual...
Page 30 For information about the possible states for each indicator, see the SPG700 Installation and Safety Instructions. Click on Help to open a separate browser window that opens to the Tektronix SPG product Web page. Click on Refresh to refresh the Web user interface.
Page 31: Snmp Remote Control
SNMP remote control When the SPG700 is connected to an Ethernet network, you can conﬁgure the instrument to send SNMP traps to an NMS (Network Management Station) when certain errors are detected. If you intend to use SNMP commands to control the instrument, you must conﬁgure SNMP parameters.
Page 32: Download The Mib
You can download the SPG8000 MIB ﬁle from the SNMP Settings submenu under the System menu. (See page 114, SNMP Settings submenu.) The SPG8000, SPG8000A, and SPG700 share the same MIB ﬁle. Some of the commands in the ﬁle will apply to features and functions available only on the SPG8000 and SPG8000A.
Page 33: How To Backup/Restore Presets And User Data
USB drive. The restore operation expects to copy ﬁles from this same directory. All of the copy operations will create new directories/ﬁles on either the SPG700 or the USB drive as needed. If a ﬁle with the same name exists in the destination location, it will be overwritten.
Page 34: Memory Requirements
When all of the user data is copied, every user ﬁle except for the FPGA conﬁguration ﬁles will be copied. This function is useful in that all user-created ﬁles can be saved, restored, or copied to other SPG700 instruments. User ﬁles are deﬁned as any ﬁle that exists in the /app/F0 directory on the instrument.
Page 35: Backup/Restore Procedure
If the USB drive or the ﬂash memory on the instrument ﬁlls up before the backup or restore operation completes, an error message is displayed. Press the ENTER or BACK button to clear the error message. (See page 14, Memory requirements.) SPG700 User Manual...
Page 36 10. Press the ENTER button to unmount the USB drive. After the message “You may now safely remove the USB drive” is displayed, the menu readout should change to System : USB (Not mounted). 11. Remove the USB drive from the instrument. SPG700 User Manual...
Page 37: How To Transfer Or Install User Files
Perform the following steps to transfer or install user ﬁles using FTP: 1. Connect the instrument to your local Ethernet network or to a standalone Windows PC. See the SPG700 Installation and Safety Instructions for information about installing the instrument on a network.
Page 38: Figure 3: Example Ftp View Of The Spg700 File Structure
How to transfer or install user ﬁles Figure 3: Example FTP view of the SPG700 ﬁle structure 5. Use Windows Explorer to drag and drop user ﬁles to or from the instrument. CAUTION. If you are installing custom signal ﬁles on the instrument such as test signals or logo and ID text overlays, the signal ﬁles must be installed in the...
Page 39: To Transfer Or Install User Files Using A Usb Drive
You can use a USB drive connected to the USB port on the front of the instrument to transfer or install user ﬁles. To transfer user ﬁles from Perform the following steps to transfer user ﬁles from an SPG700 generator to a USB drive: an instrument to a USB drive 1.
Page 40 File structure required to install custom user ﬁles.) 1. Insert a USB memory device containing the user ﬁles you want to install on the SPG700 generator into the USB port on the front of the instrument. 2. Verify that the USB device is properly installed: a.
Page 41 ﬁles must have a .xml ﬁle name extension. TEXT – Use this directory to install only ID text overlay ﬁles. The ID text ﬁles must have a .txt ﬁle name extension. (See page 72, ID Text overlay settings.) SPG700 User Manual...
Page 42: Figure 5: File Structure For Installing Custom User Files
How to transfer or install user ﬁles The following ﬁgure shows how the required directory structure for installing custom user ﬁles looks using Windows Explorer. Figure 5: File structure for installing custom user ﬁles SPG700 User Manual...
Page 43: How To Upgrade The Instrument Firmware
Installed ﬁrmware version number 2. Verify the latest version of software at the Tektronix Web site: a. On a computer, use a Web browser to navigate to the following Tektronix Web site: www.tek.com/downloads. b. On the Downloads Finder Web page, search by model number (such as SPG700) and ﬁlter by software and software type to locate the...
Page 44 Connect the instrument and computer to your local Ethernet network. See the SPG700 Installation and Safety Instructions for information about installing the instrument on a network. b. Press the SYSTEM button to access the SYSTEM menu.
Page 45: Firmware Upgrade Overview
3. On the USB device, create a directory named SpgUpgrd. CAUTION. To prevent upgrade failure, be sure to correctly name the upgrade directory. The directory name is case sensitive, with the “S” and the “U” in SpgUpgrd being upper case. SPG700 User Manual...
Page 46 ENTER button. A conﬁrmation message is displayed as shown below. NOTE. If the instrument displays the message ERROR: SpgUpgrd/ﬁrmware.pkg not found, make sure you have the correct directory path on the USB device and then restart this procedure at step 6. SPG700 User Manual...
Page 47 (Mounted), and then press the ENTER button. c. Remove the USB device from the instrument when the message You may now safely remove the USB drive appears. 16. Proceed to Verify the ﬁrmware upgrade and reinstall user ﬁles. (See page 30.) SPG700 User Manual...
Page 48: Network Firmware Upgrade
Use the following steps to upgrade the instrument ﬁrmware using a network connection: 1. Connect the instrument and a Windows PC to your local Ethernet network or directly connect the instrument to a Windows PC. See the SPG700 Installation and Safety Instructions for information about installing the instrument on a network.
Page 49: Figure 6: Sample Of Transfer.exe Window After The Upgrade Is Complete
Figure 6: Sample of transfer.exe window after the upgrade is complete 4. If the instrument does not reboot at the completion of the ﬁrmware upgrade, remove and then reconnect the power cable. 5. Proceed to Verify the ﬁrmware upgrade and reinstall user ﬁles. (See page 30.) SPG700 User Manual...
Page 50: Verify The Firmware Upgrade And Reinstall User Files
4. Press the left (◄) or right (►) arrow button to select a network speed (10BaseT, 100BaseT, or 1000BaseT), and then press the ENTER button. If you do not know your network speed, the 100BaseT selection is recommended. SPG700 User Manual...
Page 51 The upgrade process may take up to 15 minutes to complete. 8. When the upgrade is complete, the instrument should reboot. If it does not, cycle the power. If you continue to experience an upgrade problem, contact Tektronix customer support or your local Tektronix representative for assistance. SPG700 User Manual...
Page 52: How To Operate An Instrument With Two Power Supplies (Option Dpw Only)
Power Supply modules. The rear panel of each Power Supply module has a STATUS LED that matches the status shown on the PWR1 and PWR2 indicators. See the SPG700 Installation and Safety Instructions for information about the power supply status indicators.
Page 53: To Conﬁgure The Preferred (Active) Supply
The following procedure uses the front panel controls on the instrument to conﬁgure the preferred (active) supply. You can also use the System > General Settings submenu in SPG700 Web Interface to conﬁgure the preferred supply. (See page 113, General Settings submenu.) 1.
Page 54 PWR1 and PWR2 indicators on the front panel. 7. If status of the supply is Inactive, press the ENTER button to change the status to Active, Preferred. The front-panel indicator for the selected supply should change to bright green. SPG700 User Manual...
Page 55: To Hot-Swap A Power Supply Module
It is recommended that you conﬁgure the supply with the most temperature weighted hours to be used as the primary preferred supply. This allows for the newer supply to be preserved so it can provide the best possible backup should the primary supply fail. SPG700 User Manual...
Page 56: Figure 7: Removing A Power Supply Module
How to operate an instrument with two power supplies (Option DPW only) Figure 7: Removing a Power Supply module SPG700 User Manual...
Page 57: How To Use Stay Genlock
NOTE. The following procedures use the front panel controls on the instrument to enable Stay GenLock . You can also use the Reference menu in SPG700 Web ® Interface to enable Stay GenLock . (See page 55, Reference menu.) ®...
Page 58 How to use Stay Genlock ® SPG700 User Manual...
Page 59: Aes Menu
Clock (48 kHz) and DARS outputs and to set the signal level of the Word Clock output. NOTE. In the current software release, the SPG700 Web Interface does not support the AES menu. Use the AES button on the front panel to access the menu selections described below.
Page 60: Aes Timing Offset Submenu
You can reset the timing offset to zero by pressing the left (◄) and right (►) arrow buttons simultaneously. You cannot adjust the timing offset when Free Run is selected as the AUDIO-VIDEO SYNC mode. (See page 39, AES menu.) SPG700 User Manual...
Page 61: Aes Menu Factory Default Settings
PRESET submenu to recall the factory default settings. (See page 112, Presets submenu.) Table 3: AES button menu factory default settings Menu item name Settings AUDIO-VIDEO SYNC Free Run 0.0 μsec TIMING OFFSET (Delay or Advance) AES WORD CLOCK OUTPUT 1 Volt (AC) SPG700 User Manual...
Page 62 AES menu SPG700 User Manual...
Page 63: Black Menu
Figure 10: Black menu with the Black 2 submenu expanded NOTE. Black outputs 1–3 are a group that use the same HD tri-level sync rate. When the instrument is in Factory mode, a Calibration menu option is available. See the SPG700 Service Manual for more information. SPG700 User Manual...
Page 64: Black Output Settings
The CW 10 MHz format selection appears only for the Black 3 output. Field Reference This menu item is available only for non-HD formats. Use the drop-down list to select Enable or Disable for the ﬁeld reference on the selected Black output. SPG700 User Manual...
Page 65: Black Timing Settings
± 562 ± 37.0370 ± 10.00 1080 23.98p ± 562 ± 37.0741 ± 10.00 720 60p ± 375 ± 22.2222 ± 10.00 720 59.94p ± 375 ± 22.2444 ± 10.00 720 50p ± 375 ± 26.6667 ± 10.00 SPG700 User Manual...
Page 66: Black Timecode Settings
VITC on NTSC, but if needed, it can be disabled by this menu item. This menu item appears only when NTSC or NTSC-J is set as the signal format for the selected Black output. SPG700 User Manual...
Page 67: Blank On Reference Unlock Settings
Black outputs. The Black outputs 1–3 are a group that must use the same HD tri-level sync rate (integer or non-integer). Use the drop-down list to select either Non-Integer (59.94, 47.95, 29.97, 23.98) orInteger (60, 50, 48, 30, 25, 24). SPG700 User Manual...
Page 68: Black Menu Factory Default Settings
Blank On Reference Unlock Delay 00:00:10 Non-integer Black 1–3: HD Tri-Level Sync These settings appear only for non-HD formats. This setting appears only when the format is set to NTSC. These settings appear only for the Black 2 output. SPG700 User Manual...
Page 69: Embedded Menu (Option Sdi Only)
Set the embedded audio frequency Set the embedded audio amplitude Set the click rate for the selected channel Click Embedded 1 to show the selections for the SDI 1 outputs; clicking Embedded 2 shows the selections for the SDI 2 outputs. SPG700 User Manual...
Page 70: Figure 11: Partial Embedded Menu Diagram
You may have to scroll down the window to see the Secondary Output selection. NOTE. The SPG700 Web Interface has an issue where the column headings in the Embedded menu do not align with their associated columns. The following ﬁgure shows the proper alignment of the column headings.
Page 71 (bottom) BNC connector of the selected SDI output: Tones, No Audio, or Mute Audio. The SDI 1B audio output is the same format and sample structure as the SDI 1A audio output. The same is true for the SDI 2 connectors. SPG700 User Manual...
Page 72: Embedded Menu Factory Default Settings
Audio Click: None Channel Origin: A1-1 through A4-4 Tones Secondary Output The Link B, Group 1–4 settings are available only when the SDI output mode is set to 3G-Level B. (See page 59, SDI menu (Option SDI only).) SPG700 User Manual...
Page 73: Ltc Menu
Program Time. Uses the Program Time counter as the timecode. NOTE. For the Black and LTC outputs, setting the timecode source to Local (DST), Local (No DST), or UTC will cause the ST309 output DST and time zone data to be set to match the selections. SPG700 User Manual...
Page 74: Ltc Menu Factory Default Settings
Table 9: LTC button menu factory default settings Menu item name Settings LTC 1 to LTC 4 Use as Input Not selected (LTC 1 only) Source Local (DST) Offset + 00:00:00:00 Type 30 fps drop frame Level 2.0 V Delay 0.00 msec SPG700 User Manual...
Page 75: Reference Menu
HD Tri-Level Sync. Uses the HDTV trilevel signal applied to the REF input connector as the timing reference. CW. Uses the 1, 3.58, 4.43, 5, or 10 MHz continuous wave signal applied to the REF input connector as the timing reference. SPG700 User Manual...
Page 76: Genlock Timing Settings
± 562 ± 35.5556 ± 10.00 1080 24sF ± 562 ± 37.0370 ± 10.00 1080 23.98sF ± 562 ± 37.0741 ± 10.00 1080 30p ± 562 ± 29.6296 ± 10.00 1080 29.97p ± 562 ± 29.6593 ± 10.00 SPG700 User Manual...
Page 77: Reference Menu Factory Default Settings
Menu item name Settings Reference Internal Source Genlock Timing Vertical: 0.0 Line(s) Horizontal 0.0 μs Loss of Lock Action Stay at current frequency These menu items are not active when the reference source is set to Internal. SPG700 User Manual...
Page 78 Reference menu SPG700 User Manual...
Page 79: Sdi Menu (Option Sdi Only)
SDI 1 or SDI 2 to expand the selections to show the menus for each generator. The menu selections are similar, but independent for each output. The following ﬁgure shows the SDI menu with the SDI 1 submenu expanded. Figure 14: SDI menu with the SDI 1 submenu expanded SPG700 User Manual...
Page 80: Sdi Signal Submenu
(See page 85, How to select an SDI output signal.) SD. Provides a SMPTE 259 compliant signal that runs at 270 Mbps. HD (1920 × 1080). Provides a 1080-line, SMPTE 274M compliant signal. HD (1280 × 720). Provides a 720-line, SMPTE 296M compliant signal. SPG700 User Manual...
Page 81 Signal or Test Signal/Black for the two streams. Format. Use the drop-down list to select the signal format for the selected SDI output. The available format choices depend on the selected Output Mode selection. (See page 86, Available SDI output signals.) SPG700 User Manual...
Page 82 HD (1.485 Gb/s) and SD (270 Mb/s) formats only. Use the drop-down list to set the timing relative to Serial (0H) or Analog (DAC). In the serial mode (default), the output timing does not include compensation for the delay through a nominal D-to-A converter. SPG700 User Manual...
Page 83 2xHD Stream Content. This setting is active only when the signal format is set to 2×HD. It selects the content for the ﬁrst and second HD signals on link A and link B. Use the drop-down list to select Test Signal/Test Signal, Test Signal/Black, or Black/Test Signal. SPG700 User Manual...
Page 84: Sdi Conﬁgure Zoneplate Submenu
(See Table 26 on page 99.) The remaining parameters are zone plate dependent parameters. These are discussed in detail later in this document. (See page 100, Zone plate dependent parameters.) SPG700 User Manual...
Page 85: Figure 17: Conﬁgure Zoneplate Video Menu Selections
A colored zone plate pattern can be created by enabling or disabling individual channels. When the XYZ color space is used, the resultant patterns will show some chroma in all combinations of the X/Y/Z channel settings, due to the inherent encoding of this color space. SPG700 User Manual...
Page 86: Figure 18: Conﬁgure Zoneplate Parameters For All Zone Plate Signals
Waveform. Use this parameter to set the waveform shape. Use the drop-down list to set the waveform to a Sine, Triangle, or Square wave. Save As. Use this parameter to save the setups in one of the custom ﬁles. Select the custom ﬁle from the drop-down list. SPG700 User Manual...
Page 87: Sdi Moving Picture Submenu
Vertical Step. Enter the number of lines to be scrolled per frame set in the Period menu item below. Set the value from –252 to +252 in 1-line steps. Period. Enter the time interval between occurrences of the scrolling. Set the value from 1 to 16 in 1-frame steps. SPG700 User Manual...
Page 88: Sdi Video Submenu
Cr Enable. Select this check box to turn on the Cr component (YCbCr format), R component (GBR format), or Z component (XYZ format) of the serial digital video signal. Clear the check box to disable the Cr component. SPG700 User Manual...
Page 89 1 second then set to Black and muted for 4 seconds. Use this signal to measure the AV delay through a system with the AV Timing mode on an appropriate Tektronix waveform monitor or rasterizer. EDH Enable. (SD output mode only.) Select this check box to turn on the insertion of EDH packets.
Page 90: Sdi Overlay Submenu
The following ﬁgure shows the Overlay submenu. NOTE. You can store overlay functions, including text, in the instrument presets so that the overlay is restored on power up. (See page 112, Presets submenu.) Figure 21: SDI Overlay submenu SPG700 User Manual...
Page 91: Figure 22: Sdi Overlay Logo Settings
25% of the active video for the SD-525 format, but less than 4% of a 1920×1080 picture. Therefore, you might need to choose a bitmap size appropriate for the target display resolution when using the logo overlay. SPG700 User Manual...
Page 92 Unicode characters are used. The text ﬁle can also include embedded newline characters to create text overlays spanning multiple lines. When the string is entered from the front panel, it is limited to 30 characters in length, and can contain only standard ASCII characters. SPG700 User Manual...
Page 93: Figure 23: Sdi Overlay Id Text Settings
The position of the text overlay is referenced from the top left of the active picture. Y Position. Enter the vertical position of the text. The position is set as a percentage of active picture height. You can set the value from 0.0% to 99.0% in 0.1% steps. SPG700 User Manual...
Page 94: Figure 24: Sdi Overlay Circle Settings
You can set the value from -50.0% to 50.0% in 0.1% steps. Diameter. Enter the diameter of the circle. The diameter is set as a percentage of active picture height. You can set the value from 0.0% to 100.0% in 0.1% steps. SPG700 User Manual...
Page 95: Figure 25: Sdi Overlay Burnt-In Timecode Settings
You can set the value from -50.0% to 50.0% in 0.1% steps. Second Line Enable. Select the check box to enable a second line of timecode readout (YY/MM/DD) on the output signal. SPG700 User Manual...
Page 96: Sdi Ancillary Data Submenu
Data Words (UDW) comprise the actual payload carried in the ancillary data. The instrument addresses User Data Words 000 through 254. Ancillary Data Payload The following ﬁgure shows the SDI Ancillary Data Payload settings. settings Figure 26: SDI Ancillary Data Payload settings SPG700 User Manual...
Page 97 Checksum. Use this menu item to set the hex value of the Checksum. You can set the Checksum from 0x00 to 0xFF (in 8-bit mode), or from 0x000 to 0x3FF (in 10-bit mode). If the Auto-Calculate check box is selected, the checksum is calculated automatically. SPG700 User Manual...
Page 98: Figure 27: Sdi Ancillary Data Output Settings
The sample offset is set relative to SAV in order to use standard sample numbering. However, this means that the most normal location at the start of HANC varies as a function of raster size. SPG700 User Manual...
Page 99 ﬂag, L = left bar data ﬂag, and R = right bar data ﬂag. Note that these are all eight-bit values for the respective User Data Word. The instrument will automatically calculate the parity bits when Parity is set to Automatic, which is the default. SPG700 User Manual...
Page 100: Figure 28: Afd Code "1001" For A 16:9 Coded Frame
PAYLOAD Output mode to Continuous to start AFD insertion of the active test signal. For this example, the SMPTE RP 219 color bars are an effective test pattern, because the center section of the 16:9 test signal contains the original 4:3 aspect ratio SMPTE pattern. SPG700 User Manual...
Page 101: Sdi Timecode Submenu
30 DROP Frame Enable. Select this check box to enable or disable the Drop Frame mode for the 30 frame per second timecode format. This menu item is available only when the frame or ﬁeld rate for the current format is 29.97 or 59.94. SPG700 User Manual...
Page 102: Sdi Menu Factory Default Settings
Monitor Black-Dark Gray Step Scale Pulse Bar Color Pulses Timing Co-siting Pulse SDI Matrix Frame Picture No BMP ﬁles found in /SDI7/PICTURE/ Moving Picture Horizontal Step 0 Sample(s) Vertical Step 0 Line(s) Period 1 Frame(s) Random Disable SPG700 User Manual...
Page 103 0.0 % APH Diameter 90.0 % APH Overlay : Burnt-In Timecode Mode Disable X Position 5.0 % APW Y Position 5.0 % APH Disable Second Line Overlay : Blink Text/Circle Blink Overlay : Border Text/Circle Border Enable SPG700 User Manual...
Page 104 0x01 SDID 0x00 0x01 (1) 0x00 0x00 (Auto: 0x202) Auto-Calculate CS Enable Field 1 Only Field 1 Line Field 2 Line Sample Offset 1928 (VANC) Video Channel Luma Link Location Link A Stream Location HD Stream 1 SPG700 User Manual...
Page 105: How To Select An Sdi Output Signal
3. Select the sample structure and depth in the SDI Signal submenu. (See page 60, Signal Standard settings.) 4. Select the test signal that you want to generate in the SDI Signal submenu. (See page 62, Signal Selection setting.) SPG700 User Manual...
Page 106: Table 13: Sdi - 3G Level A (1920 × 1080)
4:4:4 12b Table 16: SDI – 3G Level B (1920 × 1080) Structure 59.94i 50i 60i 23.98p 24p 25p 29.97p 30p 50p 59.94p 60p 23.98psf 24psf 25psf 29.97psf 30psf YCbCr 4:4:4 YCbCr+A YCbCr 4:2:2 YCbCr+A 4:4:4 GBR+A SPG700 User Manual...
Page 107: Test Signal Sets
COLOR BAR signal set, a signal in the Color Bars signal set is output. NOTE. Picture displays operate best with uncompressed BMP images (24 bits and 32 bits true color). Picture displays do not work with RLE8 or RLE4 BMP compression. SPG700 User Manual...
Page 108: Table 24: Standard Sdi Test Signal Sets
(Y) channel. Next, the B−Y Valid Ramp spans from yellow to cyan, across the valid range of the Cb color difference channel. Last, the R−Y Valid Ramp spans from cyan to red, across the valid range of the Cr color difference channel. SPG700 User Manual...
Page 109 (red, green, blue, cyan, magenta, and 75% Magenta Field, 75% Yellow Field yellow). These signals are not part of the factory installed signal sets. You must install the enhanced signal sets to access these signals. (See Table 25 on page 93.) SPG700 User Manual...
Page 110 (4:4:4 and fast-progressive 3G formats only) Three channel pattern with packet frequencies of 15, 18, 21, 24, 27, and 30 MHz. Y Multiburst 35–60 MHz (Fast-progressive 3G formats only) Y channel pattern with packet frequencies of 35, 40, 45, 50, 55, and 60 MHz. SPG700 User Manual...
Page 111 Includes single-pixel wide lines at the extreme edges of the active video area, marking the complete production aperture. Vertical lines are implemented as single-sample pulses with no edge ﬁltering, so this pattern is not legal as a broadcast signal. SPG700 User Manual...
Page 112 Timing Co-siting Pulse One single-sample wide pulse in the center of the image, used to show the timing relationship and alignment between chroma and luma channels. Different amplitudes are used to distinguish the three channels. SPG700 User Manual...
Page 113: Table 25: Enhanced Sdi Test Signal Sets
Includes color ﬁelds for six primary and secondary colors at both 100% and 75% values SMPTE RP431-2 color patches Includes full ﬁeld patterns for each of the Black-White and Black-Dark Gray steps, plus the “–1” and “–2” color patches SPG700 User Manual...
Page 114: Sdi Picture File Generation
If the ﬁle has unshaped edges, then the output may have excessive ringing even when not in motion. If this is a concern, then the picture ﬁle should be processed to have gradual transitions at the edges before it is downloaded. SPG700 User Manual...
Page 115: Sdi Zone Plate Signals
However, if you alter the underlying dependent parameters individually the pattern may change to be something other than a circle. After changes have been made you can save the new signal as a custom zone plate signal. SPG700 User Manual...
Page 116 Since the ZP Amplitude parameter is adjustable for each of these signals, you can measure the response at 100%, 60%, or any other level as needed. These same techniques can be used to measure vertical or diagonal response, by selecting the appropriate zoneplate signal. SPG700 User Manual...
Page 117 5. When you are done changing parameters, go to the Save As: menu item at the bottom of the menu and select either Custom 1 or Custom 2 to save the signal modiﬁcations. SPG700 User Manual...
Page 118 Each standard zone plate signal has a pattern control parameter. (See Table 26.) This pattern control parameter is unique to the zone plate signal it is associated with. SPG700 User Manual...
Page 119: Table 26: Zone Plate Pattern Control Parameters
DC-max-DC sweeps per ﬁeld (sweeps = )/2). For example, in a standard with 1080 lines per ﬁeld, a vertical sweep frequency of 2160 c/aph would result in one complete frequency sweep down the picture. SPG700 User Manual...
Page 120: Zone Plate Dependent Parameters
DC to 10 c/aph from the top of the picture to the bottom. To center the “DC point” at mid-screen, set K to –2 times K The Vertical Sweep zone plate is a “K -only” zone plate. (See Figure 34.) Figure 31: A “K -only” zone plate SPG700 User Manual...
Page 121 For example, K = 9.0 will result in approximately 12 cycles per line in a format with a 4:3 aspect ratio; the same setting will yield about 16 cycles per line when the ratio is 16:9. SPG700 User Manual...
Page 122: Figure 32: A "K X -Only" Zone Plate
The frequency will increase until it reaches the maximum for the active format, then the phase of the signal will “ﬂip” by 180° (the sine wave will become “negative”) and the frequency will continue to “increase” through DC, when the cycle will begin again. SPG700 User Manual...
Page 123 R is the aspect ratio (width ÷ height) of the active format. aspect The Horizontal Sweep zone plate (H Sweep) is a “K -only” zone plate. (See Figure 34.) Figure 33: A “K -only” zone plate SPG700 User Manual...
Page 124 To see the picture effects of this parameter, select any of the standard zone plates and vary K . Note that the K coefﬁcient may be positive or negative; the sign will determine the direction of the pattern’s motion. SPG700 User Manual...
Page 125: Figure 34: A "K Y -Only" Zone Plate
1.0 will result in an apparent K of 10.0 after ten seconds, 20.0 after twenty seconds, and so forth. The temporal frequency will increase to maximum, return to 0.0, and repeat the cycle as long as the value of remains greater than zero. SPG700 User Manual...
Page 126 SDI menu (Option SDI only) SPG700 User Manual...
Page 127: Status Menu
In addition to the LTC status display on the top right of the display, there are indicators to provide a quick view of the instrument status. More information on these indicators is available under the System tab. (See page 109, System menu.) SPG700 User Manual...
Page 128: Figure 36: Ltc Status Display
Type ﬁelds show the format of each signal. If LTC 1 is conﬁgured to be an input, the display shows “Input” as the status for that signal. Click on the heading of each column to quickly go to the related item under the LTC tab. Figure 36: LTC status display SPG700 User Manual...
Page 129: System Menu
The INT, EXT, TIME, PWR1, PWR2, and FAULT indicators on the top right side of the SPG700 Web Interface display provide a quick overview of the system status. If there are any problems, the color of the indicators change (such as red).
Page 130: Status Submenu
Faults. If there are any instrument faults, this section contains a brief description of the fault. If no faults are detected, No Fault is displayed. Refer to the SPG700 Installation and Safety Instructions for more information on the alert and fault error messages.
Page 131 The ﬂash memory is used by the custom test signal, frame picture, logo, font, and text overlay ﬁles that you install in the instrument. When the amount of available memory is low, you might need to delete some of these custom ﬁles from memory before you can install new ﬁles. SPG700 User Manual...
Page 132: Presets Submenu
Rename. Click the button to rename the selected preset from the drop-down list. When you click the Rename button, another dialog box appears where you can enter the new name. You can enter a text string of up to 32 characters. Click OK after entering the new name. SPG700 User Manual...
Page 133: General Settings Submenu
For more information about how to operate an instrument with two power supplies, see the SPG700 Installation and Safety Instructions. Upgrade Firmware (via Network). Click this button to upgrade the instrument ﬁrmware via the Network.
Page 134: Snmp Settings Submenu
Private Community. Use this area to set the Private Community string, which is effectively a password and is required before SNMP commands can read or write changes into the instrument. The default string value is private. You can enter a string of up to 16 characters. SPG700 User Manual...
Page 135 System menu Download SPG8000 MIB File. Click this link to download and open the SPG8000 MIB ﬁle. The SPG8000, SPG8000A, and SPG700 share the same MIB ﬁle. Some of the commands in the ﬁle will apply to features and functions available only on the SPG8000 and SPG8000A.
Page 136: Gpi Settings Submenu
System menu GPI Settings submenu The GPI Settings submenu conﬁgures the General Purpose Interface (GPI) inputs and outputs. See the SPG700 Installation and Safety Instructions for information about the GPI interface. The following ﬁgure shows the GPI submenu. Figure 42: GPI Settings submenu This submenu contains the following menu items: Input Trigger Select.
Page 137 For example, if LTC is the selected time input but the timing between LTC and the genlock input does not meet the SMPTE 12M speciﬁcation. SPG700 User Manual...
Page 138 Alarm Time. When enabled, sends an alarm signal to the selected GPI output for the one second when the program time counter matches the Alarm Time value conﬁgured in the Time menu. (See page 138, Alarm Time.) SPG700 User Manual...
Page 139: Options Submenu
Options Enabled. This is a list of hardware and software options installed in the instrument. If your instrument has Option SDI installed, SDI 3G will be listed. If no options are installed, None is displayed. Option. This area displays a list and description of the installed options. SPG700 User Manual...
Page 140: Diagnostics Submenu
GPI. When the instrument is in Factory mode, you can view additional diagnostic results and initiate speciﬁc diagnostic tests for servicing the instrument. See the SPG700 Service Manual for more information about the Factory mode diagnostics. SPG700 User Manual...
Page 141 System menu Mainframe diagnostic The following ﬁgure shows the diagnostic readouts for the Mainframe. The readouts are grouped into sections for general diagnostics, power supply readouts diagnostics, and Main board voltages. Figure 44: Mainframe diagnostic readouts SPG700 User Manual...
Page 142 In this case, the ﬁrst number will slew over seconds or minutes until it equals the value of the second number. If the instrument is taking a long time to lock to an external reference signal, the Tune readout may provide valuable information about what is happening. SPG700 User Manual...
Page 143 The error code numbers should all be “0” (zero). Non-zero numbers indicate a hardware problem with the instrument and that the instrument should be returned to Tektronix for service. This readout is not available from the instrument front panel. SPG700 User Manual...
Page 144 Hours. These readouts display the number of hours that each installed power supply module has been in the preferred (Active) and backup (Standby) states. If a power supply module is not installed, PS<1 or 2> not installed is displayed for that module. SPG700 User Manual...
Page 145 (day, month, year). If a power supply module is not installed, PS<1 or 2> not installed is displayed for that module. Part No. These readouts display the Tektronix part number of each installed power supply module. If a power supply module is not installed, this readout displays 0 for that power supply.
Page 146 “Error: cooldown, 1 min 40 sec left.” Main Board Voltages diagnostic readouts. These readouts display the status of the Main board voltages. OK displays when the voltages are within the operating range; WARN displays when a voltage is out-of-range. SPG700 User Manual...
Page 147 Tune. This readout should be ignored. Reference Module voltages. These readouts display the voltages of the Reference module. The status for each voltage displays OK when the voltages are within the operating range; the status displays WARN when a voltage is out-of-range. SPG700 User Manual...
Page 148 1 (SDI 2A and SDI 2B connectors). This readout should show Lock (locked). An Unlk (unlocked) reading might indicate a problem with the Option SDI board or with the instrument. SPG700 User Manual...
Page 149: System Menu Factory Default Settings
Disable Power Supply Fault Disable Lock Error Disable Lock Warning Disable Time Error Disable Time Warning Disable Alarm Time Alarm Delays 00:00:10 GPO Lock Error 00:00:10 GPO Lock Warning 00:00:10 GPO Time Error 00:00:10 GPO Time Warning SPG700 User Manual...
Page 150 System menu SPG700 User Manual...
Page 151: Time Menu
Jam Sync. Conﬁgures the parameters for the Jam Sync function. Use the function to immediately synchronize the instrument timecode with the selected time source for each output or to regularly schedule a synchronization. (See page 139, Jam Sync submenu.) SPG700 User Manual...
Page 152: Time Of Day Submenu
When the SMPTE309 Data mode is set to Use as Input or to Use as Input/Output, the date is set using the VITC or LTC source. When the SMPTE309 Data mode is set to Ignore, the date is set from the internal RTC. (See page 133, SMPTE309 Data.) SPG700 User Manual...
Page 153 DST offset settings on the instrument. This mode is useful if the incoming time code data is from a different time zone than the outputs you intend to create. SPG700 User Manual...
Page 154 Instead, the indicator reports the DST offset that would be applied if the slave unit was using its own DST offset conﬁguration (as it would in VITC/LTC “Ignore” or “Use as Input” modes). SPG700 User Manual...
Page 155 Daylight Savings Time schedule will be cleared. This allows for a new schedule to be set up for any time in the future. (See page 191, Daylight Savings Time submenu.) SPG700 User Manual...
Page 156: Daylight Savings Time Submenu
-12 to +13 hours. Therefore, when you are using ST309 data as the Time of Day source, it is recommended that the combined programmed offset from time zone and DST be restricted to the range of -12 to +13 hours. SPG700 User Manual...
Page 157 Recurring End The Recurring End time is the time when the daylight savings time offset will be removed. Enter the information similar to the Recurring Start time described above. SPG700 User Manual...
Page 158: Program Time Submenu
NOTE. You can use the System GPI Output submenu to conﬁgure the GPI port connector to output a signal when the Alarm Time setting is reached. (See page 118, GPI Output Alarm Selections.) SPG700 User Manual...
Page 159: Jam Sync Submenu
NOTE. You can use the Input Trigger setting in the System GPI submenu to conﬁgure pin 4 of the GPI port connector to trigger the instrument to force a Jam Sync. (See page 116, GPI Settings submenu.) SPG700 User Manual...
Page 160: Time Button Menu Factory Default Settings
+01:00 ONCE Scheduled Time 2008–01–01 00:00:00 RECUR Start Second Sunday in March 02:00:00 RECUR End First Sunday in November 02:00:00 Program Time Initial Time 00:00:00 Alarm Disabled Alarm Time 00:00:00 Jam Sync Mode Scheduled Scheduled Time 00:00:00 SPG700 User Manual...
Page 161: Front Panel Menu Operation
Submenu and menu The names of submenus and menu selections on the front panel do not always directly correlate with the names that appear on the SPG700 Web Interface. The selection names SPG700 Web interface display reduces the need for some submenus and there is more room for selection names.
Page 162 If nothing is on the second line, press the ENTER button to access the corresponding submenu. The readouts on the LCD display vary depending on the instrument setting and which menu is being accessed. The following ﬁgure shows some example display readouts. Figure 53: Example display readouts SPG700 User Manual...
Page 163 In example 3, the display shows “1/3,” indicating that the currently displayed alert is number one of three reported alerts. In this situation, press the left (◄) or right (►) arrow button to view the other alerts or faults. SPG700 User Manual...
Page 164: Aes Button Menu Diagrams
(See page 39, AES menu.) Figure 54: AES button menu diagram AES AUDIO TIMING The following ﬁgure shows the diagram for the AES AUDIO TIMING OFFSET submenu. OFFSET submenu diagram Figure 55: AES button – AES TIMING OFFSET submenu diagram SPG700 User Manual...
Page 165: Black Button Menu Diagrams
BLACK button repeatedly to selected the desired Black output (1, 2, or 3) to conﬁgure. The following ﬁgures shows the top level diagrams for the BLACK button menu. Figure 56: BLACK button menu diagram – part 1 SPG700 User Manual...
Page 166 Front panel menu operation Figure 57: BLACK button menu diagram – part 2 BLACK TIMING submenu The following ﬁgure shows the diagram for the BLACK TIMING submenu. diagram Figure 58: BLACK button – BLACK TIMING submenu diagram SPG700 User Manual...
Page 167 Front panel menu operation BLACK TIMECODE The following ﬁgure shows the diagram for the BLACK TIMECODE submenu. submenu diagram Figure 59: BLACK button – BLACK TIMECODE submenu diagram SPG700 User Manual...
Page 168 Front panel menu operation BLACK TIMECODE VITC The following ﬁgure shows the diagram for the BLACK TIMECODE VITC submenu. submenu diagram Figure 60: BLACK button – BLACK TIMECODE VITC submenu diagram SPG700 User Manual...
Page 169: Embed Button Menus (Option Sdi Only)
SDI video outputs. Use this menu to select the audio group for subsequent audio channel conﬁguration, and to conﬁgure audio group parameters. The following ﬁgure shows the top level diagram for the EMBED button menu. Figure 61: EMBED button menu diagram SPG700 User Manual...
Page 170 Front panel menu operation EMBEDDED AUDIO The following ﬁgure shows the diagram for the EMBEDDED AUDIO submenu. submenu diagram Figure 62: EMBED button – Embedded Audio Group submenu diagram SPG700 User Manual...
Page 171 Front panel menu operation EMBEDDED CHANNEL The following ﬁgure shows the diagram for the EMBEDDED CHANNEL submenu. submenu diagram Figure 63: EMBED button – EMBEDDED CHANNEL submenu diagram SPG700 User Manual...
Page 172: Ltc Button Menus
LTC button menus Use this button menu to view and conﬁgure the LTC inputs and outputs on the GPI/LTC port. The following ﬁgure shows the top level diagram for the LTC button menu. Figure 64: LTC button menu diagram SPG700 User Manual...
Page 173: Ref Button Menus
Use this button menu to view and conﬁgure instrument settings such as the signal reference source, the signals being output, and information about system faults and alerts. The following ﬁgure shows the top level diagram for the REF button menu. Figure 66: REF button menu diagram SPG700 User Manual...
Page 174: Sdi Button Menus (Option Sdi Only)
Press the SDI button repeatedly to select the desired SDI output (SDI 1 or SDI 2) to conﬁgure. The menu selections for the SDI 1 and SDI 2 outputs are similar, but are independent for each output. The following ﬁgures show the top level diagrams for the SDI button menu. SPG700 User Manual...
Page 175 Front panel menu operation Figure 68: SDI button menu diagram - part 1 SPG700 User Manual...
Page 176 Front panel menu operation Figure 69: SDI button menu diagram - part 2 SDI TEST SIGNAL The following ﬁgure shows the diagram for the SDI TEST SIGNAL submenu. submenu diagram SPG700 User Manual...
Page 177 Front panel menu operation Figure 70: SDI button – SDI TEST SIGNAL submenu diagram SPG700 User Manual...
Page 178 Front panel menu operation SDI MOVING PICTURE The following ﬁgure shows the diagram for the SDI MOVING PICTURE submenu. submenu diagram Figure 71: SDI button – SDI MOVING PICTURE submenu diagram SPG700 User Manual...
Page 179 Front panel menu operation SDI OVERLAY submenu The following ﬁgure shows the diagram for the SDI OVERLAY submenu. diagram Figure 72: SDI button – SDI OVERLAY submenu diagram SPG700 User Manual...
Page 180 Front panel menu operation SDI OVERLAY LOGO The following ﬁgure shows the diagram for the SDI OVERLAY LOGO submenu. submenu diagram Figure 73: SDI button – SDI OVERLAY LOGO submenu diagram SPG700 User Manual...
Page 181 Front panel menu operation SDI OVERLAY ID TEXT The following ﬁgure shows the diagram for the SDI OVERLAY ID TEXT submenu. submenu diagram Figure 74: SDI button – SDI OVERLAY ID TEXT submenu diagram SPG700 User Manual...
Page 182 Front panel menu operation SDI OVERLAY CIRCLE The following ﬁgure shows the diagram for the SDI OVERLAY CIRCLE submenu. submenu diagram Figure 75: SDI button – SDI OVERLAY CIRCLE submenu diagram SPG700 User Manual...
Page 183 Front panel menu operation SDI OVERLAY BURNT-IN The following ﬁgure shows the diagram for the SDI OVERLAY BURNT-IN TIMECODE submenu. TIMECODE submenu diagram Figure 76: SDI button – SDI Overlay BURNT-IN TIMECODE submenu diagram SPG700 User Manual...
Page 184 Front panel menu operation SDI TIMING submenu The following ﬁgure shows the diagram for the SDI TIMING submenu. diagram Figure 77: SDI button – SDI TIMING submenu diagram SPG700 User Manual...
Page 185 Front panel menu operation SDI TIMECODE submenu The following ﬁgure shows the diagram for the SDI TIMECODE submenu. diagram Figure 78: SDI button – SDI TIMECODE submenu diagram SPG700 User Manual...
Page 186 Front panel menu operation SDI VIDEO submenu The following ﬁgure shows the diagram for the SDI VIDEO submenu. diagram Figure 79: SDI button – SDI VIDEO submenu diagram SPG700 User Manual...
Page 187 Front panel menu operation SDI ANC PAYLOAD The following ﬁgures show the diagrams for the SDI ANC PAYLOAD submenu. submenu diagram Figure 80: SDI button – SDI ANC PAYLOAD submenu diagram - part 1 SPG700 User Manual...
Page 188 Front panel menu operation Figure 81: SDI button – SDI ANC PAYLOAD submenu diagram - part 2 SPG700 User Manual...
Page 189: Status Button Menus
This menu is for viewing status only and no changes to the instrument settings can be made from this menu. The following ﬁgures show the top level diagrams for the STATUS button menu. Figure 82: STATUS button menu diagram - part 1 SPG700 User Manual...
Page 190: System Button Menu
SNMP traps, GPI alarms, installed options, display brightness, beeper control, and hardware/ﬁrmware versions. You can also use this menu to perform ﬁrmware upgrades, save and recall presets, and view diagnostic results. The following ﬁgures show the top level diagrams for the SYSTEM button menu. SPG700 User Manual...
Page 191 Front panel menu operation Figure 84: SYSTEM button menu diagram - part 1 SPG700 User Manual...
Page 192 Front panel menu operation Figure 85: SYSTEM button menu diagram - part 2 SPG700 User Manual...
Page 193 Front panel menu operation Figure 86: SYSTEM button menu diagram - part 3 SPG700 User Manual...
Page 194 Front panel menu operation Settings available only in The following SYSTEM button menu settings are available only using the front panel and are not available on the SPG700 Web Interface: the front-panel SYSTEM button menu SPG A/V OUTPUT EPOCH SELECTION. Sets which SMPTE Epoch reference will be used for system timing.
Page 195 Front panel menu operation PRESET submenu diagram The following ﬁgure shows the diagram for the PRESET submenu. Figure 87: SYSTEM button – PRESET submenu diagram SPG700 User Manual...
Page 196 Front panel menu operation NETWORK SETUP The following ﬁgure shows the diagram for the NETWORK SETUP submenu. submenu diagram Figure 88: SYSTEM button – NETWORK SETUP submenu diagram SPG700 User Manual...
Page 197 Front panel menu operation SNMP submenu diagram The following ﬁgure shows the diagram for the SNMP submenu. Figure 89: SYSTEM button – SNMP submenu diagram SPG700 User Manual...
Page 198 Front panel menu operation SNMP TRAPS submenu The following ﬁgures show the diagrams for the SNMP TRAPS submenu. diagram Figure 90: SYSTEM button – SNMP TRAPS submenu diagram - part 1 SPG700 User Manual...
Page 199 Front panel menu operation Figure 91: SYSTEM button – SNMP TRAPS submenu diagram - part 2 SPG700 User Manual...
Page 200 Front panel menu operation GPI submenu diagram The following ﬁgure shows the diagram for the GPI submenu. Figure 92: SYSTEM button – GPI submenu diagram SPG700 User Manual...
Page 201 GPI OUTPUT <1, 2, or 3> The following ﬁgure shows the diagram for the selected GPI OUTPUT submenu (1, 2, or 3). submenu diagram Figure 93: SYSTEM button – GPI OUTPUT <1, 2, or 3> submenu diagram SPG700 User Manual...
Page 202 Front panel menu operation GPI ALARM DELAY The following ﬁgure shows the diagram for the GPI ALARM DELAY submenu. submenu diagram Figure 94: SYSTEM button – GPI ALARM DELAY submenu diagram SPG700 User Manual...
Page 203 The following ﬁgure shows the diagram for the OPTIONS submenu. diagram Figure 95: SYSTEM button – OPTIONS submenu diagram FRAME RESET STATUS The following ﬁgure shows the diagram for the FRAME RESET STATUS submenu. submenu diagram Figure 96: SYSTEM button – FRAME RESET STATUS submenu diagram SPG700 User Manual...
Page 204 Front panel menu operation EVENT LOG submenu The following ﬁgure shows the diagram for the EVENT LOG submenu. Figure 97: SYSTEM button – EVENT LOG submenu diagram SPG700 User Manual...
Page 205 ﬁlling the entire log. If an option has not been installed or is not supported, the corresponding log event type will never have entries. For example, the SPG700 does not support GPS, so the GPS missing log event type will not have entries.
Page 206 The value indicates the leap second offset received from the GPS or PTP input. Time source change. Indicates the elected time reference has changed. The value logged indicates the selected reference. Blank is Internal, 1 is GPS, 2 is LTC, 3 is VITC, and 4 is PTP. SPG700 User Manual...
Page 207 Front panel menu operation DIAGNOSTICS submenu The following ﬁgure shows the diagram for the DIAGNOSTICS submenu. diagram Figure 98: SYSTEM button – DIAGNOSTICS submenu diagram - part 1 SPG700 User Manual...
Page 208 Front panel menu operation Figure 99: SYSTEM button – DIAGNOSTICS submenu diagram - part 2 SPG700 User Manual...
Page 209 Front panel menu operation POWER SUPPLY LOAD The following ﬁgure shows the diagram for the POWER SUPPLY LOAD TEST submenu. TEST submenu diagram Figure 100: SYSTEM button – POWER SUPPLY LOAD TEST submenu diagram SPG700 User Manual...
Page 210: Time Button Menus
The following ﬁgure shows the top level diagram for the TIME button menu. Figure 101: TIME button menu diagram SPG700 User Manual...
Page 211 Front panel menu operation TIME OF DAY submenu The following ﬁgure shows the diagram for the TIME OF DAY submenu. diagram Figure 102: TIME button – TIME OF DAY submenu diagram SPG700 User Manual...
Page 212 Front panel menu operation DST SCHEDULE submenu The following ﬁgure shows the diagram for the DST SCHEDULE submenu. diagram Figure 103: TIME button – DST SCHEDULE submenu diagram SPG700 User Manual...
Page 213 Front panel menu operation PROGRAM TIME submenu The following ﬁgure shows the diagram for the PROGRAM TIME submenu. diagram Figure 104: TIME button – PROGRAM TIME submenu diagram SPG700 User Manual...
Page 214 Front panel menu operation JAM SYNC submenu The following ﬁgure shows the diagram for the JAM SYNC submenu. diagram Figure 105: TIME button – JAM SYNC submenu diagram SPG700 User Manual...
Page 215: Index
System menu, 129 Options submenu, 119 Preset submenu, 112 Time menu, 140 Preset submenu, 112 Product documentation, xvi Firmware upgrades Program Time submenu, 138 Program Time submenu, 138 network procedure, 28 Reference menu, 55 Font ﬁle installation, 73 SPG700 User Manual...
Page 216 Time of Day submenu, 132 SDI Moving Picture submenu, 67 modifying, 97 Timecode SDI Overlay Burnt-In Timecode using, 96 As related to time ﬂow, 1 submenu, 75 display on output signal, 75 SDI Overlay Circle submenu, 74 SPG700 User Manual...
