TD-W8968

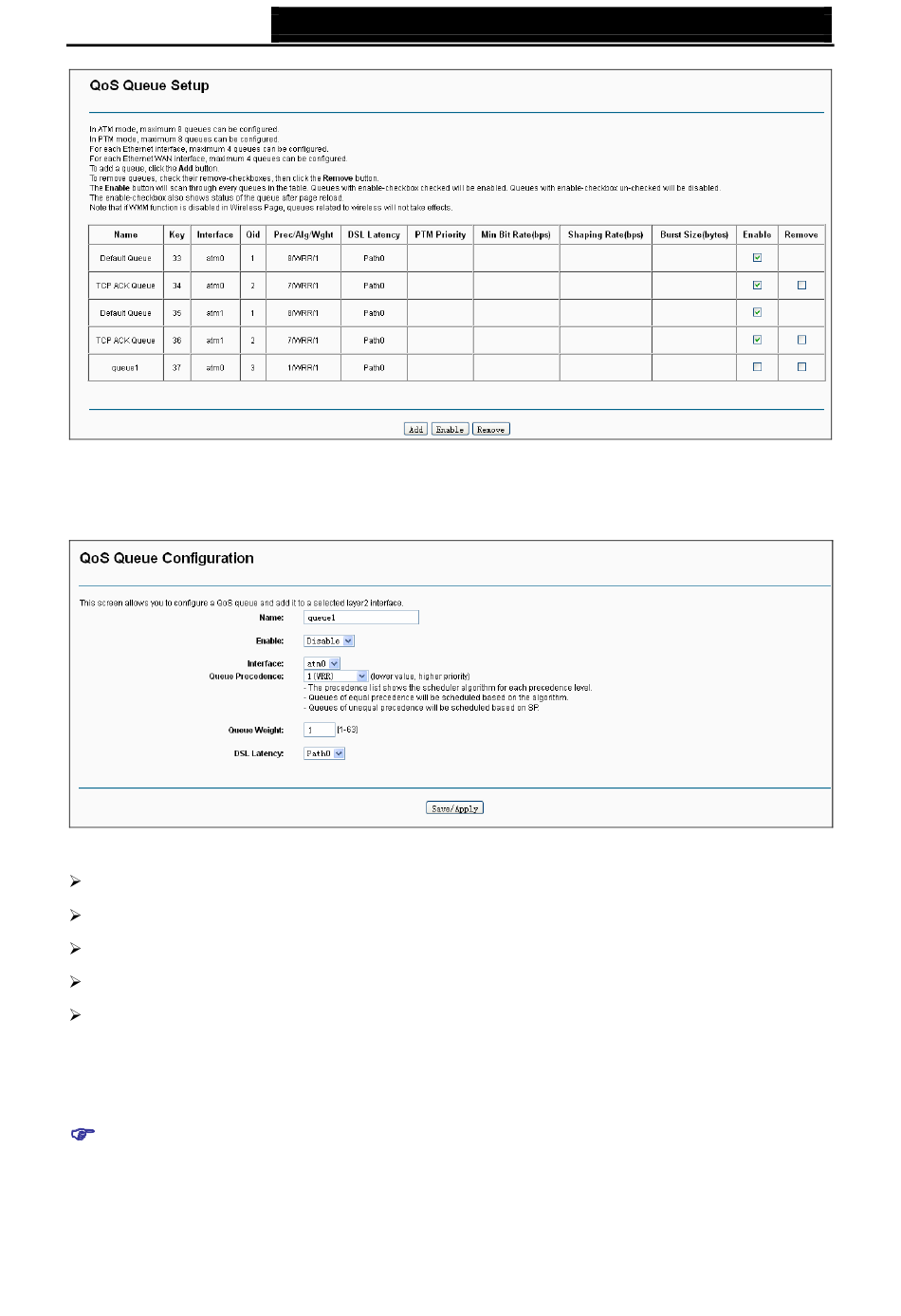

Click the Add button in Figure 4-45, and you can configure the QoS queue entry on the next
screen as shown in Figure 4-46.
Name: Set a name for the entry.
Enable: Select Enable option to take this entry effect.
Interface: Assigned a specific Wan Service for this QoS queue entry.
Queue Precedence: Specify precedence for this QoS queue entry.
DSL Latency: Select latency path for the type of data transmission, only Path0 is available for
this modem router.
After you specify the condition, click Save/Apply to save the entry and then you will see you
settings as shown in Figure 4-45.
Note:
1)
Lower integer values for precedence imply higher priority for this queue relative to others.
2)
The queue entry configured here will be used by the classifier to place ingress packets
appropriately.
300Mbps Wireless N USB ADSL2+ Modem Router User Guide
Figure 4-45
Figure 4-46
47
