TD-W8968
8.

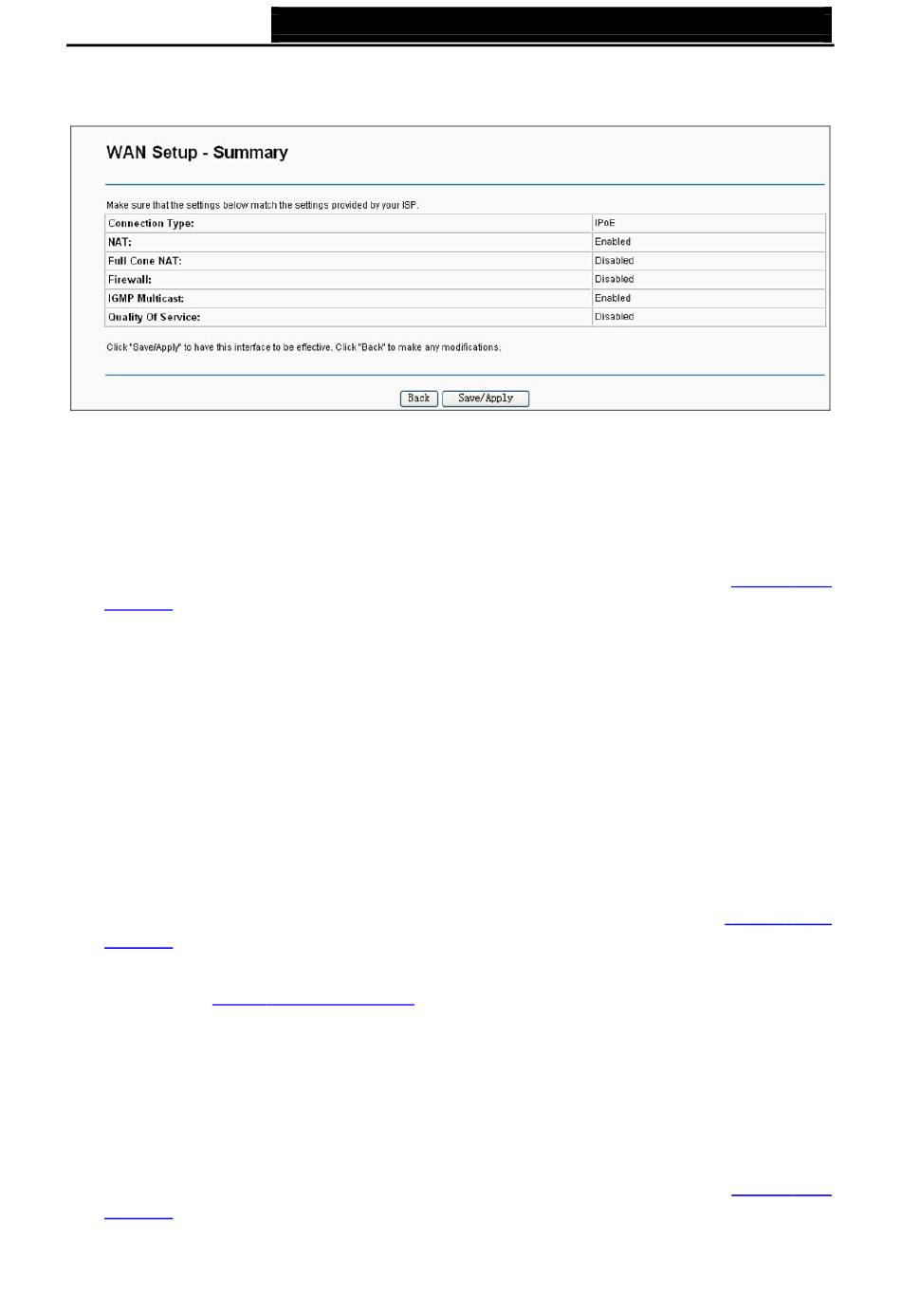

On the next screen (as shown Figure 4-19) you will see the detailed settings you've made.
Please click the Apply/Save button to save these settings.
4.5.2.3 ATM-EoA-Bridging
If you want to adopt the Bridge service and you need to use an ATM Interface, follow the steps
below to add a WAN service over a selected ATM interface:
1.
Add a new ATM interface and select EoA option for DSL Link Type (see
Interface).
2.
Click the Add button on the screen Figure 4-7. Select WAN Service Interface over ATM PVC
on the next screen (as shown Figure 4-8).
3.
Select Bridging option for the WAN service type on the screen (as shown Figure 4-9), and
click Next button to continue.
4.
On the screen (as shown Figure 4-13) you will see the detailed settings you've made. Please
click the Apply/Save button to save these settings.
4.5.2.4 ATM-PPPoA
If your ISP provides a PPPoA connection and you need to use an ATM Interface, follow the steps
below to add a WAN service over a selected ATM interface:
1.
Add a new ATM interface and select PPPoA option for DSL Link Type (see
Interface).
2.
Click the Add button on the screen Figure 4-7 and the next configuration is similar to PPPoE,
(see section
4.5.2.1
PPPoE Service Name and Bridge PPPoE Frames Between WAN and Local Ports on the
screen of Figure 4-10.
4.5.2.5 ATM-IPoA
If your ISP provides an IPoA connection and you need to use an ATM Interface, follow the steps
below to add a WAN service over a selected ATM interface.
1.
Add a new ATM interface and select IPoA option for DSL Link Type (see
Interface).
300Mbps Wireless N USB ADSL2+ Modem Router User Guide
Figure 4-19
ATM-EoA-PPPoE). The difference is that you don't need to set the
27
4.5.1.1 ATM
4.5.1.1 ATM
4.5.1.1 ATM
