TD-W8968
Note:
The following section adopts different VPI, VCI to introduce further configuration for the different
connection types, if you need to change the configuration of ATM PVC (VPI/VCI), you should go to
the previous section (4.5.1 Layer2
4.5.2.1 ATM-EoA-PPPoE
If your ISP provides a PPPoE connection and you need to use an ATM Interface, follow the steps
below to add a WAN service over a selected ATM interface:
1. Add a new ATM interface and select EoA option for DSL Link Type

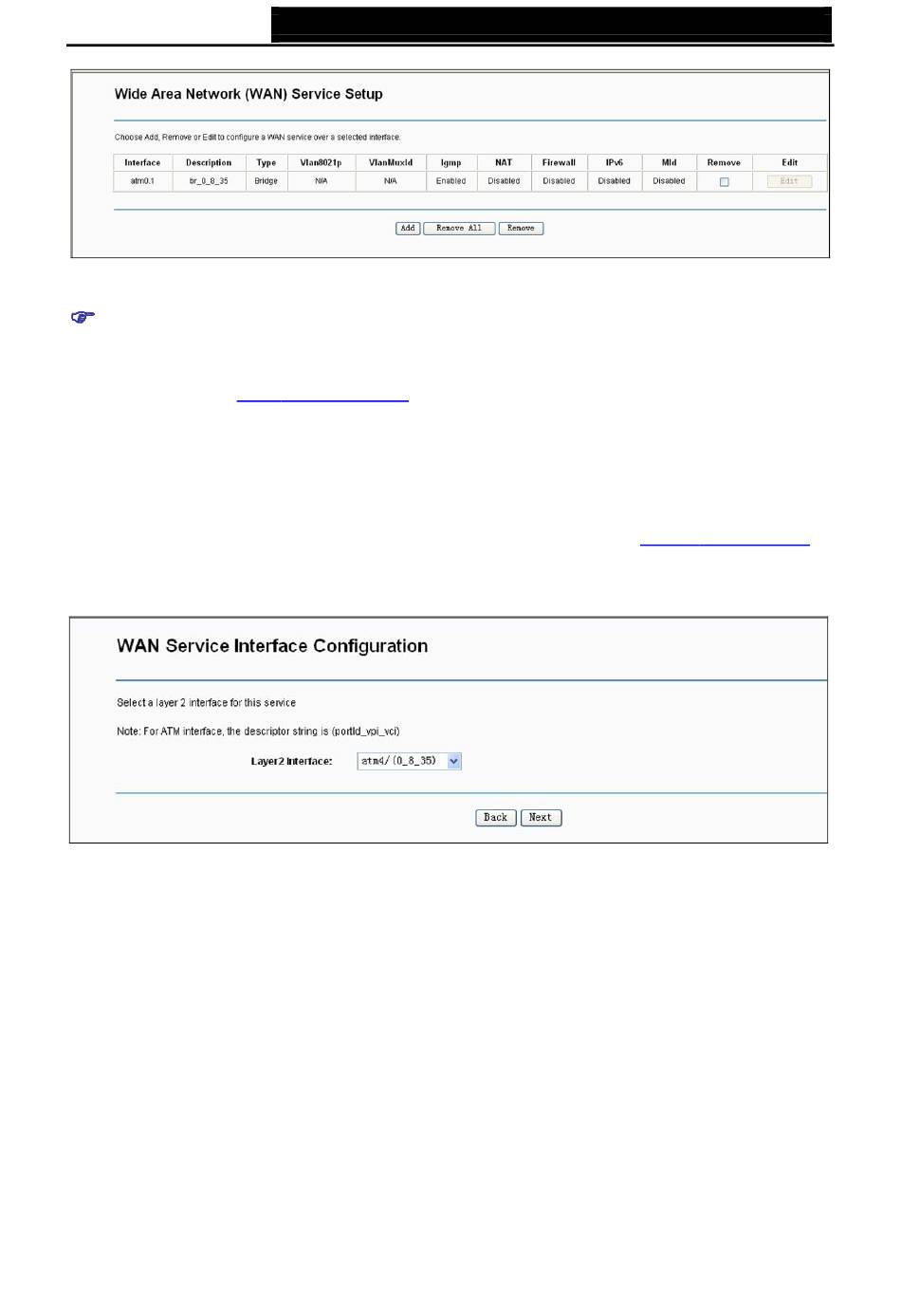

2. Click the Add button on the screen Figure 4-7 and you will enter the next screen as shown in
Figure 4-8. Click Next.
3. Select the WAN service type in Figure 4-9. If your ISP provides a PPPoE connection, select
PPPoE option. You can create a service name for the Service Description or leave it the
default name. Click Next.
300Mbps Wireless N USB ADSL2+ Modem Router User Guide
Figure 4-7
Interface) to configure them again.
Figure 4-8
20
(4.5.1.1 ATM Interface).
