TD-W8968
Note:
To completely configure the WAN Interface, you need to first select the Layer2 Interface
Layer2 Interface) according to the connection ISP provides for you, and then to select the type of
the connection (4.5.2 WAN

4.5.1 Layer2 Interface

4.5.1.1 ATM Interface

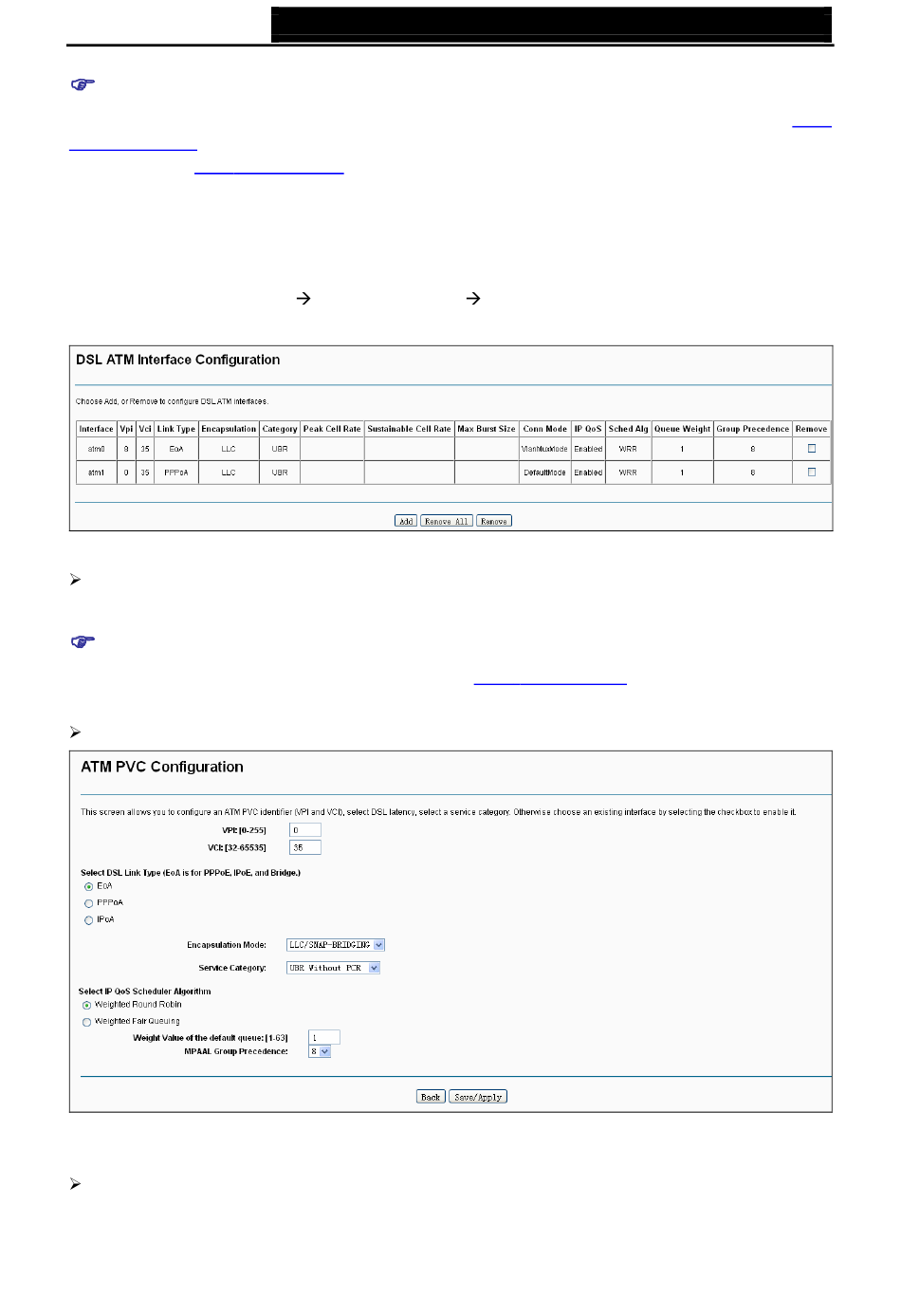

Choose "Advanced Setup" "Layer2 Interface" "ATM Interface", you can Configure ATM
interfaces on the screen below.
Remove: Select the check box in the table on the screen above and then click the Remove
button, the corresponding interface will be deleted in the table.
Note:
If the interface is used by the configuration of the
corresponding WAN Service entry first before you can remove it here.
Add: Click the button, and you can add a new interface in the next screen.
VPI/VCI: the VPI and VCI values provided by your ISP. Do not change them unless it was
required by your ISP.
300Mbps Wireless N USB ADSL2+ Modem Router User Guide
Service) for the further configuration.
Figure 4-3
Figure 4-4
18
4.5.2 WAN Service, you need to remove the
(4.5.1
