TD-W8968
Step 3. Click Next to continue.
Step 4. Choose the Operation Mode for Internet access, and then click Next. For ADSL Modem
Router Mode and Wireless Router Mode, 3G Router Mode can be set as a backup
internet access method. If you do not want to configure 3G settings now, just untick the
option.
ADSL Modem Router Mode: In this mode, the device enables multi-users to share Internet
via ADSL using its ADSL port and share it wirelessly at 300Mbps wireless 802.11n speeds.
Wireless Router Mode: In this mode, the device enables multi-users to share Internet via
Ethernet WAN (EWAN) using its interchangeable LAN/WAN port and share it wirelessly at
300Mbps wireless 802.11n speeds.
300Mbps Wireless N USB ADSL2+ Modem Router User Guide

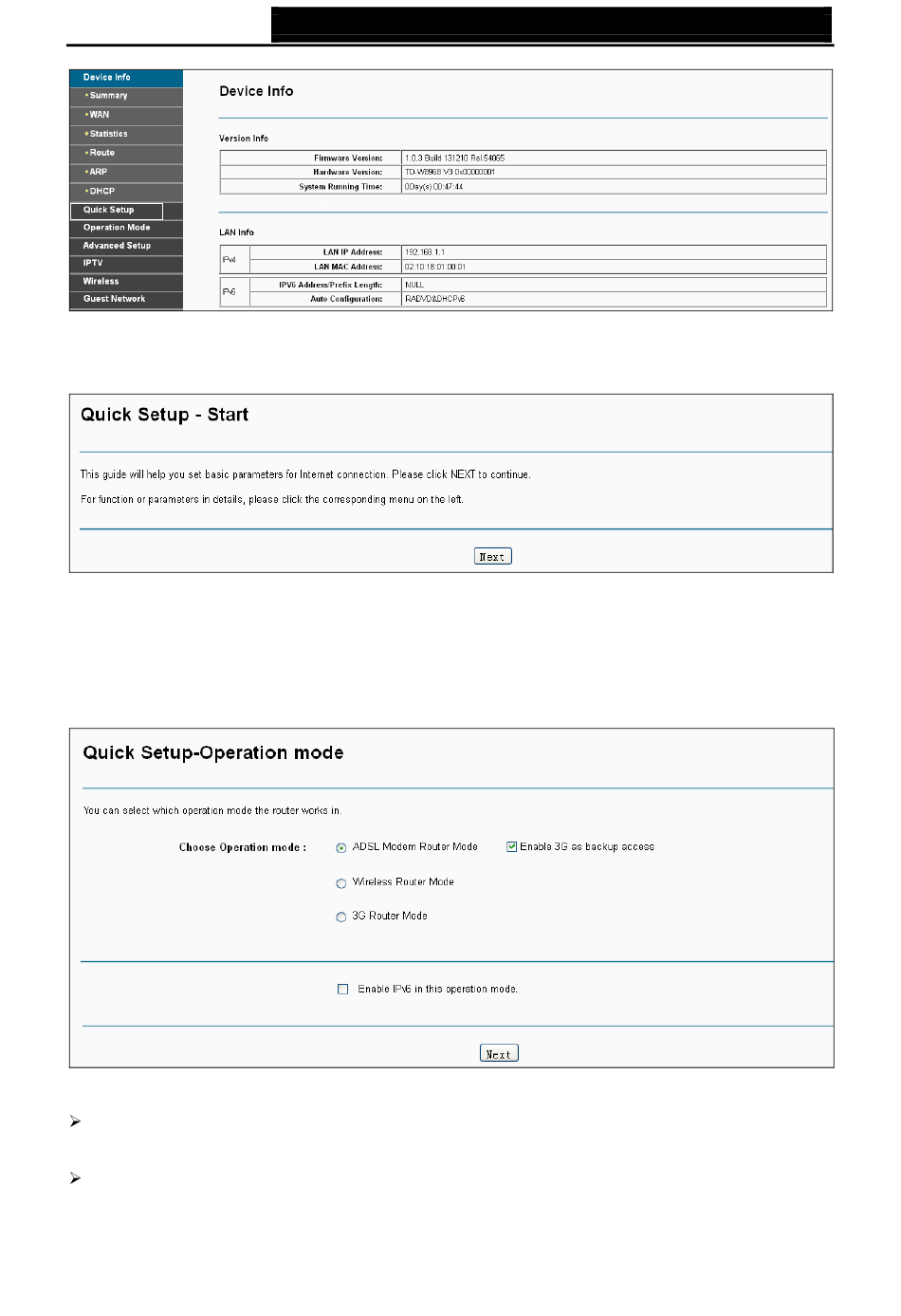

Figure 3-5
Figure 3-6
Figure 3-7
11
