- Page 1 FS-A75 PICMG1.3 Full-size CPU Card User’s Manual Edition 1.4 2014/05/15...
- Page 3 FS-A75 User’s Manual Copyright Copyright 2011, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 4: Sata Cable X
FS-A75 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: FS-A75 PICMG1.3 Full-size CPU Card motherboard x 1 Cable Kit: SATA Cable x 2 (OALSATA3-L)/ (1040529) DVI module with bracket x 1 (BADPDVIP_A & OALDVI-P) PS/2 Keyboard &... -
Page 5: Table Of Contents
FS-A75 User’s Manual Index Chapter 1 <Introduction> .............6 1.1 <Product Overview>..................6 1.2 <Product Specification>................7 1.3 <Mechanical Drawing>................. 9 1.4 <Block Diagram>..................10 Chapter 2 <Hardware Setup> ..........11 2.1 <Connector Location> ................11 2.2 <Jumper Location & Reference>..............12 2.3 <Connector Reference>... - Page 6 FS-A75 User’s Manual Chapter 3 <System Setup> ............38 3.1 <Audio Configuration> ................38 3.2 <Display Properties Setting> ..............39 3.3 <SATA configuration> .................41 3.4 <SATA RAID Configuration> ...............42 Chapter 4 <BIOS Setup> .............44 Appendix A <I/O Port Pin Assignment> ......46 A.1 <Serial ATA Port> ..................46 A.2 <IrDA Port>....................46...
- Page 7 FS-A75 User’s Manual (This page is left for blank)
-
Page 8: Chapter 1

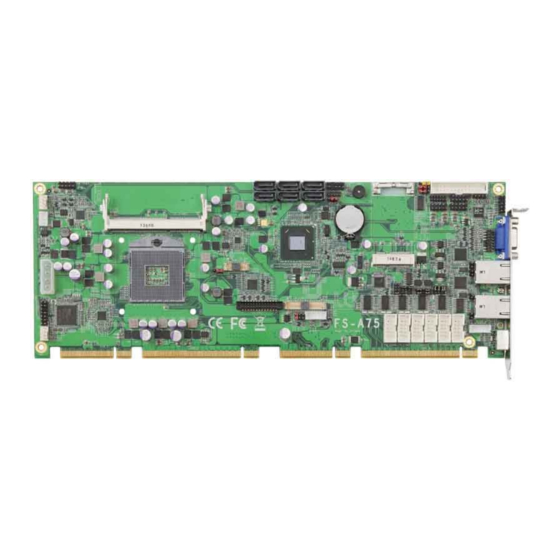

FS-A75 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> FS-A75 the 2 Generation Intel of the PICMG1.3 Full-size CPU Card motherboard, supports 2 Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron® Mobile Processor and features Intel QM67 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition Audio, Serial ATA with RAID function for a system and Intel Gigabit LAN. -
Page 9: Product Specification
FS-A75 User’s Manual 1.2 <Product Specification> General Specification Form Factor PICMG 1.3 Full-size CPU Card Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron® Mobile Processor Package type: rPGA988B Memory 2 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 16GB... - Page 10 FS-A75 User’s Manual Ordering Code FS-A75TXG Intel PGA988B+ QM67 Onboard VGA, LVDS, DVI, USB2.0, COM, HD Audio, SATAII ,SATAIII, SMBUS, LPC, IrDA, GPIO and PCI Express mini card, 1 x Giga LAN Support Four X1 & One X16 PCI Express interface FS-A75FTXG Intel PGA988B+ QM67 Onboard VGA, LVDS, DVI, USB2.0, COM, HD...
-
Page 11: Mechanical Drawing
FS-A75 User’s Manual 1.3 <Mechanical Drawing> Unit: inch... -
Page 12: Block Diagram
FS-A75 User’s Manual 1.4 <Block Diagram> Generation Intel® Core™ i7, Core™ i5, Core™ i3 1 x PCI Express x16 and Celeron® Mobile Processor 2 x 204-pin DDR3 SO-DIMM 1066/1333/1600 MHz up to 16GB 1 x CRT 1 x PCI Express x4 or... -
Page 13: Chapter 2
FS-A75 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_SMBUS CN_LPT SATA1/3/5 CN_IR CN_DIO CN_USB3 SO-DIMM1 SATA2/4/6 CD_IN MINI_CARD CN_AUDIO CPUFAN CN_USB6 CN_USB4/5 DC_IN JACT1 CN_LPC JSPD1 JFRNT JACT2 JSPD2 SYSFAN CN_DVI CN_INV COM6/5/4/3/2/1 CN_LVDS SO-DIMM2 FS-A75TXG2 RJ45_2 RJ45_1... -
Page 14: Jumper Location & Reference
FS-A75 User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select Com1 Voltage Setting (For Pin 9) Com2 Voltage Setting (For Pin 9) Com3 Voltage Setting (For Pin 9) Com4 Voltage Setting (For Pin 9) -
Page 15: Connector Reference
FS-A75 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket rPGA988B for PGA988 CPU SO-DIMM 1/2 204 -pin DDR3 SO-DIMM socket SATA 1/2 7-pin Serial ATAIII connector SATA 3/4/5/6 7-pin Serial ATAII connector DC_IN 4-pin power supply connector... -
Page 16: Cpu And Memory Setup
FS-A75 User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> The board comes with the socket rPGA988 for Intel SandyBridge Processor, Please follow the instruction to install the CPU properly. Unlock way Socket CPU Check point 1. Use the flat-type screw drive 2. -
Page 17: Memory Setup
FS-A75 User’s Manual 2.4.2 <Memory Setup> The board provides 2 x 204-pin DDR3 SO-DIMM to support 1066/1333/1600MHz DDR3 memory module up to 16GB. Support Non-ECC, unbuffered memory only. SO-DIMM1 SO-DIMM2... -
Page 18: Cmos & Atx Setup
FS-A75 User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 19: Serial Ata Interface
FS-A75 User’s Manual 2.6 <Serial ATA Interface> FS-A75 has Four Serial ATA II (SATA Port3/4/5/6) & Two Serial ATA III (SATA Port1/2) interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s & Serial ATA III can be up to 600MB/s. Please go to http://www.serialata.org/... -
Page 20: Ethernet Interface
FS-A75 User’s Manual 2.7 <Ethernet Interface> The board integrates with two Intel PCI Express Gigabit Ethernet controllers, as the PCI Express x1 can speed up to 250MB/s of transfer rate instead of late PCI bus with 133MB/s of transfer rate. The Intel Gigabit Ethernet supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 21: Onboard Display Interface
FS-A75 User’s Manual 2.8 <Onboard Display Interface> Based on Intel CPU with built-in HD Graphic, the board provides one Sandy Bridge DB15 connector on real external I/O port, one 40-pin LVDS interface with 5-pin LCD backlight inverter connector and provides 26-pin DVI interface. -
Page 22: Digital Display
FS-A75 User’s Manual 2.8.2 <Digital Display> The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels, supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. CN_INV... - Page 23 FS-A75 User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC...
- Page 24 LCD Installation Guide: Preparing the FS-A75, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 25 FS-A75 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel...
- Page 26 FS-A75 User’s Manual...
-
Page 27: Dvi Interface
FS-A75 User’s Manual 2.8.3 <DVI Interface> Connector: CN_DVI Connector type: 26-pin header connector (pitch = 2.00mm) Pin Number Assignment Pin Number Assignment TX1+ TX1- Ground Ground TXC+ TXC- Ground PVDD TX2+ TX2- Ground Ground TX0+ TX0- HPDET DDCDATA DDCCLK CN_DVI... -
Page 28: Integrated Audio Interface
FS-A75 User’s Manual 2.9 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 code, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance. - Page 29 FS-A75 User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground...
-
Page 30: Usb Interface
FS-A75 User’s Manual 2.10 <USB Interface> FS-A75 integrates eight USB2.0 ports. The specifications of USB2.0 are listed below: Interface USB2.0 Intel® QM67 Controller Transfer Rate Up to 480Mb/s Voltage CN_USB6 CN_USB3 CN_USB4/5 JVUSB Connector: CN_USB3/4/5/6 Type: 10-pin (2 x 5) header (pitch = 2.54mm) - Page 31 FS-A75 User’s Manual Connector: JVUSB Type: 6-pin Power select jumper Description 1-3 & 2-4 5V_SB 3-5 & 4-6 Default: 1-3 & 2-4 Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6 Warning: others cause damages...
-
Page 32: Serial Port
FS-A75 User’s Manual 2.11 <Serial Port> The board supports five RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. CN_COM6/5/4/3/2/1 Connector: COM1/3/4/5/6 Type: 9-Pin box header... - Page 33 FS-A75 User’s Manual JP2/1 JCSEL2 JP4/3 JCSEL1...
- Page 34 FS-A75 User’s Manual Function JCSEL2 JCSEL1 IrDA RS-422 RS-485 RS-232 Default setting: JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2) Jumper: JP1/JP2/JP3/JP4 (COM1/2/3/4) Type: onboard 6-pin header Power Mode JP1/2/3/4 Pin 9 with 5V Power Pin 9 with 12V Power Standard COM port...
-
Page 35: Pcie Mini Card And Sim Interface
MPX-SDVOD card will not work if it is placed in other slot. Please also be noted that this slot is the only slot for MPX-SDVOX card but a customized BIOS is needed for the MPX-SDVOX card. Please contact Commell for customized BIOS for your MPX-SDVOX card. -
Page 36: Gpio And Smbus Interface
FS-A75 User’s Manual 2.13 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm) -
Page 37: Power Supply And Fan Interface
FS-A75 User’s Manual 2.14 <Power Supply and Fan Interface > The FS-A75 provides a standard ATX power supply with 4-pin ATX connector and the board provides one 4-pin fan connector supporting smart fan for CPU cooler and one 4-pin cooler fan connectors for system and Northbridge chip. please connect this well before you finishing the system setup. - Page 38 FS-A75 User’s Manual Connector: DC_IN Type: 4-pin DC power connector Description Description +12V Ground Ground Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V Fan Speed Detection Fan Control Connector: SYSFAN Type: 3-pin fan wafer connector Description Description...
-
Page 39: Switch And Indicator
FS-A75 User’s Manual 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 40: Chapter 3
FS-A75 User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® QM67 with REALTEK® ALC888 code. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. -
Page 41: Display Properties Setting
FS-A75 User’s Manual 3.2 <Display Properties Setting> Based on Intel QM67 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 42 FS-A75 User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Resolution and Refresh Rate Click Intel® Dual Display Clone to setup the dual display mode as same screen...
-
Page 43: Sata Configuration
FS-A75 User’s Manual 3.3 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE mode or RAID mode. The RAID mode need more than one HDD is applied. -41-... -
Page 44: Sata Raid Configuration
FS-A75 User’s Manual 3.4 <SATA RAID Configuration> The board integrates Intel® QM67 PCH with RAID function for Serial ATA drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. It needs two unused drives to build this operation. - Page 45 FS-A75 User’s Manual Please press <CTRL+I> to enter the RAID configuration menu. You can setup the RAID under operation system for Microsoft® Windows XP SP1 , please install the Intel® Application Accelerator Ver.4.5 later to support RAID configuration with Intel® Matrix Storage Technology.
-
Page 46: Chapter 4
FS-A75 User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 47 FS-A75 User’s Manual (This page is left for blank)
-
Page 48: Appendix A
FS-A75 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2/3/4/5/6 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR JCSEL1 must jump to “SIR” Type: 5-pin header for SIR Ports... -
Page 49: Lan Led Port
FS-A75 User’s Manual A.5 <LAN LED Port> Connector: JSPD1/2 Type: 5-pin header for LAN Speed LED connector When Lan speed 10/100Mbps Description LED- LED+ When Lan speed 1Gbps Description LED+ LED- Connector: JATC1/2 Type: 5-pin header for LAN Activity LED connector... -
Page 50: Appendix B
FS-A75 User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “Phlash.exe”, it’s the utility that can write the data into the... -
Page 51: Appendix C
FS-A75 User’s Manual Appendix C <System Resources> C.1 <I/O Port Address Map>... - Page 52 FS-A75 User’s Manual...
- Page 53 FS-A75 User’s Manual...
-
Page 54: Memory Address Map
FS-A75 User’s Manual C.2 <Memory Address Map>... -
Page 55: System Dma & Irq Resources
FS-A75 User’s Manual C.3 <System DMA & IRQ Resources> DMA: IRQ:... -
Page 56: Appendix D
FS-A75 User’s Manual Appendix D <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;enter configuration -o 2E 87... -
Page 57: Appendix E
FS-A75 User’s Manual Appendix E <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 58: Contact Information
19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw i nfo@commell.com.tw (General Information) E-Mail t ech@commell.com.tw (Technical Support) Facebook https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899 Twitter https://twitter.com/Taiwan_Commate Commell is a brand name of Taiwan commate computer Inc.
