AS-1H1DP-WP Installation and Operation Guide HDCP PoH In HDBT Out Reset HDMI D spl Port AS-1H1DP-WP HDMI/D spl Port Auto-Sw tch n W llpl te Aud o Auto RS232 HDMI F rmw re Rev 160330 11675 Ridgeline Dr. Toll-Free: 800-530-8998...
AS-1H1DP-WP Installation Guide Important Safety Instructions 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference.
Page 4
AS-1H1DP-WP Installation Guide 26. When the apparatus is not in use or during its relocation, take care of the power cord and plugs; e.g. tie up the power cord with cable tie or similar. The tie must be free from sharp edges and the like that might cause abrasion of the power cord.
The AS-1H1DP-WP will detect which input has an active video input, and switch to that input – if both inputs are active, the “last in” will be selected. There are additional contact closure inputs provided on the rear of the unit to allow third party control.

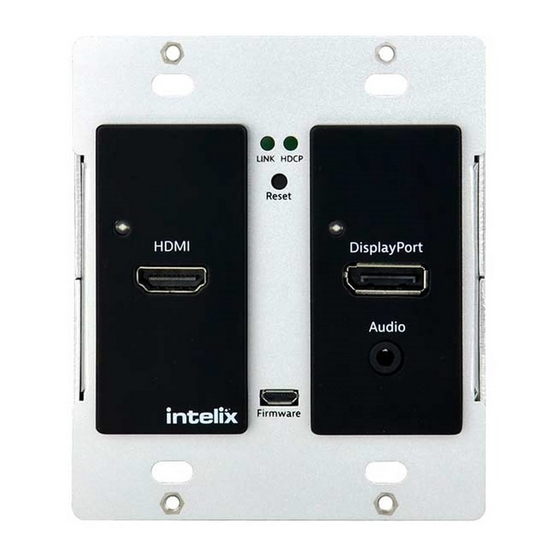

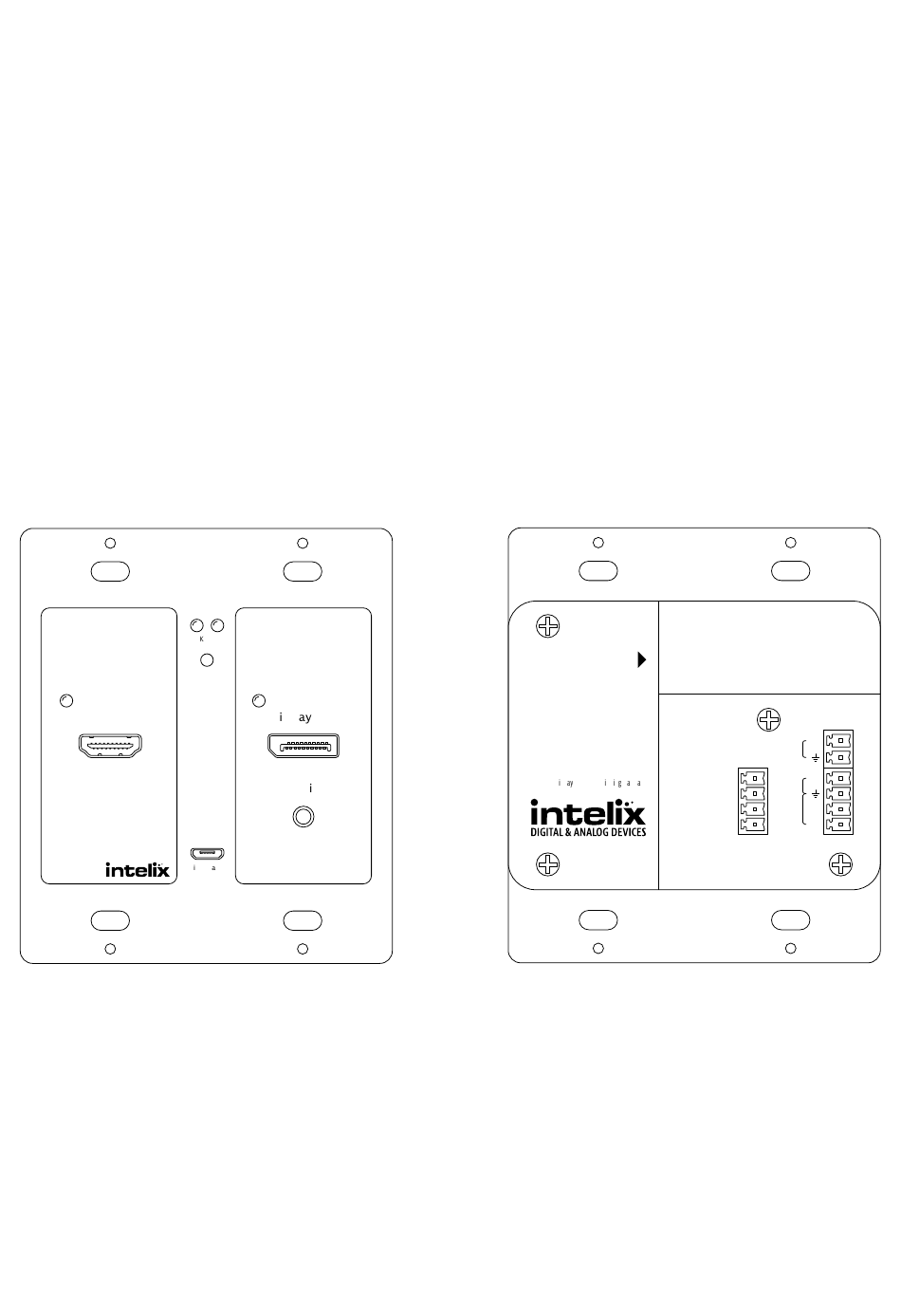

AS-1H1DP-WP Installation Guide Front and Rear Panels Front Panel HDCP Reset HDMI D spl Port Aud o F rmw re HDMI input and input status LED Status LEDs and Reset button DisplayPort with analog audio input and input status LED...
AS-1H1DP-WP Installation Guide Rear Panel PoH In HDBT Out AS-1H1DP-WP HDMI/D spl Port Auto-Sw tch n W llpl te Auto RS232 HDMI Contact closures 12V DC power input HDBaseT output with PoH input support RS232 and 12V DC output...
Power on attached audio/video devices. Apply power to the HDBaseT receiver. If the HDBaseT receiver cannot provide power to the AS-1H1DP-WP, connect the power supply going to the AS-1H1DP-WP to an AC outlet. Connect HDMI or DisplayPort/Audio sources. The analog audio input is only paired with the DisplayPort input.
“GND” terminal. Normally open, momentary switches should be used. The AS-1H1DP-WP ships from the factory with a jumper in place between the “AUTO”, and “GND” terminals; this should remain in place if you wish the unit to switch automatically when a video signal is present.
AS-1H1DP-WP Installation Guide 12V DC Output Power The AS-1H1DP-WP can provide power to an external 12V DC device that draws 500mA or less of total current. This voltage will be provided if the AS-1H1DP-WP is powered directly or via PoH.
General Operation Automatic Switching By placing a jumper between the “Auto” and “Gnd” terminals on the back of the AS-1H1DP-WP, the unit will switch inputs by sensing an active video signal. The AS-1H1DP-WP will switch automatically to the “last in” connected input. For example, if an DisplayPort signal is currently displayed, and then connect an HDMI source, the unit will switch to the HDMI input.
AS-1H1DP-WP Installation Guide Reset Button The reset button located under the Status Indicators will reboot the AS-1H1DP-WP. This may need to be used if in EDID pass-through mode, and the AS-1H1DP-WP was powered on before the display during installation, which may prevent the EDID from being read correctly.
No Signal If the AS-1H1DP-WP detects no video on either the HDMI or the DisplayPort input for a set amount of time, the AS-1H1DP-WP will go into low-power mode. The default time is 30 minutes, which can be adjusted by using the Display Control Software or sending an RS232 command.
AS-1H1DP-WP Installation Guide Hardware Reset A hardware reset will reset the AS-1H1DP-WP to the factory default setting. This procedure may be necessary if the device RS232 settings have been changed. Short the HDMI and DP contact closures to Ground for 10 seconds.
Page 17
GET AUTO<CR><LF> Get Auto-switching state AUTO ON!<CR><LF> OR AUTO OFF!<CR><LF> Power Management In addition to going to a low-power mode when using the Display Control functions, the AS-1H1DP-WP can also be set to this mode via RS232. Description Command Response STANDBY<CR><LF>...
Page 18
AS-1H1DP-WP Installation Guide HDCP Compliance Description Command Response HDCP ON<CR><LF> HDCP ON!<CR><LF> HDCP Compliance ON HDCP OFF<CR><LF> HDCP OFF!<CR><LF> HDCP Compliance OFF GET HDCP<CR><LF> Get HDCP Compliance status HDCP ON! <CR><LF> OR HDCP OFF!<CR><LF> DisplayPort Audio By default, embedded audio is enabled for the DisplayPort input. If the source device does not support audio on the DisplayPort output, analog audio may be enabled by transmitting an RS232 command to the device.
Page 19
AS-1H1DP-WP Installation Guide Factory Reset The factory reset command will reset every setting to the factory defaults. EDID, HDCP, scaling, and Display Control settings will all be reset to the original settings. Use extreme caution when the device is used in a live environment.
Page 20
AS-1H1DP-WP Installation Guide Display Control Settings Description Command Response DFG1 DFG1!<CR><LF> Turn Display Control ON Display Control On<CR><LF> DFG0 DFG0!<CR><LF> Turn Display Control OFF Display Control Off<CR><LF> DONxx DON!<CR><LF> Store the ON command for Display Example: pwron<CR> Control (xx = up to 25 characters) DONpwron <CR><LF>...
Page 21
AS-1H1DP-WP Installation Guide Display Control Queries The query responses will be identical to the Display Control commands entered into the device. Description Command Response DFG? Display Control state? DFG1<CR> OR DFG0<CR> DON? DONpwron<CR> Display On command? DOF? DOFpwroff<CR> Display Off command? DIS? DIShdmi1<CR>...
Page 22
AS-1H1DP-WP Installation Guide Troubleshooting Device does not power on Apply an active video signal; the unit may be in standby mode. » Transmit the WAKE command via RS232. » If using a receiver with PoH, verify that the receiver is powered.
Page 23
HDCP, Link, DisplayPort (DP), and HDMI Reset Switch Microswitch Available Models AS-1H1DP-WP-W (White Faceplate and Painted Insert), AS-1H1DP-WP-B (Black Faceplate and Painted Insert) Included Accessories Installation Guide, Power Supply, Mounting Brackets with Screws, Two (2) 4-pin Removable Screw Terminals, RS232 cable (3-pin to DE9), 2-pin Removable Screw Terminal...
Page 24
Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
