Console Connection

Before installation, make sure all devices and computers
to be connected to the StarView switch have been
turned off.
Plug a monitor to the Console' s VGA port; plug a USB
keyboard and a USB mouse to any two of the Console' s
USB ports as shown in figure 2.
For SV431USB only: As an option, the Master
StarView is either SV431 or SV431D to be linked to
the SV431USB with a mini-DIN8 male-to-male cable.
The SV431USB can operate as USB-peripheral
sharing devices

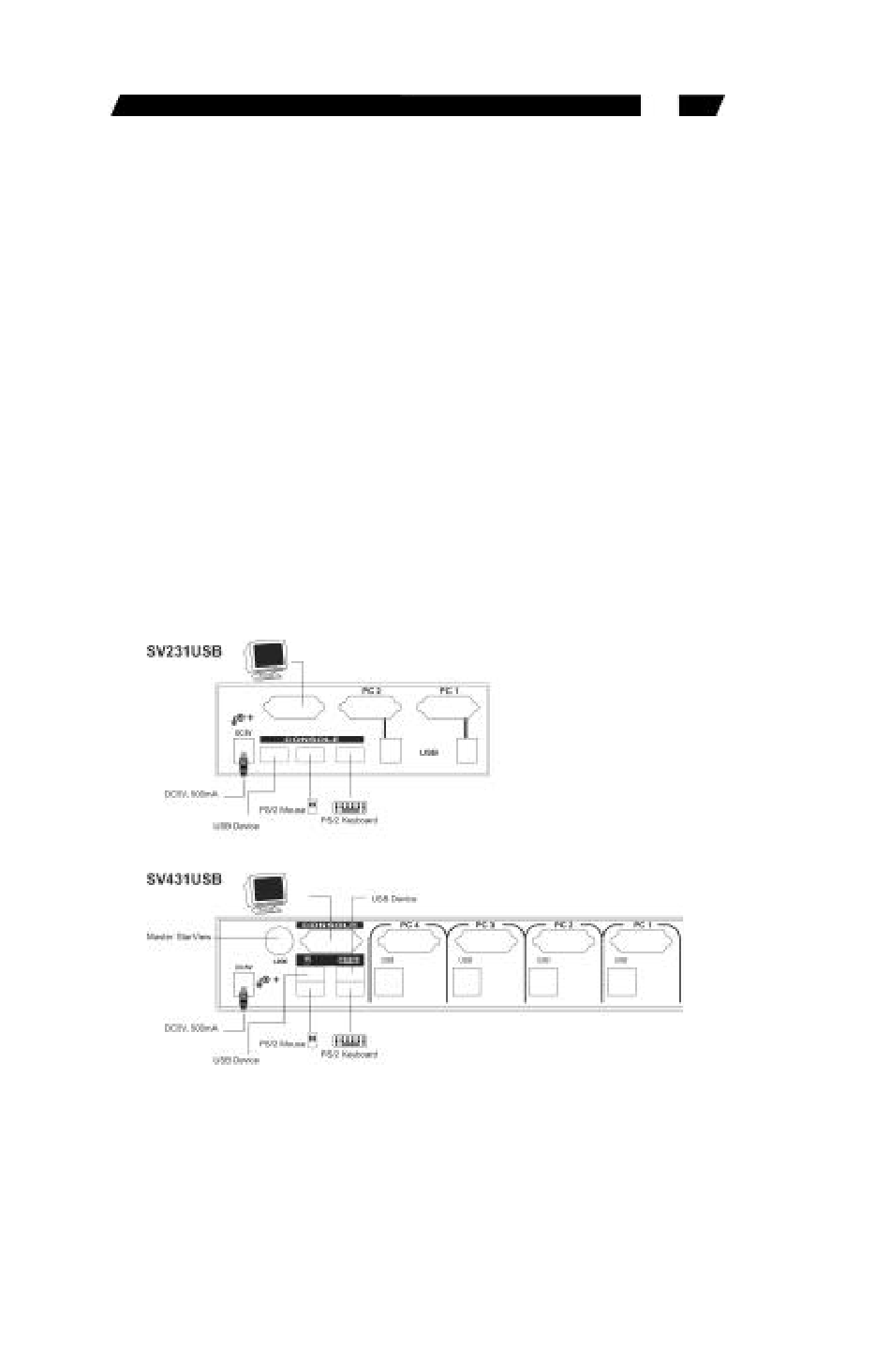

Figure 2: Console Connection
