6
Computer Connection
Use a HDB15 male-to-female cable to connect from a
computer' s VGA port to the StarView' s VGA port of the
PC side, as shown in figure 3.
Use a USB A-B cable to connect from the StarView' s
USB port on the corresponding computer (A connector is
the flat connector) as shown in figure 3.

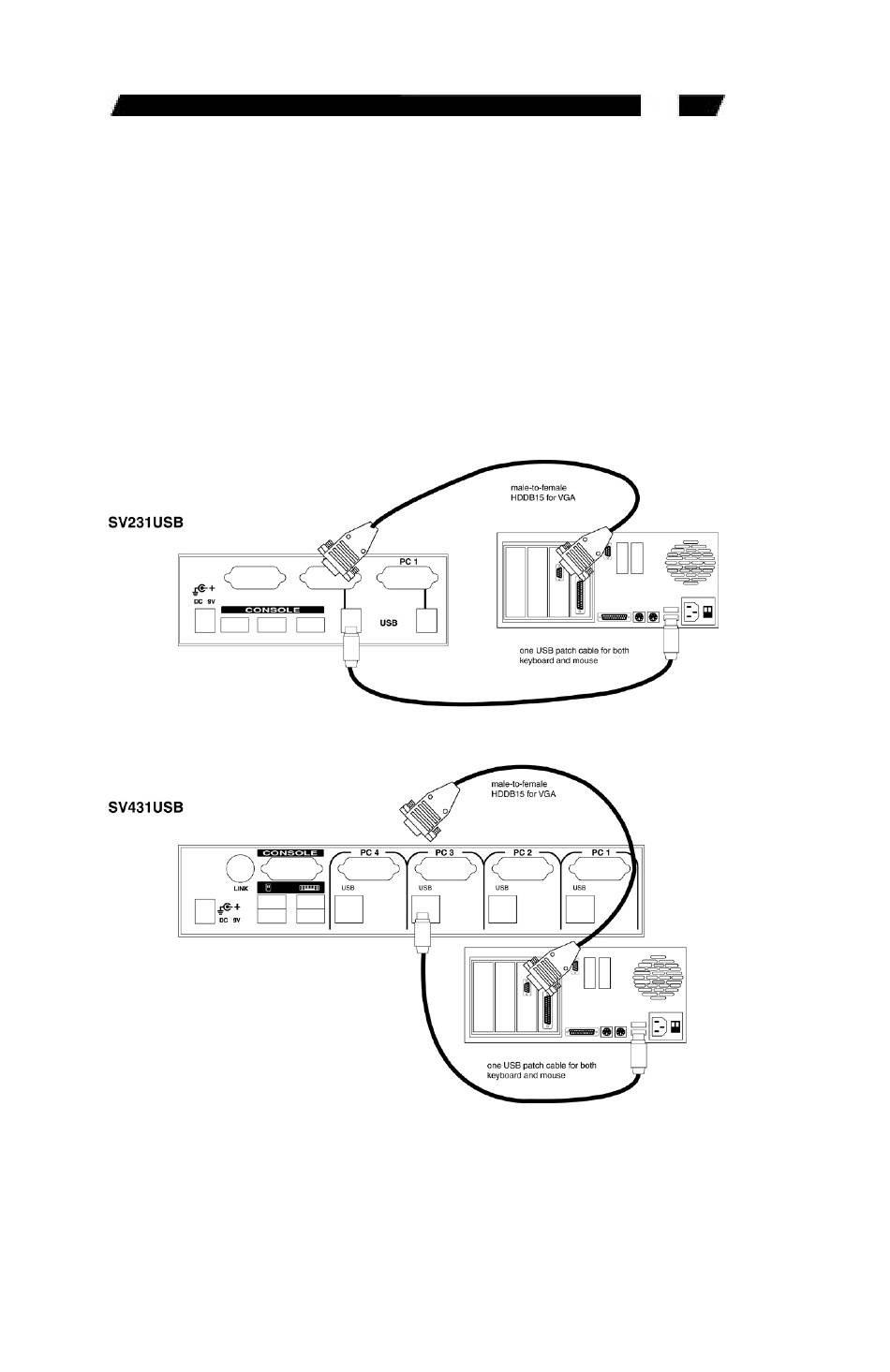

Figure 3: Computer Connection
