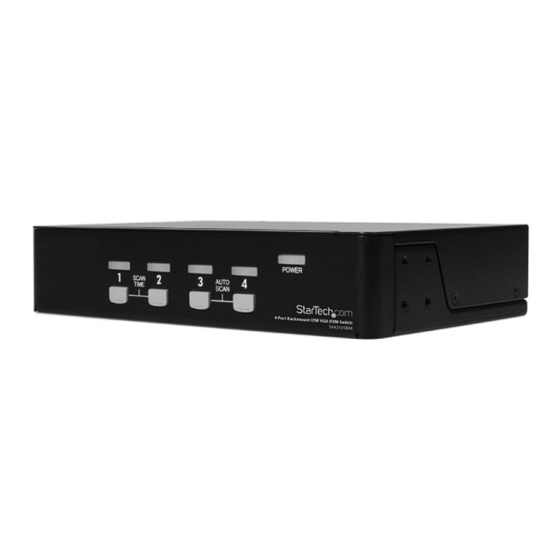

4 Port Rack Mountable USB VGA KVM
Switch with Audio & USB 2.0 Hub
SV431USBAE
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/24/2021
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com SV431USBAEGB
Summary of Contents for StarTech.com SV431USBAEGB

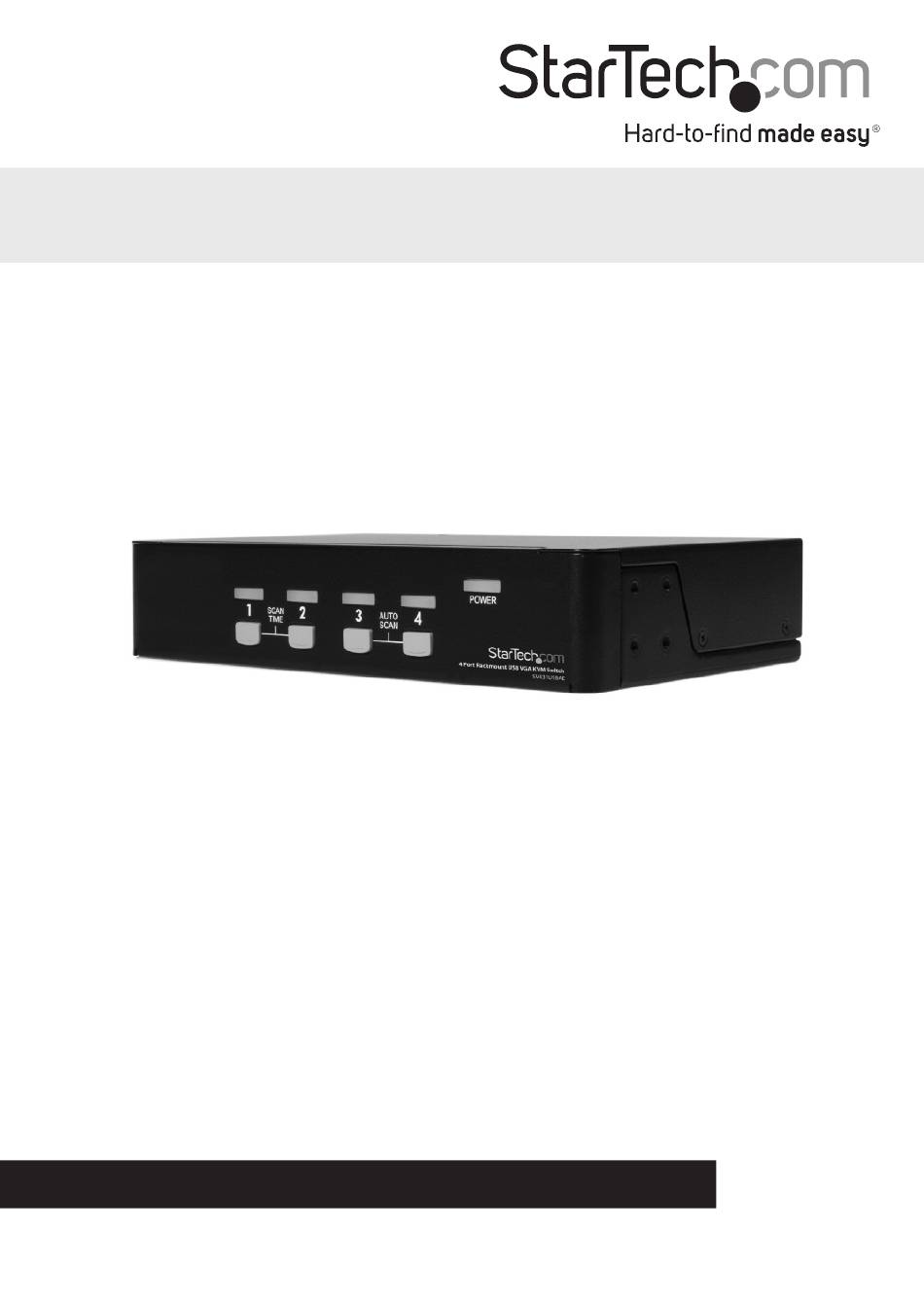

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/24/2021...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Console Connection ................2 Connecting Slave Computers ...............3 Operation ....................4 Front Panel ..............................4 Auto Scan ..............................4 Optional: Rack Mount Installation ...................... 5 Specifications ..................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Introduction
Introduction This Rack Mountable USB KVM Switch supports high resolution video applications (up to 1920x1440 pixels supported) and audio switching between connected computers, and provides an integrated USB 2.0 hub that lets the selected computer have access shared high speed USB peripherals. Providing control of up to four computers from a single USB keyboard and mouse peripheral set, the switch features a sturdy all metal chassis and can be rackmounted in a server rack/cabinet using an optional Rackmount Bracket kit (SV431RACK) -... -
Page 5: Installation
Installation PC BIOS Notice: The following BIOS setup changes are necessary for PC users but are not required for Mac users: 1. In STANDARD CMOS, set HALT ON ERROR to ALL BUT KEYBOARD. 2. In PNP AND PCI SETUP, set PNP OS INSTALLED to YES and set the USB IRQ to ENABLED. -
Page 6: Connecting Slave Computers
Connecting Slave Computers 1. Connect the VGA port located on the rear panel of SV431USBAE to the VGA port provided by the video connection on the desired computer, using an HDB15 male to female cable. Please note the PC Port number, for steps 2 and 3. 2. -
Page 7: Operation
Operation Front Panel 1. Online and Selected LEDs: When the LED turns green, the connected computer is powered on. When a computer is selected, the corresponding (red) LED will illuminate. 2. Pushbuttons: Each computer has a button associated with it on the front panel for selection Auto Scan Auto Scan automatically scans through the connected computers individually, in a... -
Page 8: Optional: Rack Mount Installation
The following illustration depicts how to attach optional mount brackets and cable support for rack mounting SV431USBAE. To do so, you may wish to use SV431RACK (please see Accessory Products from StarTech.com for further information). To the Rack Cabinet back post... -
Page 9: Specifications
Specifications Computers Supported Front Panel Push Buttons Hot Plug-and-Play Supported Automatic Scan Interval 3, 8, 15, 30 seconds Cable Length (Max) 30M (100ft) for VGA 5M (15ft) for USB Computer ON-LINE LED Computer Selected LED Resolution Supported 1920 x 1440, DDC2B USB Type B x 4 Computer Peripheral Connector HDB-15 Male x 4... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
