- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/03/2013...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 Product Overview ..................2 Front View ..............................2 Rear View ..............................3 LED Indicators............................. 4 Reset Button ..............................4 Installation ..............................4 Operation ..............................5 Specifications ..................7 Technical Support ..................8 Warranty Information ................8 Instruction Manual... -
Page 4: Introduction

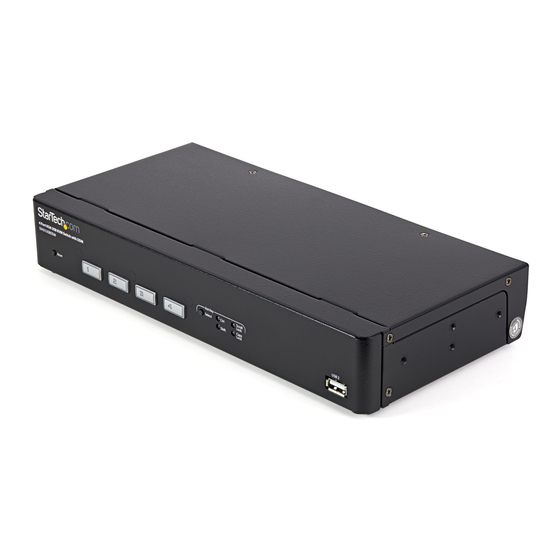

Introduction Packaging Contents • 1 x KVM Switch • 4x 6ft VGA USB KVM Cables • 1 x Firmware Upgrade Cable • 1 x Universal Power Adapter (NA/UK/EU) • 1 x Instruction Manual Product Overview Front View Reset Push-button Hot-Key Selector USB Hub Button PC Selectors... -
Page 5: Led Indicators
LED Indicators PC Selection Indicators Green = PC Connected Amber = Port selected, PC connected Red = Port selected, no PC connected NOTE: The LED will flash quickly while the KVM is mapping a newly connected device Hot-key Selection Indicator Blue = Currently selected hot-key Not-lit = hot-key has been disabled Reset Button... -
Page 6: Operation
Operation Switching between computers can be accomplished using: • Front-panel push-buttons • Keyboard hot-keys. The following chart indicates the hot-keys that are available. Hot-key and Functions Assign USB port commands Assign USB #2 for a certain port use only Optional Functions Instruction Manual... - Page 7 • RJ-45 serial port – control commands issued from communication applications such as Hyper Terminal: Serial Command Function Screen Response Firemare Verision, k1p0 List KVM All Status Now Channel,…….. Y < KVM Channel, print “OK” k1pY Jump to console channel Y Y >...
-
Page 8: Specifications
Specifications 1 x VGA (15 pin; High Density D-Sub) Female Console Connectors 2 x USB A (4 pin) Female (w/ DDM) Computer Connectors 1 x VGA (15 pin; High Density D-Sub) Female (per port) 1 x USB B Female Other Interfaces 2 x USB A Female Switching Modes Pushbutton, Hot-key... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
