RadioLink RC6GS Instruction Manual

Digital 6-channel proportional rc system
Hide thumbs Also See for RC6GS:
Table of Contents

Advertisement

Quick Links

RADIOLINK ELETRONIC LIMITED
www.radiolink.com
Digital 6-Channel Proportional RC System
Instruction Manual
CE FCC ROHS
http://www. radiolink.com
Technical updates and additional programming examples available at:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC6GS and is the answer not in the manual?

Questions and answers

Related Manuals for RadioLink RC6GS

Summary of Contents for RadioLink RC6GS

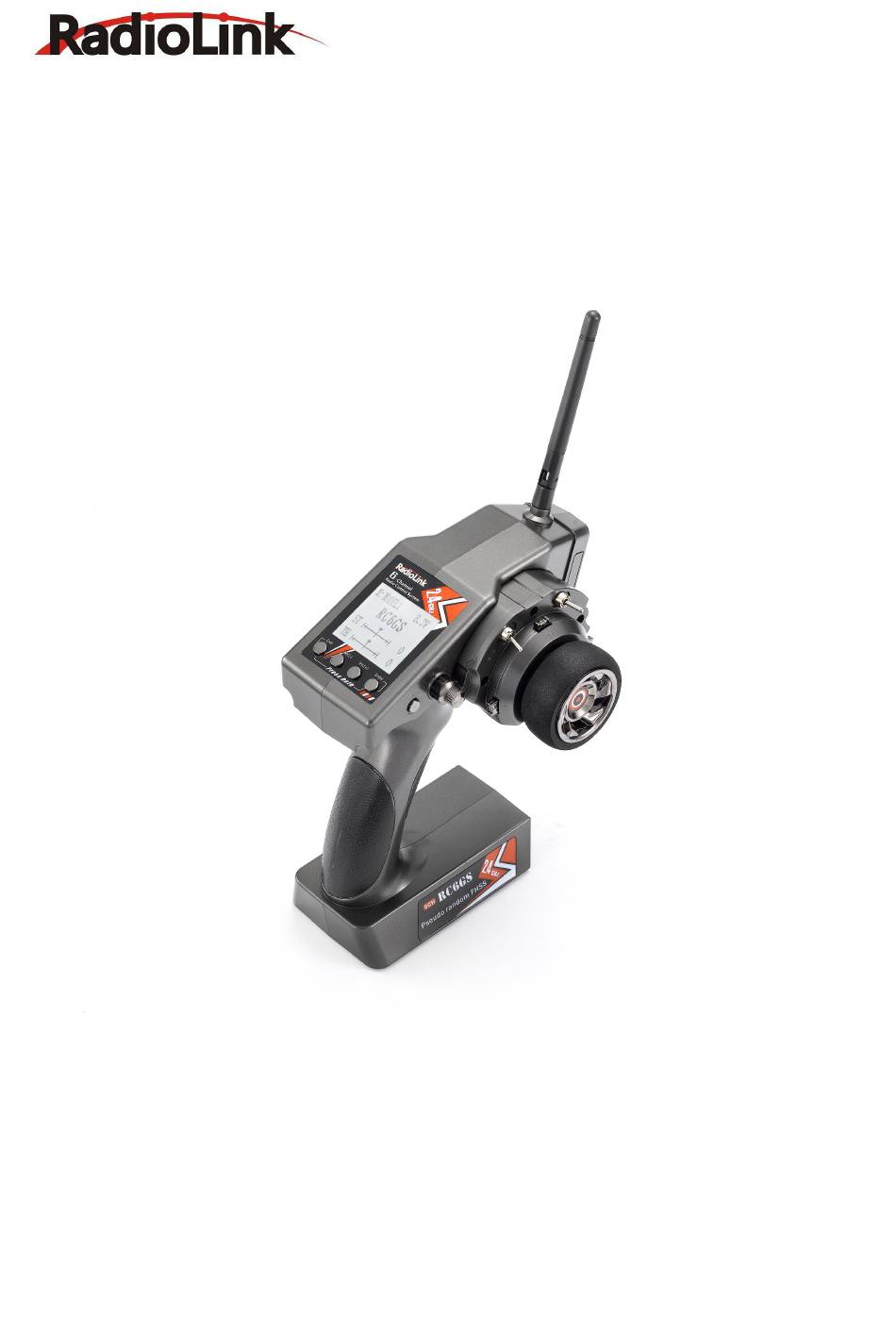

  • Page 1 RADIOLINK ELETRONIC LIMITED www.radiolink.com Digital 6-Channel Proportional RC System Instruction Manual CE FCC ROHS http://www. radiolink.com Technical updates and additional programming examples available at:...

  • Page 2: Introduction And Service

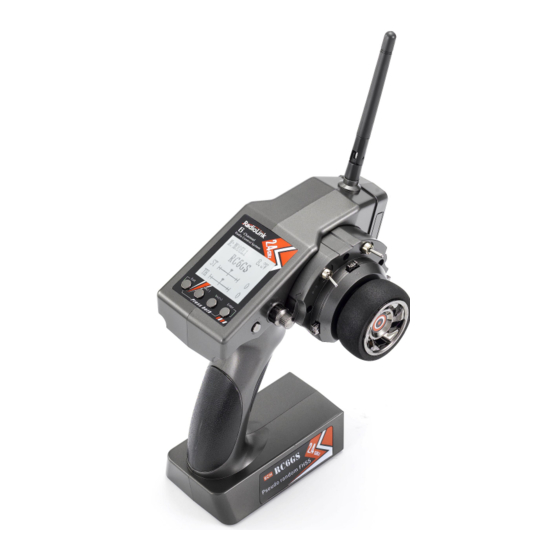

    INTRODUCTION Thank you for choosing Radiolink 2.4 GHz 6 channels pistol grip radio -- RC6GS. RC6GS is default 6 channels transmitter, sells with receiver R6FG which with gyro integrated and HV servo supported. RC6GS, work with FHSS spread spectrum and 67 channels pseudo frequency sequence hopping, both transmitter and receiver use industrial chip ensure superior anti-interference ability both at the same frequency band and different frequency band and anti-sparks interference ability.

  • Page 3: Warning

    RADIOLINK ELETRONIC LIMITED www.radiolink.com Important Safety Notice： The following two symbols will appear in this manual（please pay attention to the paragraph with this two symbols labeled）： Prohibition Testing and confirmation Do not use in bad weather such as rainy or thundering to assure the safety of you and others.

  • Page 4: Table Of Contents

    3.2 Receiver……………………………………………………………………………………………………………..………………..……6 3.2.1 Receiver Installation and Binding………………………………………………………………………………………7 3.2.2 Working Mode……………………………………………………………………………………………..…………………7 3.2.3 How to Turn On Gyro Function………………………………………………….…………….…………...……………7 4. RC6GS Functions…………………………………….………………………….…………………………….………….………..….…...9 4.1 Display When Power Switch Turned On…………………………………………………………………….……….……...9 4.2 Language Select "LANGUAGE" ………………..………………………………………….………….……………..…..9 4.3 Model Select "MODEL"………………………………………………..……………….…..………..……….…...10 4.4 End Point Adjuster "EPA"………………………………….…..…..……………………….…..……..……….………...…10 4.5 Steering EXP "STEXP"…………………………………….………..……………………….…..…………..…….………..11...

  • Page 5: Pistol Grip Control System

    3. Pistol Grip Control System RC6GS, transmitter with chip STM32F103RB, receiver R6FG/R6F with 32 bits industrial chip, 12ms only from transmitter to the receiver, thus provide control synchronous and performance perfect. The same FHSS spread spectrum and 67 channels pseudo random frequency sequence hopping of AT9S makes RC6GS have superior anti-interference ability both at the same frequency band and different frequency bands.
  • Page 6 RADIOLINK ELETRONIC LIMITED www.radiolink.com Size: 213 *117 * 115.5mm Frequency: 2.4Ghz ISM Band（2400MHZ-2483.5MHz） Channel: 6 CH Channel resolution: 4096, the regular jitter is 0.5us Model: Cars/Boats Modulation Mode: GFSK Spread Spectrum: FHSS, 67 Channels Pseudo Random Frequency Sequence Hopping 10 Modes Memory Storage...

  • Page 7: Receiver

    Low Voltage alert: Yes(lower than 4.6V), can be set when using 2-4S LiPo battery Receiver: R6FG, R6F, R8EF, R8FM 3.2 Receiver RC6GS, sells with R6FG, 2.4GHz 6 channels receiver, gyro integrated and HV servo supported. Specification 1) Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)

  • Page 8: Receiver Installation And Binding

    RADIOLINK ELETRONIC LIMITED www.radiolink.com 3.2.1 Receiver Installation and Binding How to Match Code With Transmitter: 1. Put the transmitter and the receiver close to each other within 50 centimeters. 2. Turn on the transmitter, then power on the R6FG. 3. There is a black button on the R6FG, press the binding button twice in two seconds and release,...
  • Page 9 RADIOLINK ELETRONIC LIMITED www.radiolink.com Setup (1) Enable gyro Press binding key three time (interval less than 1 second), the red LED will flash three time, indicating whether gyro is enabled. (2) Gyro sensitivity Gyro sensitivity is predefined to adjust by channel three (factory set VR function), turning the VR switch clockwise to raise sensitivity and anti-clockwise to decrease.

  • Page 10: Rc6Gs Functions

    4. RC6GS Functions 4.1 Display When Power Switch Turned On LCD Screen When you power on the transmitter RC6GS, LCD screen shows Model Name, Transmitter Name, Battery Voltage, Steering Trim, Throttle Trim. Model Name The system can store the data for 10 models, model name will show on the LCD when you power on the transmitter.

  • Page 11: Model Select "Model

    4.3 Model Select "MODEL" RC6GS can store model memories for ten models. Use this function to call a new model. (1) Access the function menu (By pressing “Exit” and“Enter” buttons simultaneously and holding them down for one second), press “Enter”...

  • Page 12: Steering Exp "Stexp

    RADIOLINK ELETRONIC LIMITED www.radiolink.com Aux Servo EPA Aux Servo EPA CH3:0%~120%(left/ right) CH4:0%~120%(left/ right) Initial value: 100% Initial value: 100% Aux Servo EPA Aux Servo EPA CH5:0%~120%(left/ right) CH6:0%~120%(left/ right) Initial value: 100% Initial value: 100% End point adjustment (1) Access the function menu (By pressing “Exit” and “Enter” buttons simultaneously and holding them down for one second),press “Inc(+)”...

  • Page 13: Steering Speed "Stspd

    RADIOLINK ELETRONIC LIMITED www.radiolink.com of the rate will blink, then you can press“Dec(-) ” or“Inc(+)” button to adjust the value and the curve of the rate shown in the figure will change correspondingly. (Note: In the interface of adjusting the value, return to the initial value "0%" by pressing “Dec(-)” and “Inc(+)”...
  • Page 14 RADIOLINK ELETRONIC LIMITED www.radiolink.com Curve point adjustment(select five points 1-5) (1) Press"Enter" button,The curve point value start flashing,then press"Dec(-)"and"Inc(+)" button to adjust the starting value. (2) Press "Enter" button ,starting value stop flashing,adjustment is completed. (3) Press "Exit" button for two times,back to the initial interface.

  • Page 15: Throttle Speed "Thspd

    RADIOLINK ELETRONIC LIMITED www.radiolink.com 2. Press “Dec(-)” or “Inc(+)” button to select RATE for adjustment, set the most comfortable value you want. From the graph you will clearly see the changes you have made on the EXP RATE, also move the trigger to check the throttle status.
  • Page 16 RADIOLINK ELETRONIC LIMITED www.radiolink.com Adjustment range 0~100 (each direction) At 100, there is no delay (1) Enter the function menu and use “Dec(-)”or“Inc(+) ” button to access THSPD function. (2) Press “Enter” button to get into THSPD function interface. (3) If initial MODE setup item is SPEED1, {if initial MODE setup item is SPEED2 or OFF, you need to select SPEED1 by pressing “Dec(-)”or“Inc(+)”...

  • Page 17: Function "A.b.s

    RADIOLINK ELETRONIC LIMITED www.radiolink.com simultaneously for about 1 second.) Press “Enter” button, the adjusted value stops blinking, now your selected value has been set. (5) When ending setting, return to the initial screen by pressing “Exit” button twice. 4.9 A.B.S. Function "A.B.S"...
  • Page 18 RADIOLINK ELETRONIC LIMITED www.radiolink.com - STM(Steering mixing): Sets ABS operation ON/OFF according to the steering operation range. A.B.S function adjustment Enter the function menu and use “Dec(-)” or “Inc(+)” button to access A.B.S function, then press “Enter” button to get into A.B.S function interface.
  • Page 19 RADIOLINK ELETRONIC LIMITED www.radiolink.com - The smaller the set value, the faster the pulse speed. Cycle speed (CYC) 0 ~ 30 Initial value: 5 (4) Operation point setup Select setting item "TGP" by pressing “Dec(-)” or “Inc(+)” button, then press “Enter” key and the initial value of “TGP”...

  • Page 20: Throttle Acceleration "Accel

    RADIOLINK ELETRONIC LIMITED www.radiolink.com Steering mixing (STM) OFF, N10 ~ N100, E10 ~ E100 Initial value: OFF When steering mixing is set and steering operation enters the set range, "*" is displayed in front of the number. When mixing is OFF, the A.B.S function can operate over the entire steering range.

  • Page 21: Idle-Up "Idlup

    RADIOLINK ELETRONIC LIMITED www.radiolink.com Initial value: 0% (2) Brake side acceleration amount adjustment Press “Dec(-)” or “Inc(+)” button to select “ BRAK ”, press“Enter”key to confirm and the initial value of “BRAK” will blink, then use“Dec(-)”or “Inc(+)”button adjust the acceleration amount.

  • Page 22: Servo Reverse "Rev

    RADIOLINK ELETRONIC LIMITED www.radiolink.com Channel ST: Steering(CH1) TH: Throttle(CH2) CH3: Channel3(VR) CH4: Channel4(SWA) CH5: Channel5(SWB) CH6: Channel6(SWC) Sub-trim ST: -100~0~+100 TH: -100~0~+100 CH3: -100~0~+100 CH4: -100~0~+100 CH5: -100~0~+100 CH6: -100~0~+100 Initial value : 0 (1) Enter the function menu and use “Dec(-)”or “Inc(+)” button to access SUBTR function.

  • Page 23: Steering Dual Rate/Throttle Dual Rate "D/R

    RADIOLINK ELETRONIC LIMITED www.radiolink.com (1) Enter the function menu and use “Dec(-)” or“Inc(+)” button to access REV function. (2) Press “Enter” button to get into REV function interface. (3) Use “Dec(-)” or “Inc(+)” button to select ST channel, press “Enter”key, and the “NOR” will blink.

  • Page 24: Programmable Mixes "Pmix

    RADIOLINK ELETRONIC LIMITED www.radiolink.com Setup Item RATE: Brake amount Brake amount (RATE) 0%~100% Initial value: 100% (1) Enter the function menu and use “Dec(-)” or “Inc(+)” button to access ATL function. (2) Press “Enter” button to get into ATL function interface.
  • Page 25 RADIOLINK ELETRONIC LIMITED www.radiolink.com (2) Slave channel Channel selection (SLV) ST, TH, CH3, CH4, CH5, CH6 Initial value: ST Select setup item "SLV" by pressing “Dec(-)” or “Inc(+)” button, press “Enter” button, the initial slave channel will blink. Use“Dec(-)”or“Inc(+)” button to select the slave channel you wish to adjust, press “Enter”...

  • Page 26: Channel 3 Position "Aux

    Use “Dec(-)” or “Inc(+)” button to select POSI, press“Enter”key and the value will blink, use “Dec(-)” or “Inc(+)” button to select “VR” or “SW”. Press “Enter” button, the adjusted value stops blinking, now the value has been set. If you use RC6GS to control RC crawler, you can setup each channels as below.

  • Page 27: Model Name "Name

    RADIOLINK ELETRONIC LIMITED www.radiolink.com 4.18 Model Name "NAME" RC6GS stores model memories for ten models. Each model memory can be named separately according to user’s requirement. Factory default name: MODEL1 (1) Enter the function menu and use “Dec(-)” or “Inc(+)”...

  • Page 28: Fail Safe

    RADIOLINK ELETRONIC LIMITED www.radiolink.com sensitivity. (3) Press “Enter” again, the initial value will start flashing, then use Dec (-) and Inc (+) to change the value. (4) Press the button key “Enter”, the value stops flashing, the setting is finished now.
  • Page 29 RADIOLINK ELETRONIC LIMITED www.radiolink.com done to get a “fresh start” and clear the memory before inputting new model settings. (1) Enter the function menu and use “Dec(-)” or “Inc(+)” button to access RESET function. (2) Press “Enter” button to get into RESET function interface, the symbol “YES”...
