Summary of Contents for RadioLink RC4GS V2

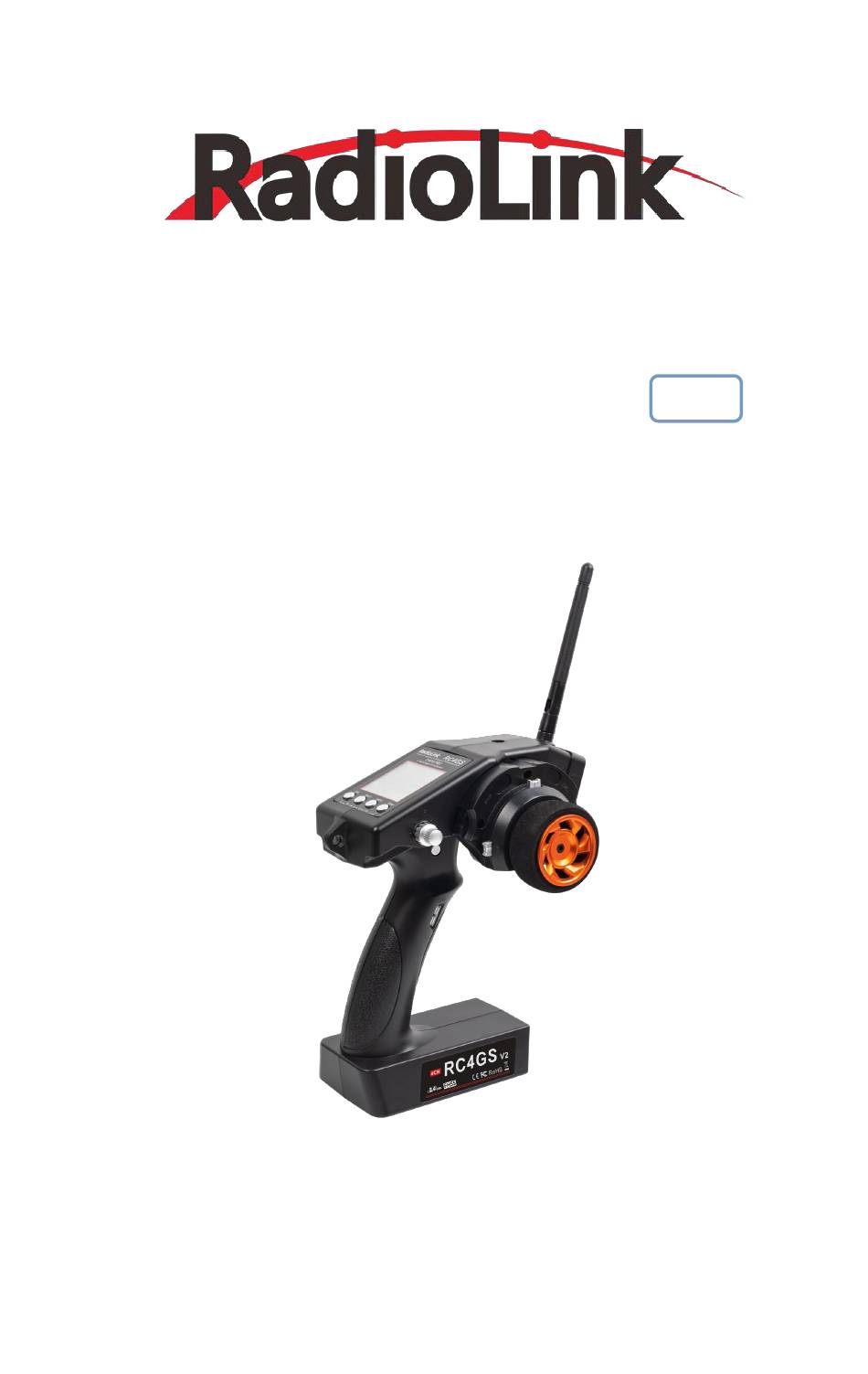

- Page 1 RC4GS Instruction Manual V1.4 Adaptable to RC Cars/Boats/Robot RoHS Technical updates and additional programming examples available at https://www. radiolink.com...

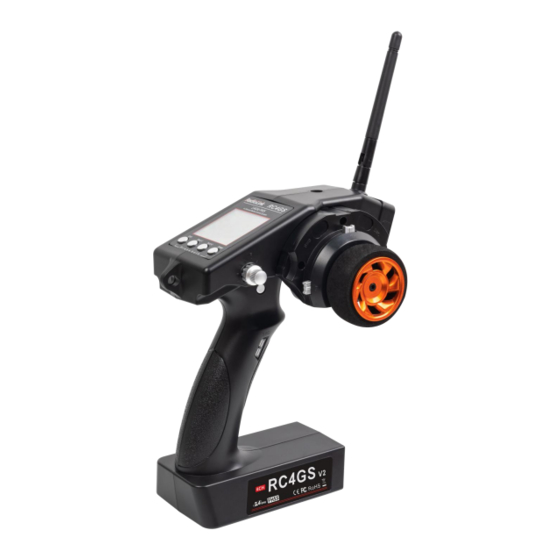

- Page 2 RadioLink Electronic Limited www.radiolink.com Thank you for choosing Radiolink 2.4 GHz 4CH radio -- RC4GS V2. RC4GS V2 is default 4 channels transmitter and works with a receiver R6FG which with gyro integrated and high voltage servo supported. RC4GS V2 OVERVIEW...
- Page 3 RadioLink Electronic Limited www.radiolink.com SAFETY PRECAUTIONS Never operate your model during adverse weather conditions. Poor visibility can cause disorientation and loss of control of your model. Never use this product in a crowd and illegal area. Always ensure the trim levers at 0 and battery properly charged before connecting the receiver.
- Page 4 When binding is done, there’s signal tower on top middle of the screen. As there’s no amplifier module added on R6FG, the signal telemetry from receiver is about 80m(262.5ft). If the distance is longer than 80m, the signal tower may disappear but the control range of RC4GS V2 is as long as 400m(1312ft).
- Page 5 RadioLink Electronic Limited www.radiolink.com Note The telemetry of model voltage can only be realized with the receiver R7FG/R8F. Binding 1. Put the transmitter and the receiver close to each other (about 50 centimeters) and power both on. 2. Switch on the transmitter and the led on R6FG will start flashing slowly.
- Page 6 STD in GYRO setting of the menu to adjust gyro sensitivity with buttons Dec(-) and Inc(-). RC4GS Mix Control Setup RC4GS V2 can be used to control dual-engine models like tracked vehicle has two motors and each track is driven by each motor.
- Page 7 ”-”means Master and Slave move to different directions at the same time For more detailed information on function setting please refer to the product user manual on www.radiolink.com RC4GS V2 Specification R6FG Specification Size: 35*20*13mm (1.05"*0.6"*0.39") Size: 213 *117 * 115.5mm(6.39”*3.51”*3.46”) ...
