- Page 1 RC6GS V3 Instruction Manual 使用说明书 CE FCC RoHS...
- Page 2 (2) Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Packing list (Please refer to the sales interface for the actual packing list) Items Quantity RC6GS V3 Transmitter R7FG Receiver EXT Connect Cable for F7FG Lanyard Instruction Manual...
-
Page 3: Table Of Contents
Contents I. RC6GS V3 Remote Control System .................................. 4 1.1 Transmitter RC6GS V3 ....................................4 1.1.1 Transmitter Overview ..................................4 1.1.2 Switch/Button Introduction ..................................4 1.1.3 Specifications ..................................... 4 1.1.4 Basic Operations ....................................5 1.2 Receiver R7FG(Standard Pack) ................................... 5 1.2.1 R7FG Overview ....................................5 1.2.2 Specifications ..................................... - Page 4 3.6 Dual Rate Function on RC6GS V3 ................................15 3.7 EPA Function on RC6GS V3 ..................................15 3.8 Set Different ALARM for 30 Different Models on RC6GS V3 ........................15 3.9 ID Seed Function on RC6GS V3 ................................15 3.10 Cruise Control Function on RC6GS V3 ..............................15 3.11 Connect RC6GS V3 to TBS Crossfire ...............................15...
-
Page 5: Rc6Gs V3 Remote Control System

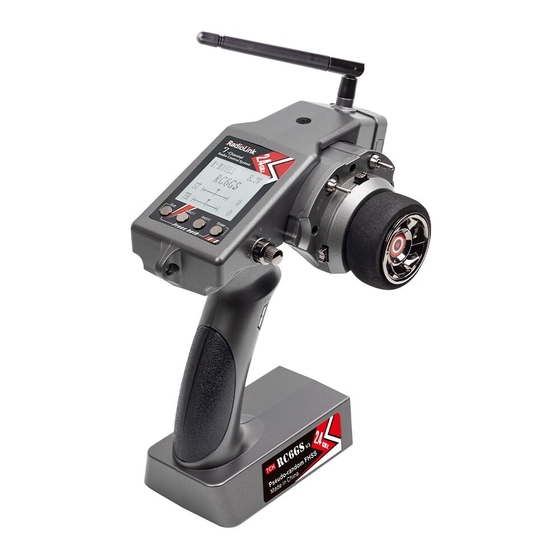

I. RC6GS V3 Remote Control System 1.1 Transmitter RC6GS V3 1.1.1 Transmitter Overview 1.1.2 Switch/Button Introduction Switch/Button Introduction Function Steering wheel Default control channel 1 steering. Customizable to control other channels Throttle trigger Default control channel 2 throttle. Customizable to control other channels Knob switch Default control channel 3. -
Page 6: Basic Operations
Model Battery Voltage Telemetry: Maximum 8S (33.6V) model battery voltage telemetry Compatible Receiver: R7FG(Standard)/R8FG/R8EF/R8F/R6FG/R6F/R4FGM/R4F 1.1.4 Basic Operations Display on LCD Screen 1.2 Receiver R7FG(Standard Pack) 1.2.1 R7FG Overview RC6GS V3 comes with an R7FG, 2.4GHz 7 channels receiver, splash-proof, gyro integrated and high voltage servo supported. -
Page 7: Specifications
Note: Too close distance between the transmitter and receiver may cause a signal block, which leads to unsuccessful binding or signal loss. After the binding is successful, if RC6GS V3 and R7FG receiver are too close (for example, within 60 centimeters), the signal may also be lost because of signal block. -
Page 8: Gyro Setup
1.2.7 Telemetry of Model Battery Voltage Model battery voltage can be returned in real time when R7FG receiver is bound to RC6GS V3 successfully. It can be set in the menu “19. ALARM”. For example, if it is 3S lithium battery used in the model car, the warning value should be set as 11.1V (3.7V*3). The connection is as... -
Page 9: Rc6Gs V3 Functions
II. RC6GS V3 Functions 2.1 Servo Value After powering on RC6GS V3, press the "Exit" button on the main interface to view the servo value (See Picture 1 and Picture 2 below). 2.2 Language "LANGUAGE"（语言选择） Both English and Chinese menus are available (See Picture 3 below). -
Page 10: Steering Exponential "Stexp
2.5 Steering Exponential "STEXP" This function is used to change the sensitivity of the steering servo around the neutral and both ends position. It has no effect on the maximum servo travel. RATE: Steering EXP rate Adjustment range：-100%~0%~+100% Initial value: 0% 0%~-100%: Sensitivity around neutral position is low, getting higher when approaching ends. -
Page 11: Function "A.b.s
Adjustment method for SPEED1 Adjustment method for SPEED2 MODE: Speed type selection MODE: Speed type selection ALL: Speed adjustment LOW: Low side range speed adjustment HIGH: High side range speed adjustment TGP1: Low and medium speed switching point Adjustment range Adjustment range 0~100 (each direction) LOW: 0~100... -
Page 12: Throttle Acceleration "Accel
2.10 Throttle Acceleration "ACCEL" Function which adjusts the movement characteristic from the throttle neutral position. The servo will jump to the input position at its maximum possible speed. Unlike exponential, which adjusts the whole throttle movement into a curve, throttle acceleration simply "jumps" away from neutral and then leaves the remaining response linear. -
Page 13: Brake Side Adjustment "Atl
Note: When it is set to NULL, the channel will not be controlled by any switch. 2.18 Model Name "NAME" RC6GS V3 stores model memories for 30 models. Each model memory can be named separately according to user’s requirement. Factory default name is MODEL1. -
Page 14: Gyro Sensitivity "Gyro
1. When ID SEED function is turned off (set INH), RC6GS V3 can control multiple devices at the same time. 2. When ID SEED function is turned on (set ON), RC6GS V3 can select a receiver from multiple receivers and control this model, while other receivers are on standby. -
Page 15: Dsc Port Setting "Dsc
Picture 3 2 axis track mode: If you need to connect FPV goggles with 2 axis track function to RC6GS V3, set the mode to: 2 axis track (or head track in firmware below V6.7.7). When the DSC mode is selected as 2 axis track or head track, the DSC port of RC6GS V3 outputs in channel 5 and channel 6 by default. -
Page 16: Factory Reset "Reset
III. Tutorials Please search Radiolink_official on YouTube to access RadioLink official channel and check all the below video tutorials of RC6GS V3. View the playlist of RC6GS V3 or search key words on our channel for the function you want.
