Summary of Contents for RadioLink RC4GSV3

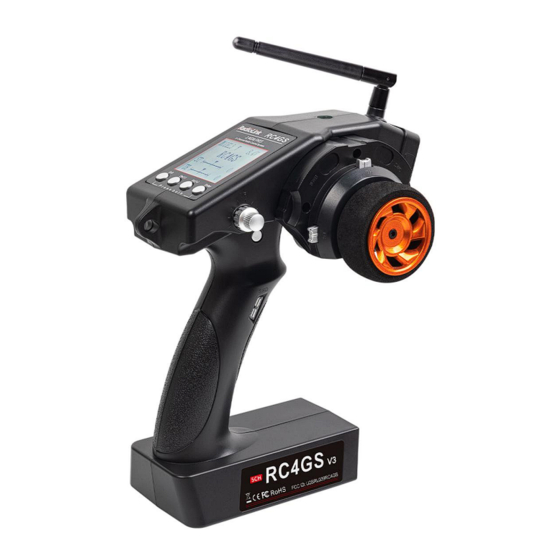

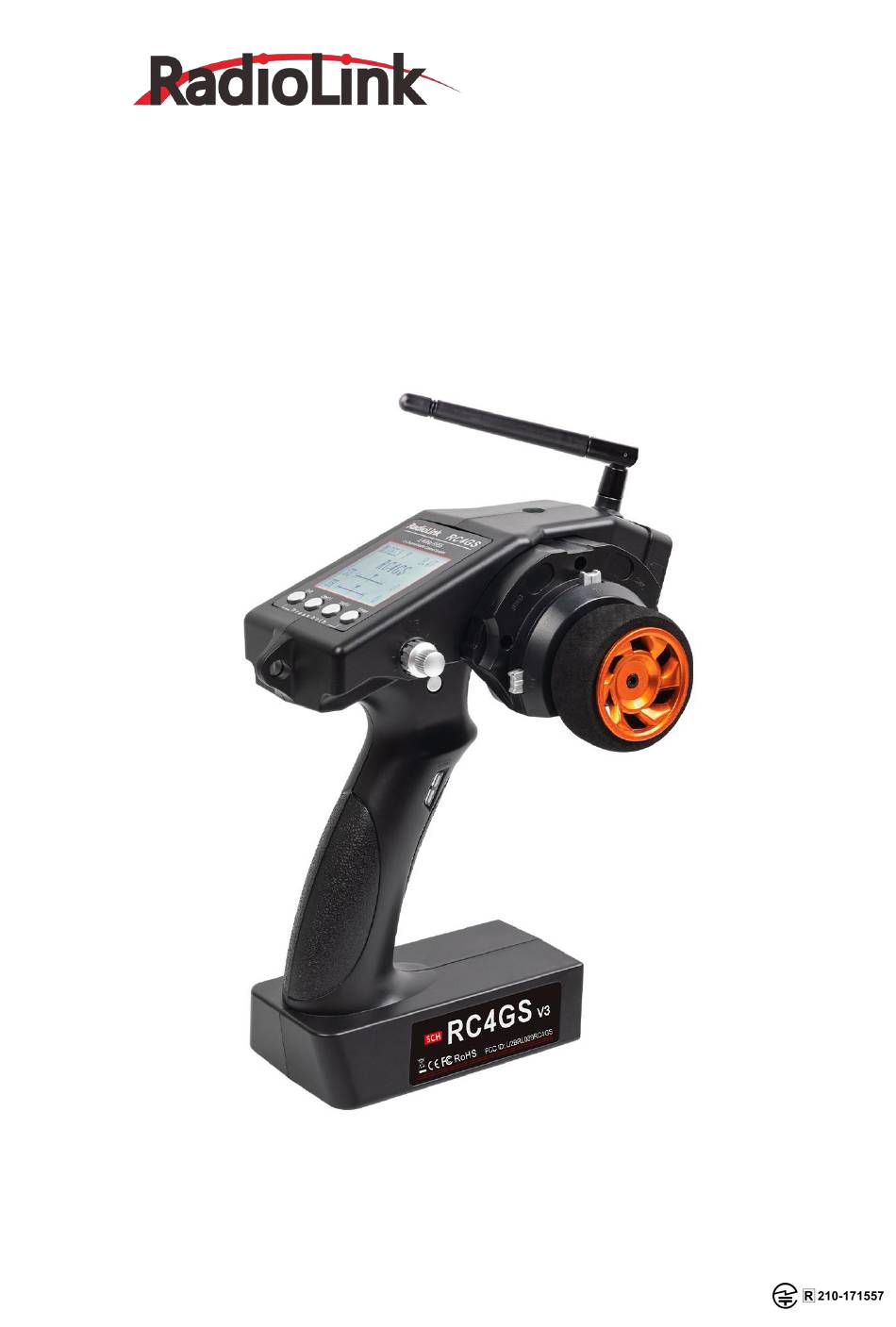

- Page 1 RC4GS V3 Instruction Manual 使用说明书 CE FCC RoHS...
- Page 2 SAFETY PRECAUTIONS Never operate your model during adverse weather conditions. Poor visibility can cause disorientation and loss of control of your model. Never use this product in a crowd and illegal area. Always ensure the trim levers at 0 and battery properly charged before connecting the receiver. ...
-
Page 3: Table Of Contents
Contents I. RC4GS V3 Remote Control System ........................4 1.1 Transmitter RC4GS V3 ............................4 1.1.1 Transmitter Overview ..........................4 1.1.2 Switch/Button Introduction ........................4 1.1.3 Specifications ............................4 1.1.4 Basic Operations ............................5 1.2 Receiver R6FG(Standard Pack) ......................... 5 1.2.1 R6FG Overview ............................5 1.2.2 Specifications ............................6 1.2.3 Binding .............................. - Page 4 2.22 ID SEED ................................13 2.23 Timer Setting “TIMER” ............................ 13 2.24 Factory Reset “RESET” ..........................14 III. Tutorials ................................14 3.1 Firmware Update of RC4GS V3 ........................14 3.2 Throttle and Steering Calibration ........................14 3.3 Connect RC4GS V3 to Simulator ........................14 3.4 THSPD Throttle Delay Function on RC4GS V3 ....................14 3.5 TIMER Function on RC4GS V3 ........................
-
Page 5: Rc4Gs V3 Remote Control System
I. RC4GS V3 Remote Control System 1.1 Transmitter RC4GS V3 1.1.1 Transmitter Overview 1.1.2 Switch/Button Introduction Switch/Button Introduction Function Steering wheel Default control channel 1 steering. Customizable to control other channels Throttle trigger Default control channel 2 throttle. Customizable to control other channels Knob switch Default control channel 3. -
Page 6: Basic Operations
1.1.4 Basic Operations Display on LCD Screen 1.2 Receiver R6FG(Standard Pack) 1.2.1 R6FG Overview Receiver packed with RC4GS V3 is R6FG, 2.4GHz 6 channels, gyro integrated and high voltage servo supported. -
Page 7: Specifications
R6FG Connection 1.2.2 Specifications Size: 35*20*13mm (1.38*0.79*0.51") Weight: 6g (0.21 oz) Channel: 6 channels Antenna Length: 205mm(8.07") Operating Current: 30mA Operating Voltage: 3-15V Control Distance: 400 meters Signal: PWM Gyro: With gyro-integrated, customizable gyro sensitivity Applicable Model Types: Car (Including Crawlers/Tanks/Caterpillars)/Boat/Robot 1.2.3 Binding RC4GS V3 and R6FG have already finished binding by default. -
Page 8: Gyro Setup
(2) Gyro Function Working Mode Both GREEN and RED LED on. 1.2.6 Gyro Setup The gyro function of receiver R6FG for professional car can be enabled and disabled. When it’s enabled, the turning stability can be maximized during competition. When there is false position, gyro function keeps the car straight forward and turn precisely. A. -
Page 9: Rc4Gs V3 Functions
2. Short press the Exit button twice in the home page to enter the return information interface. RSSI is at the top of the interface in Picture 2. 3. Make the receiver antenna and transmitter antenna parallel, and keep a distance of about 20 centimeters from the transmitter(as shown below) to observe the RSSI value. -
Page 10: Steering Servo Speed Delay "Stspd
0%~-100%: Sensitivity around neutral position is low, getting higher when approaching ends. 0%: Sensitivity around the neutral and ends position is equal 0%~+100%: Sensitivity around neutral position is high, getting lower when approaching ends 2.6 Steering Servo Speed Delay "STSPD" Quick steering operation will cause momentary under steering, loss of speed, or spinning. -
Page 11: Function "A.b.s
2.9 A.B.S. Function "A.B.S" Pulse brake When the brakes are applied while cornering with a 4 Wheel Drive or other type of vehicle, under-steer may occur. The generation of under-steer can be eliminated and corners can be smoothly cleared by using this function. Operation - When the brakes are applied, the throttle servo will pulse intermittently. -
Page 12: Idle-Up "Idlup
"100%": Maximum acceleration(Approximately1/2of the forward side steering angle) Forward acceleration amount(FWRD): 0%~100% Initial value: 0% (2) Brake side acceleration adjustment "0%": No acceleration "100%": Maximum acceleration (Brake side maximum steering angle) Brake side acceleration amount(BRAK): 0%~100% Initial value: 0% 2.11 Idle-up "IDLUP" 2.11.1 Idle-up at Engine Start Use this function to improve the starting characteristics of the engine by raising the idling speed when starting the engine of a gas powered car. -
Page 13: Mix Control Setup
RPM telemetry functions are still under development. If there are new developments, we will announce them to the RadioLink official website as soon as possible. The transmitter default alarm voltage is 7.2V, and it can be customized on 2-4S battery .The receiver default alarm voltage is 4.0V, and the vehicle battery default alarm voltage is 11.1V. -
Page 14: Gyro Sensitivity "Gyro
When the above alarm interface appears, press Enter button, the TX, RX, EX, or RS will appears respectively on the home page for reminding the alarm of the transmitter, receiver, vehicle battery, and RSSI (See Pictures below). When the alarm sounds or the warning words of TX, RX, EX, or RSSI appears on the screen, please stop driving immediately and take the vehicle back, check the cause of the alarm, and deal with it properly. - Page 15 III. Tutorials Please search Radiolink_official on YouTube to access RadioLink official channel and check all the below video tutorials of RC4GS V3. View the playlist of RC4GS V3 or search key words on our channel for the function you want.
