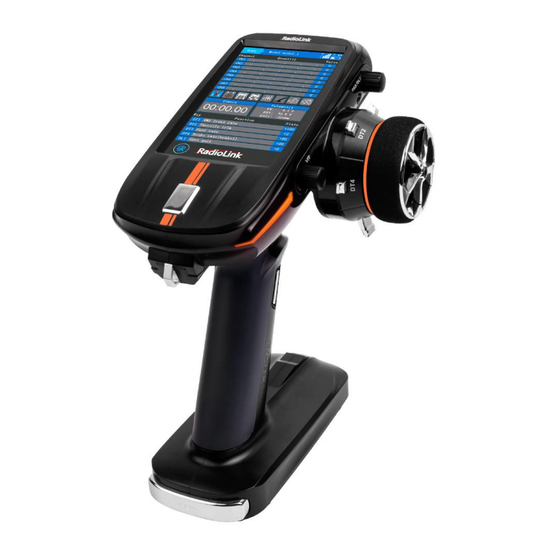

RC8X
Quick Start Guide
（FHSS, 8-Channel Digital Proportional RC System）
Adaptable to RC Cars/Boats/Robots
CE FCC RoHS
Note: For more detailed information on function setting of RC8X, please refer to RC8X
user manual on
www.radiolink.com/rc8x_manual
For detailed information on how to update the firmware of RC8X, please refer to
www.radiolink.com/rc8x_firmware

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC8X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RadioLink RC8X

Summary of Contents for RadioLink RC8X

  • Page 1 （FHSS, 8-Channel Digital Proportional RC System） Adaptable to RC Cars/Boats/Robots CE FCC RoHS Note: For more detailed information on function setting of RC8X, please refer to RC8X user manual on www.radiolink.com/rc8x_manual For detailed information on how to update the firmware of RC8X, please refer to...

  • Page 2: Table Of Contents

    Safety Precautions…………………………………………………..........3 Packing List…………………………………………………............. 3 Specifications………………………………………………............. RC8X Overview……………………………………………............6 Button Introduction……………………………………............7 Three Position Switch………………………………............. 7 Menu Introduction………………………………..............8 Power on RC8X..……………………..............8 Icon Introduction..……………………..............8 Basic Functions…………………………………………............9 Transmitter Low Voltage Alarm……………………............10 R8FG Introduction………………………………………............... 10 Binding………………………………………………...................

  • Page 3: Safety Precautions

    8 pieces AAA batteries，a 2S-4S LiPo battery or a 6S Ni-MH battery is permitted. Never charge the RC8X with the USB port. The Type-C port on the left of RC8X is used to  update firmware, copy data, supply power to the 5.8G image transmission module, and temporarily supply power to RC8X.

  • Page 4: Specifications

    7 ～ 17V DC (8 pieces of AAA batteries or a 2S-4S LiPo battery or a 6S Operating Voltage Ni-MH battery); Output Voltage ： 5 V(RC8X can be powered by computer or mobile power bank via Type-C cable) Type-C Port Output Current ：...
  • Page 5 3ms, 4ms, 14ms can be selected (If you want to select 3ms or 4ms Response Latency digital servo speed, make sure it is R8FG V2.1, or R8FG receiver with a factory date of 2023/4/26 and later ) RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS Compatible (3-position switch version)/RC4GS (version with P.D AFTER 180101) Transmitter...

  • Page 6: Rc8X Overview

    3ms, 4ms, 14ms can be selected (If you want to select 3ms or 4ms Response Latency digital servo speed, make sure it is R4FGM V2.1, or R4FGM receiver with a factory date of 2023/4/26 and later ) Compatible RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GSV2/RC6GS/ Transmitter RC4GS/T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG) RC8X OVERVIEW...

  • Page 7: Button Introduction

    Type-C port to supply 5V power to RC8X. Note: 1. When the USB Type-C port is used to supply power to RC8X, please remove the battery to avoid over-discharging. 2. The maximum input voltage of the RC8X Type-C port is 5V.

  • Page 8: Three Position Switch

    DT button to check the servo display. MENU INTRODUCTION Power on RC8X Long press the HOME button for about 1.5 seconds to power on RC8X. Click the icon in the lower left corner of the home page to enter the setting page. Icon introduction...

  • Page 9: Basic Functions

    RadioLink Electronic Limited www.radiolink.com RC8X Basic Functions Language Steering delay Theme setting Throttle delay Backlight Cruise control Sound Idle up Battery Trigger setting (Trigger) System Racing Vibration setting Traction control menu menu LED setting A.B.S HOME button setting Motor Start...

  • Page 10: Transmitter Low Voltage Alarm

    7.4V for 2S LiPo battery (3.7V*2=7.4V), 11.1V for 3S LiPo battery , and 14.8V for 4S LiPo battery. Setting steps: turn on your RC8X, enter into System menu - Battery, and then adjust the alarm voltage. R8FG INTRODUCTION RC8X is packed with an 8-channel receiver R8FG, splash-proof, gyro integrated, and high voltage servo supported.

  • Page 11: Receiver Setting

    For example: If you want to use R7FG with RC8X, you need to select FHSS V1 and then bind them. If FHSS V2 is selected, binding will not be successful.

  • Page 12: Receiver Connection

    2. The receivers that compatible with the RC8X is keep updating, please pay attention to RadioLink official website www.radiolink.com to get the latest firmware to check the newly launched receiver.

  • Page 13: Low Model Voltage Alarm Setting

    RadioLink Electronic Limited www.radiolink.com Attention: 1. Reverse polarity protection circuit design for all 8 channels of R8FG ensures vital components are protected from a reverse polarity connection. But, the JST connector which is packed with R8FG for connecting to the battery cannot reverse polarity connect, or it will lead to the wrong voltage value telemetry.

  • Page 14: Working Mode Setting

    RadioLink Electronic Limited www.radiolink.com 8/S.BUS S.BUS S.BUS Working mode setting 1．Turn on/off the gyro: Short press the binding button 3 times within 2 seconds to switch the gyro on and off, and the color of the LED indicator will switch accordingly.

  • Page 15: Gyro Reverse

    You can also assign other switches to control the gyro function or adjust the sensitivity on this page. For more after-sales service: Please send mail to: after_service@radiolink.com.cn The detailed Electronic Instructions could be downloaded from RadioLink: www.radiolink.com/rc8x_manual Thank you again for choosing our product.
