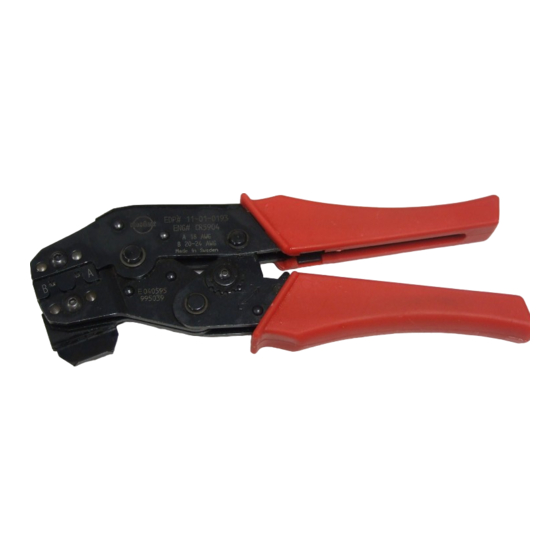

CR5904 Hand Crimp Tool for "SPOX" .156 Cent.
FEATURES
Œ
Small handle spread which make this style tool ideally suited for end users
Œ
Ratchet with safety release that ensures consistent performance
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
SCOPE
DEFINITION OF TERMS
BRUSH
STRIP
LEN
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
CONDITIONS:
After crimping, the conductor profiles should measure the following (see notes on page 3).
Terminal
Series No.
5194
5194
5194
5194
Doc No. 11-01-0193
Release Date: 04-13-93
Revision: E
Revision Date: 07-28-04
HAND CRIMP TOOL
Operating Instruction and
Specification Sheet
Order No. 11-01-0193 (CR5904)
Terminal
Wire Size
Series No.
AWG
mm²
5194
18 - 24
0.80-0.20
BELL MOUTH
INSULATION
CRIMP
Cond. Crimp
Wire Size
Height (Ref)
2
AWG mm
mm
In.
18
0.80
1.16-1.26
.046-.050
20
0.50
0.99-1.09
.039-.043
22
0.35
0.98-1.08
.039-.043
24
0.20
0.95-1.05
.037-.041
Insulation Diameter
Strip Length
mm
In.
mm
1.30-3.00
.051-.118
3.00-3.50
CONDUCTOR
CRIMP
CRIMP HEIG
Punch Width (Ref)
Cond.
Ins.
mm
In.
mm
In.
1.70
.067
2.80
.110
1.70
.067
2.80
.110
1.70
.067
2.80
.110
1.70
.067
2.80
.110
UNCONTROLLED COPY
In.
.118-.138
BEND UP
ROLLING
TWISTING
BEND
DOWN
Pull Force Min.
Profile
N
Lb.
A
B
89.0
20.00 X
57.8
13.00
X
40.0
9.00
X
28.5
6.40
X
Page 1 of 4
