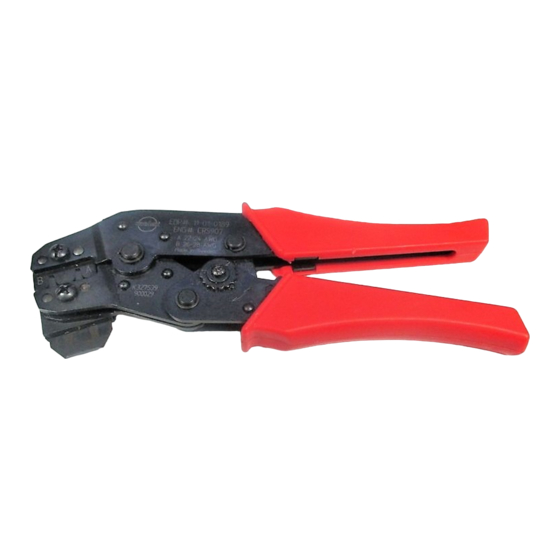

CR5907 Hand Crimp Tool for "SPOX" Terminals
FEATURES
Œ
Small handle spread which make this style tool ideally suited for end users
Œ
Ratchet with safety release that ensures consistent performance
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
SCOPE
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
CONDITIONS:
After crimping, the conductor profiles should measure the following (see notes on page 3).
Terminal
Series No.
5103
5103
5103
5103
Doc No. 11-01-0189
Release Date: 04-13-93
Revision: C
Revision Date: 07-27-04
HAND CRIMP TOOL
Operating Instruction and
Specification Sheet
Order No. 11-01-0189
Terminal
Wire Size
Series No.
AWG
mm²
5103
22 - 28
0.35-0.08
BELL MOUTH
INSULATION
CRIMP
Cond. Crimp
Wire Size
Height (Ref)
2
AWG
mm
mm
In.
22
0.35
0.67-0.77
.026-.030
24
0.20
0.66-0.76
.026-.030
26
0.12
0.66-0.76
.026-.030
28
0.08
0.65-0.75
.025-.029
(CR5907)
Insulation Diameter
Strip Length
mm
In.
mm
1.20-1.90
.047-.075
2.54-3.17
CONDUCTOR
CRIMP
CRIMP HEIGHT
Punch Width (Ref)
Cond.
Ins.
mm
In.
mm
In.
1.45
.057
1.90
.075
1.45
.057
1.90
.075
1.45
.057
1.90
.075
1.45
.057
1.90
.075
UNCONTROLLED COPY
In.
.100-.125
BEND UP
ROLLING
TWISTING
BEND
DOWN
Pull Force Min.
Profile
N
Lb.
A
B
44.5
10.00
X
28.9
6.50
X
17.8
4.00
X
11.1
2.50
X
Page 1 of 4
Advertisement
Related Manuals for molex CR5907
Summary of Contents for molex CR5907
- Page 1 CR5907 Hand Crimp Tool for “SPOX” Terminals HAND CRIMP TOOL Operating Instruction and Specification Sheet Order No. 11-01-0189 (CR5907) FEATURES Œ Small handle spread which make this style tool ideally suited for end users Œ Ratchet with safety release that ensures consistent performance Œ...
- Page 2 CR5907 Hand Crimp Tool for “SPOX” Terminals PRE-STRIPPED WIRE OPERATION Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles and the hand tool will spring open. Crimping Terminals TERMINAL 1.
- Page 3 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above) The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
- Page 4 CR5907 Hand Crimp Tool for “SPOX” Terminals PARTS LIST Item Number Order Number Description Quantity 11-11-0336 Locator Assembly** 11-11-0324 Spring (Main) 11-11-0320 Spring (Ratchet) ** Not all tools are equipped with a locator or locator blade. M4 NUT RATCHET RELEASE LEVER...
