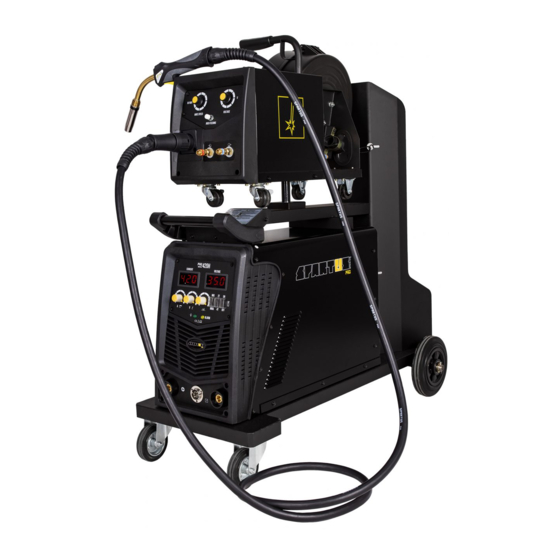

- Page 1 Semiautomatic welder SPARTUS® ProMIG 420H 420HW User’s manual...
- Page 2 Therefore, our offer covers such a wide assortment of products. Thank you very much for your trust in our company. We would like to invite you to familiarize yourself with the remaining products and offer at www.spartus. info or directly at a local distributor of SPARTUS® products.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. SAFE USE – HAZARDS ASSOCIATED WITH ARC WELDING AND PLASMA CUTTING ....2 1.1 General safety rules ................................... 2 1.2 Electric shock can kill ................................2 1.3 Welding arc radiation can be dangerous ......................... 3 1.4 Vapours and gases can be dangerous ..........................3 1.5 Noise can be harmful ................................ -
Page 4: Safe Use - Hazards Associated With Arc Welding And Plasma Cutting
USER’S MANUAL 1. SAFE USE – HAZARDS ASSOCIATED WITH ARC WELDING AND PLASMA CUTTING Arc welding and plasma cutting are processes feeder fitted with spool and harness). Care that can pose hazards for the operator and per- shall be taken during manual handling. sons in his vicinity. -
Page 5: Welding Arc Radiation Can Be Dangerous
USER’S MANUAL • Power supply must never be connected Such radiation can be direct or reflected from before the accessories of SK sockets/con- surfaces such as bright metals and light colo- nectors are properly installed in the device. ured objects. •... -
Page 6: Noise Can Be Harmful
USER’S MANUAL Arc welding and allied processes produce wel- in case of an emergency, are in the imme- ding fume which may pollute the atmosphere diate vicinity. surrounding the work. Welding fume is a vary- • In closed rooms or in certain circumstances ing mixture of airborne gases and fine particles during outdoor operations, it may be re- which, if inhaled or swallowed, constitute a... -
Page 7: Fire Or Explosion Hazard
USER’S MANUAL c) effective maintenance of sound protection • „Hot spots” and immediate surroundings devices, should be observed until their temperature d) indication as „ear protection areas” where has dropped to normal. applicable, 1.6.2 Explosion hazard e) restriction of entry to these „ear protection It is forbidden to heat up, cut or weld tanks, areas”... -
Page 8: Other Hazards
USER’S MANUAL 1.7.4 Moving elements can be dangerous • Special valve shield should always be in- stalled during cylinder transportation or when the cylinder is not used. OTHER HAZARDS Arc welding and allied processes carrying other hazards not listed before. All protective elements and device housing 1.7.1 Burns should be in place and in good technical con-... -
Page 9: Symbols Used In Instructions
USER’S MANUAL WARNING The maximum voltage of 15kV. Accidental pressing of the microswitch results in unintentional arc ignition. Never bring a bare hand close to the electrode, when the device is connected to a power source. 1.9 SYMBOLS USED IN INSTRUCTIONS We use this symbol to pay your attention about important information. -
Page 10: Assesment Of Area
Methods of reducing electromagnetic interference are listed in detail in the standard EN 60974-9 – „Arc welding equipment – Part 9: Installation and use”. 4. CONFORMITY WITH STANDARDS The SPARTUS® ProMIG 420H / SPARTUS® ProMIG 420HW is in conformity with the relevant Union harmonization legislation: LVD 2014/35/UE... -
Page 11: Rating Plate
Robust design allows installation of a large cylinder with shielding gas. So composed set can be moved easily due to durable wheels. SPARTUS® ProMIG series H and HW. This solution dedicated to specialized industrial applica- tions. Machines are ready to work in toughest conditions. -
Page 12: Technical Parameters Of Device
The device has a degree of protection IP21S. Which means that it is intended to be used in closed and covered areas and suitable for use outdoors. However it is not designed to be used outdoor during precipitation if it is not covered. 6.2 TECHNICAL PARAMETERS OF DEVICE SPARTUS® ProMIG SPARTUS® ProMIG 420HW 420H Input ~3 x 400V ±10% 50/60 Hz... -
Page 13: Installation And Use
USER’S MANUAL 7. INSTALLATION AND USE WARNING! SPARTUS® ProMIG 420H i 420HW machines are intended for professional and industrial applications. Installation and use of the device may only be carried out appropriately trained professionals. It is forbidden to grinding and/or carrying out other locksmith works or mechanical working of metal in the vicinity of the ventilation opening of unit. - Page 14 USER’S MANUAL Control panel Connection cable set – control socket SK socket „+” SK socket „–” ON/OFF switch Gas heater socket Water cooler connector Power cable ~400V Rating plate...
- Page 15 USER’S MANUAL 7.3.2 Wire feeder Wire speed Voltage EURO socket Coolant Connection – Input Coolant Connection – Output Connection cable set – control socket Connection cable set – current socket Gas inlet Coolant Connection – Output Coolant Connection – Input Wire inlet guide Tension adjustment knob Feeder rolls (drive roll –...
- Page 16 7.3.3 Water cooler Coolant Connection – Output Coolant Connection – Input ON/OFF switch Cooling liquid tank (inlet) Fuse 7.3.4 Connection cable ProMIG 420H ProMIG 420HW P10 P9 P5 P4 Control plug A Control plug B Current plug A Current plug B...
-
Page 17: Connecting To Power Supply
USER’S MANUAL 7.4 CONNECTING TO POWER SUPPLY Requirements for power network parameters (voltage, permissible range of mains voltage fluctuations etc.) are given in the table with technical parameters of device and on the rating plate of welding machine. Before connecting the unit to the power source: •... - Page 18 USER’S MANUAL 7.5.1 Connecting the gas cylinder 1. The cylinder with appropriate shielding gas, should be placed in a vertical position and se- cured against falling over in accordance with safety requirements (for gas cylinders under the influence). 2. Make sure that the valve cylinder is closed. 3.
- Page 19 USER’S MANUAL 4. Liquid cooled MIG gun: connect the end of liquid hose (hot water) to coupler 19 . 5. Liquid cooled MIG gun: connect the end of liquid hose (cold water) to coupler 20 . 7.5.5 Assembling welding wire into liner 1.
-
Page 20: Installation - Mma Welding
USER’S MANUAL INSTALLATION – MMA WELDING Before connecting hardware and shielding gas to the device, make sure that the device is discon- nected from power source and switch is in the OFF position. The welding polarity depends on the type of electrodes used. Before connecting the cables refer to the requirements specified by the manufacturer of electrodes. -
Page 21: Maintenance
USER’S MANUAL 8. MAINTENANCE WARNING! Before performing any maintenance or repairing of device, disconnect welding machine from the power source and wait at least 5 minutes. The voltage accumulated in capacitors should be discharged at this time to a safe level. But even after that operation you should be careful. Make sure that the device is disconnected from the power source, and switch is in the OFF posi- tion, before connecting accessories and shielding gas to the device. -
Page 22: Troubleshooting
10. TROUBLESHOOTING Not all problems with functioning of the device, are the evidence of failure. You can independently carry out an analysis in search of probable failure. In case of doubt, please contact to SPARTUS® dealer or authorized service center. - Page 23 A masterly combination of high quality production, excellent parameters and ergonomics – these are fea- tures of the SPARTUS® Master series of devices, which were created with demanding welding jobs in mind. Precision, functionality, excellent parameters and resistance to high workloads –...
- Page 24 Videopresentation of products Subscribe to the channel SPARTUS.INFO...
