- Page 1 Crestron CWD6922 Two-Way RF Transceiver Module Operations Guide...
- Page 2 To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least 20 centimeters from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter. All brand names, product names and trademarks are the property of their respective owners. ©2010 Crestron Electronics, Inc.
-
Page 3: Table Of Contents
Crestron CWD6922 Two-Way RF Transceiver Module Contents Two-Way RF Transceiver Module: CWD6922 ..........1 Functions and Features ......................1 Specifications ........................2 Physical Description ......................2 Setup............................ 4 Labeling ..........................4 Documentation ........................4 Contents • i Operations Guide - DOC. -
Page 5: Two-Way Rf Transceiver Module: Cwd6922

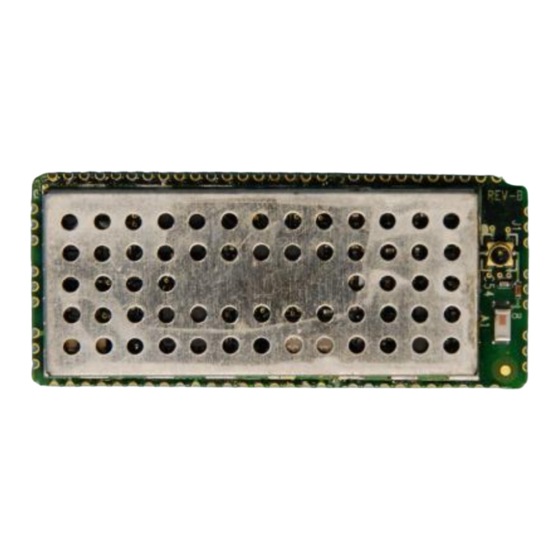

The module operates according to the IEEE 802.15.4 specification and can be configured to minimize the possibility of interference with other devices. The module receives RF signals from one or more Crestron devices and can transmit these signals over the air for further processing (depending on the application). -
Page 6: Specifications
Two-Way RF Transceiver Module Crestron CWD6922 Specifications The table below is a summary of specifications for the CWD6922. Specifications of the CWD6922 SPECIFICATION DETAILS Power Requirements 0. 825 Watts (5VDC @ 0.165A) Operating Frequency 2400 MHz to 2483.5 MHz (802.15.4 compliant) Operating Ranges¹... - Page 7 PWMA ADC2 GPIO 12-16 Reserved Reserved Reserved PWMB ADC3 GPIO Reserved 17-20 GPIO Reserved UART RX Reserved GPIO GPIO Reserved UART TX SCLK GPIO Reserved Reserved MOSI GPIO GPIO Two-Way RF Transceiver Module: CWD6922 • 3 Operations Guide - DOC.
-
Page 8: Setup
20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” 4 • Two-Way RF Transceiver Module: CWD6922 Operations Guide - DOC. - Page 9 Crestron CWD6922 Two-Way RF Transceiver Module This page is intentionally left blank Two-Way RF Transceiver Module: CWD6922 • 5 Operations Guide - DOC.
