- Page 1 Crestron CWD1014 Two-Way RF Transceiver Module Operations Guide...
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2007 Crestron Electronics, Inc.
-
Page 3: Table Of Contents
Crestron CWD1014 Two-Way RF Transceiver Module Contents Two-Way RF Transceiver Module: CWD1014 ........... 1 Introduction..............................1 Functions and Features ......................1 Specifications ..........................2 Physical Description.........................2 Industry Compliance ........................4 Setup................................7 Hardware Hookup........................7 End Product Labeling.......................8 Documentation ..........................8 Contents • i Operations Guide - DOC. 6658... -
Page 5: Two-Way Rf Transceiver Module: Cwd1014

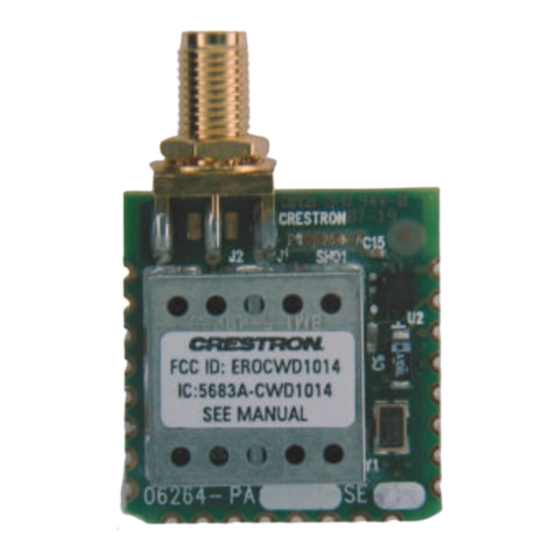

The module receives RF signals from one or more Crestron devices and can transmit these signals over the air or over a cable run for further processing (depending on the application). -
Page 6: Specifications
Two-Way RF Transceiver Module Crestron CWD1014 Specifications The table below is a summary of specifications for the CWD1014. Specifications of the CWD1014 SPECIFICATION DETAILS Power Requirements 0.75 Watts (3.3VDC @ 0.250A) Operating Frequency 2400 MHz to 2483.6 MHz (802.15.4 compliant) Operating Ranges¹... - Page 7 Reserved (No Connection) (active low) Reserved Reserved (No Connection) Reserved (No Connection) Reserved SPI CLK Reserved SPI MOSI Reserved SPI MISO VCC 3.3V Reset (active low ) SPI_CE (active low) Two-Way RF Transceiver Module: CWD1014 • 3 Operations Guide - DOC. 6658...
-
Page 8: Industry Compliance
Industry Compliance Labeling Requirements If the FCC ID on the CWD1014 is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID:... - Page 9 If any cable or antenna other than that provided with the CWD1014 is used, then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for reevaluating the end product (including the transmitter) and obtaining a separate FCC authorization.
- Page 10 When transferring data through the transmitter, ensure that packet lengths do not violate the above duration requirement; otherwise the FCC compliance will be degraded and will invalidate the Grant of Authorization. 6 • Two-Way RF Transceiver Module: CWD1014 Operations Guide - DOC. 6658...
-
Page 11: Setup
Hookup Connections for CWD1014 POWER-I/O: PROVIDES POWER AND SYSTEM ANTENNA: TRANSMITS INTERFACE AND RECEIVES RF SIGNALS For more information on these connectors, refer to “Ports” on page 3. Two-Way RF Transceiver Module: CWD1014 • 7 Operations Guide - DOC. 6658... -
Page 12: End Product Labeling
20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” 8 • Two-Way RF Transceiver Module: CWD1014 Operations Guide - DOC. 6658... - Page 13 Crestron CWD1014 Two-Way RF Transceiver Module This page intentionally left blank Two-Way RF Transceiver Module: CWD1014 • 9 Operations Guide - DOC. 6658...
- Page 14 Crestron Electronics, Inc. Operations Guide - DOC. 6658 15 Volvo Drive Rockleigh, NJ 07647 04.08 Tel: 888.CRESTRON INTERNAL USE ONLY Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
