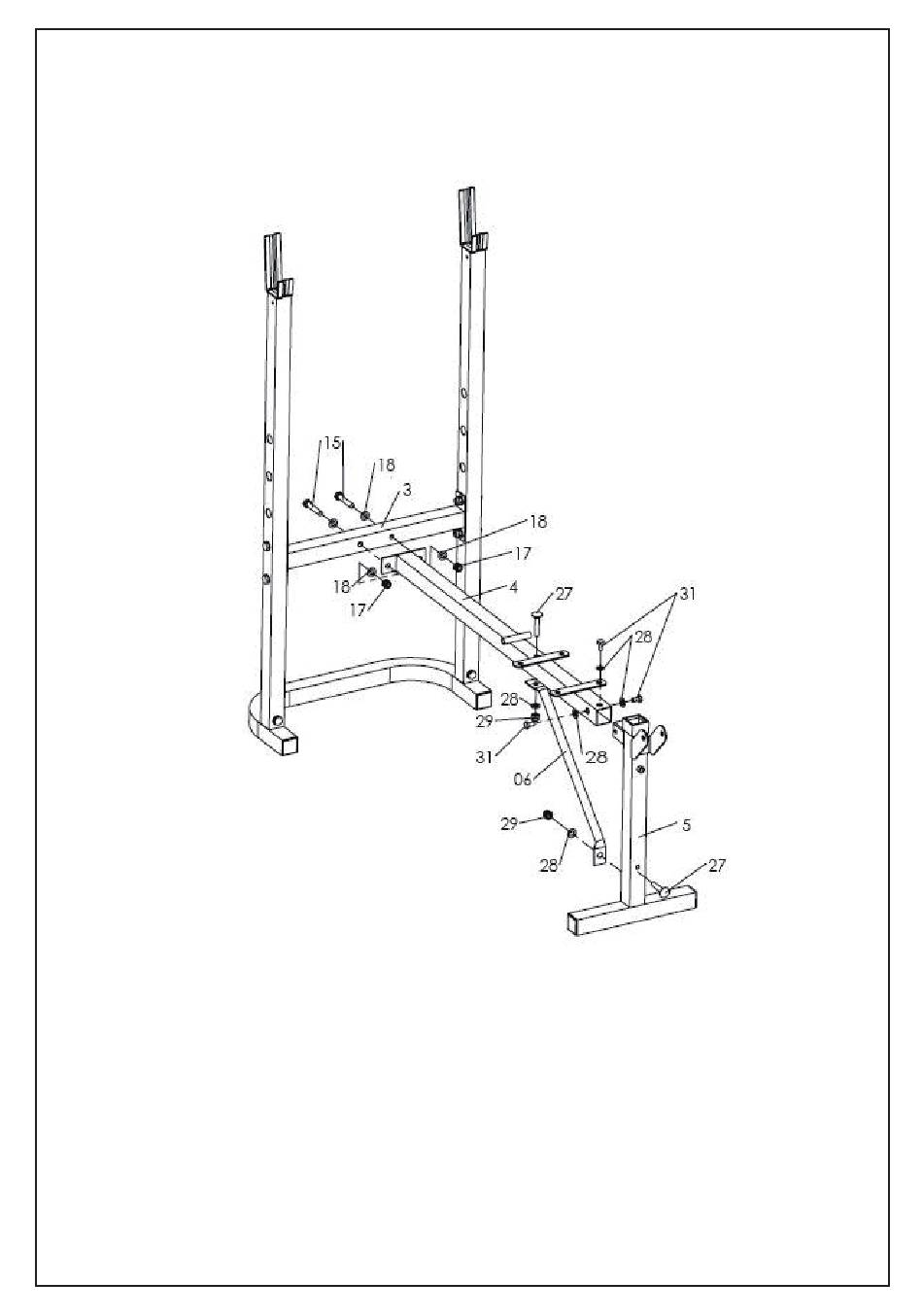

ASSEMBLY STEPS
STEP 2
1) Attach Base Frame (04) onto Connect tube (03), fastened with x 2 Hex Head Bolt (15), x
4 Washer (18) and x 2 Nylon Lock Nut (17).
2) Insert Front post (05) into Base frame (04), fastened with x 3 Hex head bolt (31) and x 3
Washer (28).
3) Attach Support plate (06) onto Base frame (04) and Front Post (05), securing x 2 Hex
head bolt (27), x 2 washer (28) and x 2 Nylon nut (29).
