ASSEMBLY STEPS

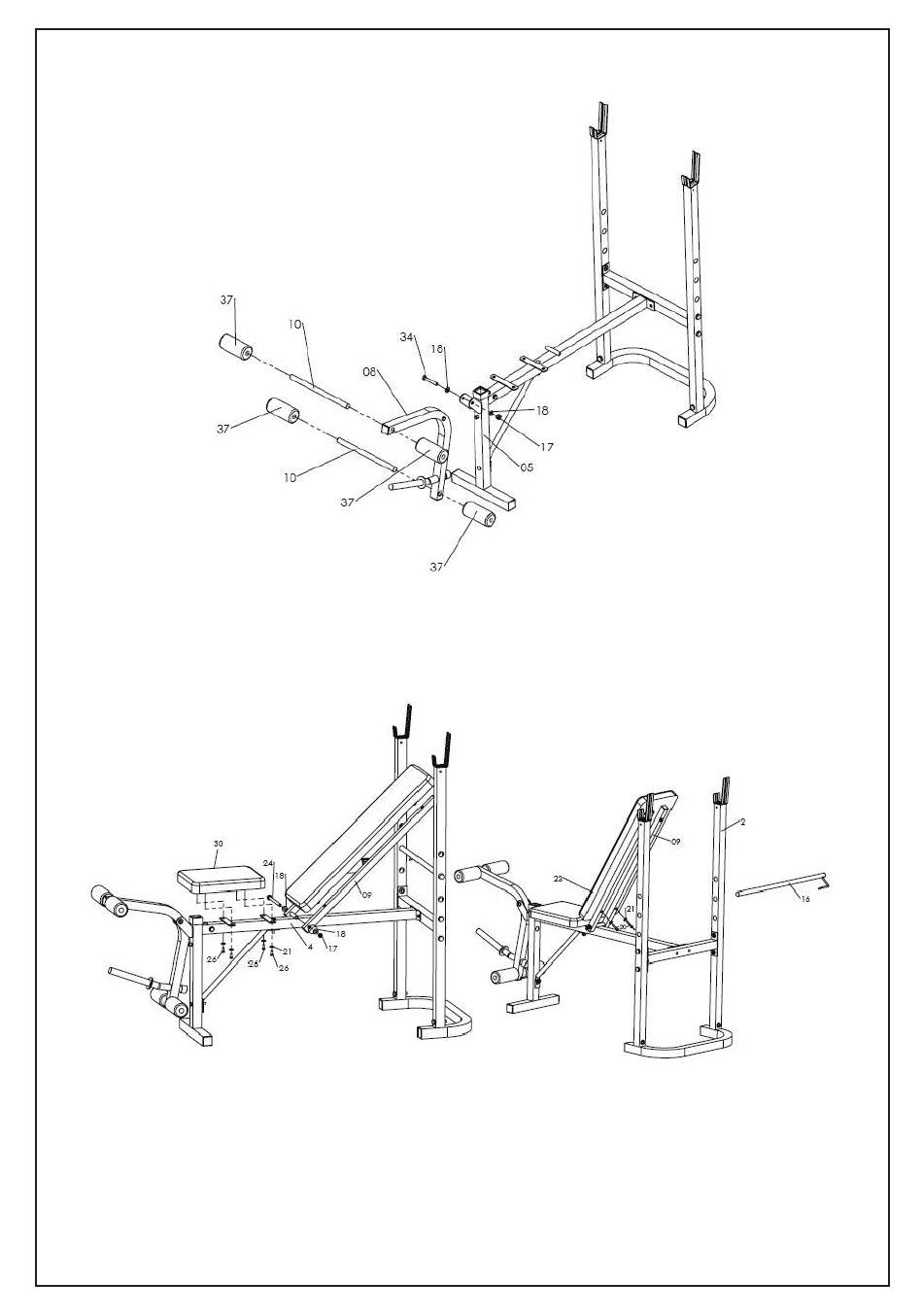

STEP 3
1) Insert the Foam tube (10) into Leg curl(08) and insert the Foam Grip(37) into Foam
tube(10), and then attach Leg curl (08) onto Front post(05), tightened with x 1 Hex head
bolt(34), x 2 washer(18) and x 1 nylon nut(17).
STEP 4
1) Attached Seat (30) onto Base Frame (04), tightened with x 4 Hex head bolt (26) and x 4
Washer (21). Attached Back cushion (23) onto Back cushion support tube (09), fastened x
4 Hex head bolt (20) and x 4 Washer (21).
2) Slide Adjustment Rod (16) through Weight support tube (02) and place Back Cushion
(23) onto Adjustment Rod (16).
