Installation
1.
Disconnect power to the keypads by turning off all
circuit breakers connected to the HomeWorks
Processor or keypad link auxiliary power supply.
Danger - Wiring with power ON may result in
personal injury.
2.
Address keypads. Assign a unique address to
each keypad using the DIP switch on the back of
the keypad. See Figure 2 (page 3) for DIP switch
location. See Figure 3 (page 4) for DIP switch set-
tings. Be sure to record the address for future pro-
gramming purposes.
3.
Strip insulation from wires to 3/8" (10mm). Each
terminal will accept one or two 18-gauge (1.0mm
wires.

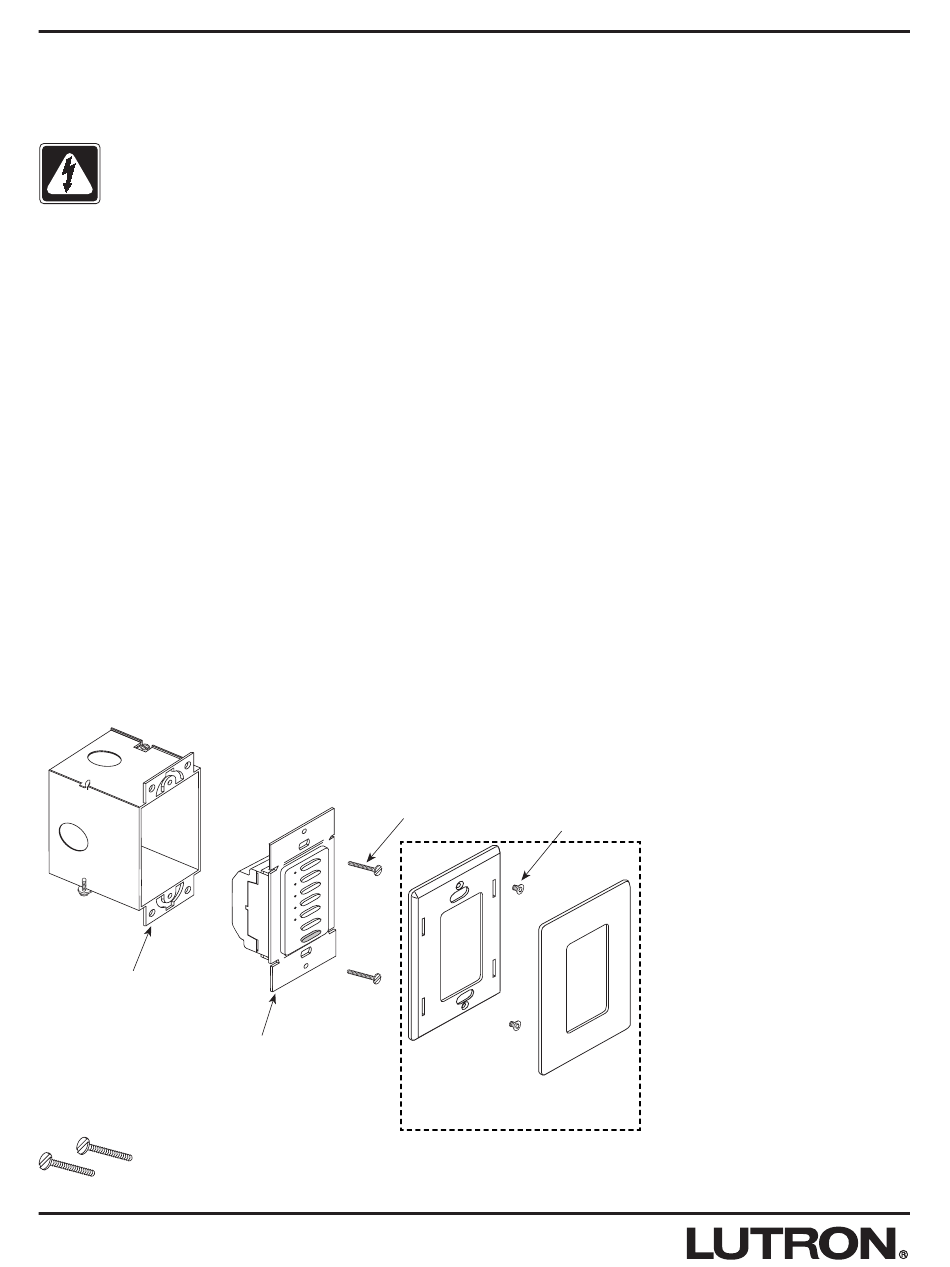

Mounting Diagram
Wallbox
Included:
Mounting Screws (2)
2
Keypad
Mounting
Screws
Keypad
Wallplate and Adapter are purchased separately.
4.
Unplug terminal block from the keypad circuit
board.
5.
Connect wiring to terminal block as shown in
®
Figures 1 and 2 (page 3).
6.
Plug the keypad terminal block back onto the cir-
cuit board. Be sure to orient the terminal block
correctly.
7.
Mount keypad as shown in Figure 4 (page 4). Do
not over-tighten mounting screws.
8.
Restore power to the HomeWorks Processor or
keypad link auxiliary power supply.
)
2
Adapter
Mounting
Screws
