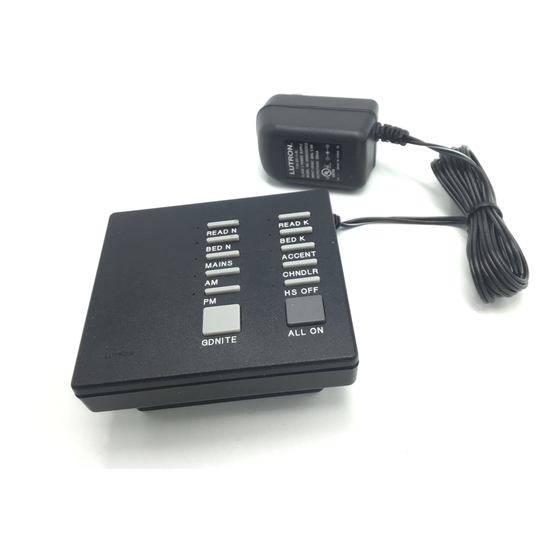

Lutron Electronics HRT-5KP-C Installation Instructions

Installation Instructions
Please Read Before Installing

Overview

RF Tabletop Keypads are for use with HomeWorks sys-
tems. The keypad buttons are programmed with a per-
sonal computer using the HomeWorks Utility.
Up to 32 keypads, each with a unique address, can be
assigned to each HomeWorks RF Processor.

Important Notes

Codes: Install in accordance with all local and national
electrical codes.
Power: Battery-powered models (-C only): Use only high
quality alkaline batteries, two (2) size AAA, 1.5V each.
Caution - Do not use rechargeable batteries.
Using improperly rated batteries could damage
the RF Tabletop Keypad.
All models (-A, -C): Use only the adapter provided by
Lutron with your RF Tabletop Keypad.
Caution - Using an adapter not rated for the
following specifications could damage the key-
pad and possibly overheat the adapter.
• Input: 120/127 VAC, 50/60 Hz
• Output: 9 VDC/300 mA Class 2
Environment: Ambient operating temperature:
32-104°F (0-40°C), 0-90% humidity, non-condensing.
Indoor use only.
Faceplates: Do not paint controls or faceplates.
Cleaning: To clean, wipe with a clean damp cloth. DO
NOT use any chemical cleaning solutions.
RF Device Placement: RF Tabletop Keypads must be
located within 30 feet (10m) of an RF Signal Repeater or
an RF Processor.
Setup: RF Tabletop Keypads will not function until they
are addressed and programmed. See the HomeWorks
Utility online help.

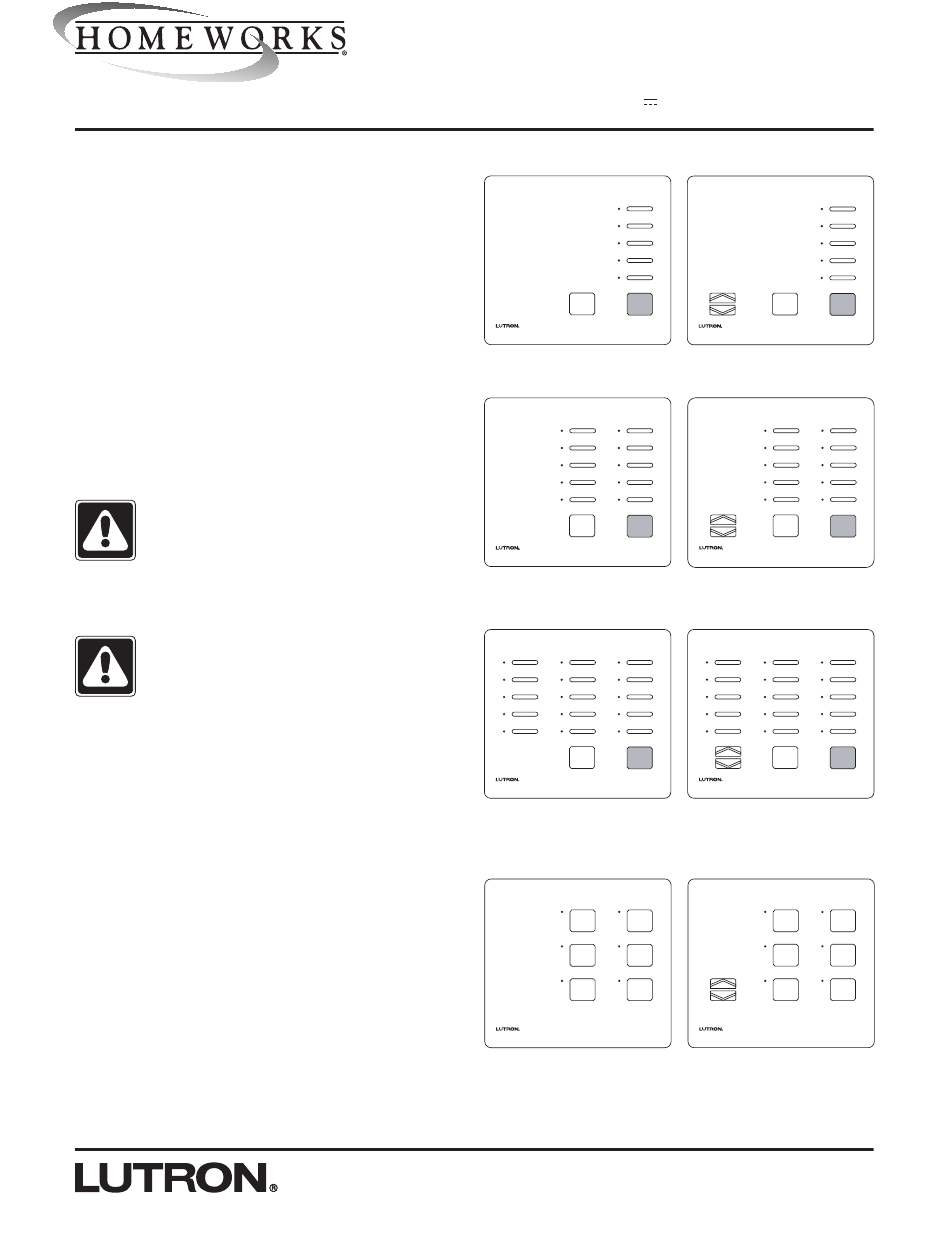

RF Tabletop Keypads
HRT-
5KP-A, -C 10KP-A, -C 15KP-A, -C 6LKP-A, -C
5RL-A, -C 10RL-A, -C 15RL-A, -C 6LRL-A, -C
120/127 V ~ , 50/60 Hz (9 V adapter, -A and -C models)
Batteries: 2 AAA size, 1.5V each (-C models)
HRT-5KP
HRT-10KP
HRT-15KP
HRT-6LKP
HRT-5RL
HRT-10RL
HRT-15RL
HRT-6LRL
