IP-7000RX

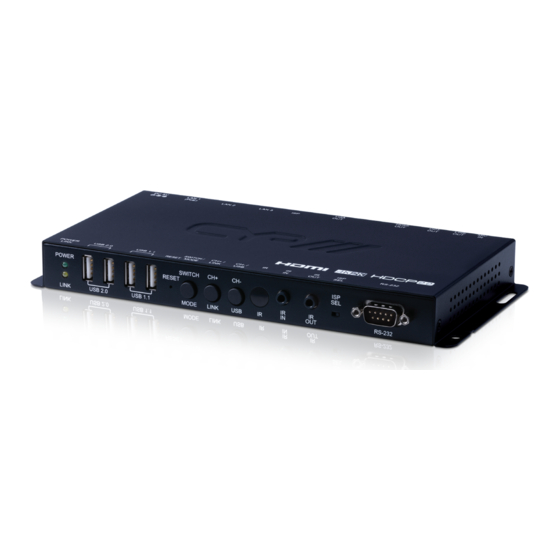

HDMI or VGA Video Extender (4K) over IP/CEC/PoE
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP-7000RX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP IP-7000RX

Summary of Contents for CYP IP-7000RX

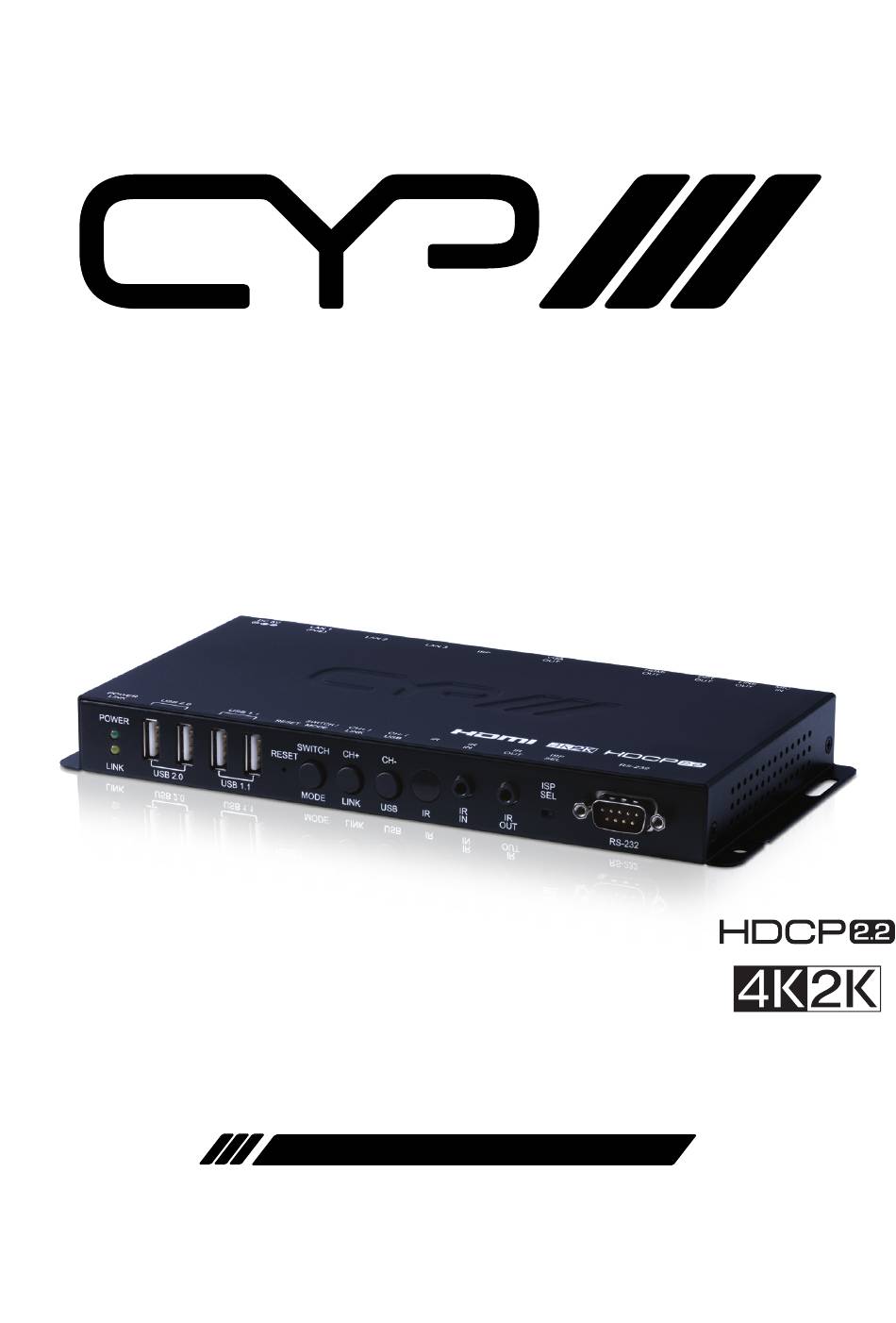

  • Page 1 IP-7000RX HDMI or VGA Video Extender (4K) over IP/CEC/PoE OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........7 4. System Requirements ......7 5. Features ..........8 6. Operation Controls and Functions ..9 6.1 Receiver's Front Panel ......9 6.2 Receiver's Rear Panel ......11 6.3 IR Cable Pin Assignments .....12 6.4 RS-232 Protocol ........12 6.5 Telnet Commands ........13 6.6 WebGUI Control ........25...

  • Page 6: Introduction

    1. INTRODUCTION This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM using the TCP/IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable.

  • Page 7: Package Contents

    3. PACKAGE CONTENTS 1×HDMI/VGA over IP Receiver with USB/KVM Extension 1×IR Extender Cable 1×IR Blaster Cable 1×5V/4A DC Power Adaptor 1×Power Cord 1×Operation Manual 4. SYSTEM REQUIREMENTS HDMI or VGA source equipment such as media players, video game consoles, PCs or set-top boxes. HDMI or VGA receiving equipment such as HDTVs, monitors or audio amplifiers.

  • Page 8: Features

    5. FEATURES HDMI 2.0 and DVI 1.0 compliant HDCP 1.4 & 2.2 compliant 1×HDMI output, 1×VGA output Video, audio and control transmission over TCP/IP in Unicast (point-to- point) or Multicast (single-to-many) modes Multi-monitor video wall support with 90° rotation HDMI output resolutions up to 4K@30Hz (RGB, 8-bit) Note: 4K@50/60Hz (YUV 4:2:0) sources are automatically converted to 4K@25/30Hz (RGB) for output VGA output resolutions up to WUXGA (RB)

  • Page 9: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Receiver's Front Panel POWER SWITCH RESET LINK USB 2.0 USB 1.1 MODE LINK RS-232 7 8 9 10 11 12 POWER LED: This LED will flash while the unit is powering on and will illuminate solidly once it is ready to be used.
  • Page 10 Channel +: Press this button momentarily to increase the streaming channel to the next available channel on the local network. Note: If no other channels are detected, the channel number will not change. Video Link: Press and hold the button for 3 seconds to enable or disable the Video Link.

  • Page 11: Receiver's Rear Panel

    baud rate is configurable, but the default baud rate is 115200. When the Transmitter is in multicast mode every connected Receiver unit can send RS-232 commands to the Transmitter and commands sent from the Transmitter side will be sent to all connected Receivers. 6.2 Receiver's Rear Panel LINE DC 5V...

  • Page 12: Ir Cable Pin Assignments

    6.3 IR Cable Pin Assignments IR Extender IR Signal Power Ground IR Blaster Power IR Signal 6.4 RS-232 Protocol TRANSMITTER RECEIVER Definition Definition ► ◄...

  • Page 13: Telnet Commands

    6.5 Telnet Commands 1. Help COMMAND DESCRIPTION AND PARAMETERS HELP Show the full command list. HELP N1 Show help details about command N1. N1 = {Any command name} 2. Network COMMAND DESCRIPTION AND PARAMETERS GET_IPCONFIG Show the current IP configuration. SET_IP_MODE N1 Set the IP configuration mode.
  • Page 14 2. Network COMMAND DESCRIPTION AND PARAMETERS SET_JUMBO_MTU N1 Enable/disable the jumbo frame MTU. Available values for N1: [Disabled] [Enabled] GET_JUMBO_MTU Show the jumbo frame MTU state. 3. System COMMAND DESCRIPTION AND PARAMETERS GET_HARDWARE_VERSION Show the current hardware version. FACTORY_RESET N1 Perform a factory reset on the unit and select the IP mode after the reset completes.
  • Page 15 4. Transmitter Specific COMMAND DESCRIPTION AND PARAMETERS SET_HDCP_ALLOW N1 Enable/disable HDCP encrypted source support. Available values for N1: [Disabled] [Enabled] GET_HDCP Show the current HDCP support state. SET_USB_MOUSE N1 Set the USB mouse performance mode. Available values for N1: [High resolution mode] [Compatibility mode] GET_USB_MOUSE Show the current USB mouse performance...
  • Page 16 4. Transmitter Specific COMMAND DESCRIPTION AND PARAMETERS SET_VW_LAYOUT N1 N2 {N3} Set the video wall’s total horizontal and vertical display count. N1 = 1~16 [Horizontal display count] N2 = 1~16 [Vertical display count] N3 = 0~255 [Target Rx {Optional}] Note: Target Receiver number can be obtained by turning on the Video Wall OSD.
  • Page 17 4. Transmitter Specific COMMAND DESCRIPTION AND PARAMETERS SET_VW_HSCALE N1 {N2} Set the video wall display’s horizontal zoom amount. N1= 0~99999 [Zoom amount in 1 pixel units] N2 = 0~255 [Target Rx {Optional}] Note: Target Receiver number can be obtained by turning on the Video Wall OSD. Omitting N2 makes the setting global to all Receivers.
  • Page 18 4. Transmitter Specific COMMAND DESCRIPTION AND PARAMETERS SET_VW_DELAY N1 {N2} Set the video wall display delay. N1 = 0~99999 (Delay in microseconds) N2 = 0~255 [Target Rx {Optional}] Note: Target Receiver number can be obtained by turning on the Video Wall OSD. Omitting N2 makes the setting global to all Receivers.
  • Page 19 5. Receiver Specific COMMAND DESCRIPTION AND PARAMETERS SET_OUTPUT_RES N1 Set the output resolution. Available values for N1: [640×480@60Hz] [800×600@60Hz] [1024×768@60Hz] [1280×768@60Hz] [1280×800@60Hz] [1280×1024@60Hz] [1360×768@60Hz] [1366×768@60Hz] [1440×900@60Hz] [1400×1050@60Hz] [1600×900@60Hz] [1600×1200@60Hz] [1680×1050@60Hz) [1920×1200@60Hz) [Bypass] [Auto-Detect] [480i@60Hz] [576i@50Hz] [480p@60Hz] [576p@50Hz] [720p@60Hz] [720p@50Hz] [720p@30Hz] [720p@25Hz] [1080i@60Hz] [1080i@50Hz]...
  • Page 20 5. Receiver Specific COMMAND DESCRIPTION AND PARAMETERS SET_OUTPUT_RES N1 [1080p@25Hz] [1080p@24Hz] Note: Downscaling is limited to 1/2 of the horizontal/vertical pixels of the source. For example: 3840×2160 (4K) to 1920×1080 (1080p) is OK, but 3840×2160 (4K) to 1280×720 (720p) or 640×480 is not. When outputting to a video wall, the resolution of the entire video wall together (rather than each individual display) should be used for...
  • Page 21 5. Receiver Specific COMMAND DESCRIPTION AND PARAMETERS SET_VW_POS N1 N2 Set the position within the video wall of the display connected to this Receiver. (Cannot exceed the video wall’s horizontal and vertical display count.) N1 = 0~15 [Row] N2 = 0~15 [Column] GET_VW_POS Show the position within the video wall of...
  • Page 22 5. Receiver Specific COMMAND DESCRIPTION AND PARAMETERS SET_VW_SHIFT N1 N2 Set the video output shift of the display connected to this receiver. Available values for N1: [Shift up] [Shift down] [Shift left] [Shift right] N2 = 0~80000 [Pixel shift amount. Must be in increments of 8] GET_VW_SHIFT...
  • Page 23 6. Serial COMMAND DESCRIPTION AND PARAMETERS SET_SERIAL_BAUD N1 Set the Serial baud rate. Available values for N1: [300] [600] [1200] [2400] [4800] [9600] [19200] [38400] [57600] [115200] GET_SERIAL_BAUD Show the current Serial baud rate. SET_SERIAL_BITS N1 Set the number of Serial data bits. Available values for N1: [5 bits] [6 bits]...
  • Page 24 7. USB COMMAND DESCRIPTION AND PARAMETERS SET_USB_ALLOW N1 Enable/disable USB support. Available values for N1: [Disabled] [Enabled] GET_USB_ALLOW Show current USB support state. 8. Video COMMAND DESCRIPTION AND PARAMETERS VIDEO_SOURCE_HDMI Select HDMI as the video input source. VIDEO_SOURCE_VGA Select VGA as the video input source. Note: Commands will not be executed unless followed by a carriage return.

  • Page 25: Webgui Control

    6.6 WebGUI Control Important Notes - All major functions of the unit, including status, streaming method, streaming channel selection, output resolution, video wall configuration, EDID management, Ethernet settings, and reset/ firmware functions are controllable via multiple tabs in the WebGUI interface allowing for reasonably intuitive operation.
  • Page 26 a router directly as your network switch is discouraged. It is strongly suggested to avoid mixing your regular network traffic with VoIP streaming traffic and the VoIP traffic should exist within a separate subnet, at the minimum. 6.6.1 System Tab The System tab contains 4 windows that provide access to firmware version information, a firmware update interface, utilities for rebooting and resetting the unit, Telnet command entry, and a variety of statistics...
  • Page 27 Utilities The Utilities window allows users to reset the unit back to the factory defaults by clicking “Factory Default". The unit may be rebooted (without resetting settings) by pressing the “Reboot” button. Individual Telnet commands may also be sent to the unit by using the “Console API Command”...
  • Page 28 6.6.2 Video Wall Tab The Video Wall tab allows user to design, edit and manipulate a video wall system created using multiple Receiver units connected to identical displays. The bezel and video size of the displays being used, as well as the horizontal and vertical monitor count, is defined here.
  • Page 29 Bezel and Gap Compensation This section of the Video Wall tab is used to define the physical dimensions of each display being used in the video wall. Accurate measurements are needed of the monitor’s outer frame (OW, OH) and the video screen (VW, VH).
  • Page 30 - VW (Video Width): This is the horizontal measurement of the display’s video screen. - VH (Video Height): This is the vertical measurement of the display’s video screen. Note: Typically all monitors in a video wall are identical and have the same dimensions, but it is possible to use differently sized displays as long as the same measurement units are used to measure each display and the displays are still arranged in a normal rectangular layout with corners meeting at the...
  • Page 31 - Stretch Type: Set the video stretch method. - Selecting “Fit In” will expand the video to exactly fit the dimensions of the video wall regardless of the source’s original aspect ratio. - Selecting “Stretch Out” will zoom the video until the video wall is filled in all 4 dimensions while maintaining the aspect ratio of the original source.
  • Page 32 6.6.3 Network Tab The Network tab provides controls over the Receiver’s broadcast reception channel, IP configuration, and network broadcast mode. Changes made to the network settings will require a reboot of the unit. After clicking on “Apply” please follow the reboot instructions in the WebGUI. Note: If the IP address is changed then the IP address required for WebGUI access will also change accordingly.
  • Page 33 automatically assign itself an APIPA address from the 169.254.xxx.xxx range. When the unit is set to DHCP mode it will attempt to automatically obtain an IP address from a DHCP server. When the IP mode is set to static IP, you can manually set the IP address, netmask and gateway address.
  • Page 34 6.6.4 Functions Tab The Functions tab provides control over the Receiver’s output resolution, video loss settings, as well as a wide variety of optional features and functions, including USB and Serial control extension. Changes made to these settings typically require a reboot of the unit. After clicking on “Apply”...
  • Page 35 Video over IP This section allows control over many critical functions of the Receiver including: enabling/disabling the VoIP stream, enabling access to the Video Wall tab, controlling the scaler/output resolution, and controlling the behavior upon signal loss. - Enable Video over IP: Unchecking this checkbox will disable the VoIP stream completely.
  • Page 36 USB over IP This section provides controls for the USB over IP extension functionality, including enabling/disabling USB support, changing the USB operational mode, and enabling special compatibility modes. - Enable USB over IP: Unchecking this checkbox will completely disable support for USB over this stream. This option should generally remain checked, but, if USB support is not required, disabling this feature can save some bandwidth.
  • Page 37 disable support for sending RS-232 commands over this stream. This option should generally remain checked, but, if serial support is not required, disabling this feature can save a very small amount of bandwidth. - Serial Settings: Set the desired baud rate, data bits, parity, and stop bit for the RS-232 signal to extend.

  • Page 38: Connection Diagram

    7. CONNECTION DIAGRAM PC/Laptop Monitor DVD/Blu-ray Player HDMI 1.5m Loopback Input 60° 60° Output Powered RS-232 IR Input Speakers IR Output POWER LOOPBACK MODE RESET LINK RS-232 LINK Anti-DITHER LOOPBACK VGA & Analogue Analog Stereo DC 5V LAN (PoE) VGA IN HDMI IN LINE IN LINE OUT...

  • Page 39: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 340MHz/10.2Gbps Input Ports 3×Cat.5e/6/7 (LAN) 1×3.5mm (Microphone Audio) 1×IR Extender [3.5mm] Output Ports 1×HDMI 1×VGA 1×TOSLINK (S/PDIF Audio) 1×3.5mm (Stereo Audio) 1×IR Blaster [3.5mm] 1×RS-232 [9-pin D-sub] 4×USB Type A Supported Resolutions 480i@60Hz - 4K@30Hz (4:4:4, 8-bit) VGA@60Hz - WUXGA@60Hz (RB) IR Frequency 30 - 50kHz (30 - 60kHz under ideal conditions)

  • Page 40: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI 640×480p@60     720×480p@59/60   720×576p@50     800×600p@60     1024×768p@60     1280×720p@50/59/60     1280×768p@60  ...

  • Page 41: Audio Specifications

    8.3 Audio Specifications Supported Audio Formats: Supported Formats (kHz) HDMI Input HDMI Output LPCM 2.0@44.1/88.2/176.4   LPCM 2.0@32/48/96/192   LPCM 5.1@44.1/88.2/176.4   LPCM 5.1@32/48/96/192   LPCM 7.1@44.1/88.2/176.4   LPCM 7.1@32/48/96/192   Standard Bitstream  ...
  • Page 42 Unicast Data Transmission Mode: Audio Inputs Audio Outputs HDMI IN LINE IN MIC IN HDMI LINE OUT LINE OUT (TX) (TX) (RX) OUT (RX) (TX) (RX) ● ● ● ■ ■ ■ ● ■ ■ ■ ▲ ■ ▲ ■ ▲...

  • Page 43: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Cat.5e Category 5 (enhanced) Cable Cat.6 Category 6 Cable Cat.7 Category 7 Cable Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Internet Protocol Infrared Local Area Network LPCM...
  • Page 44 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.01...
