USER MANUAL

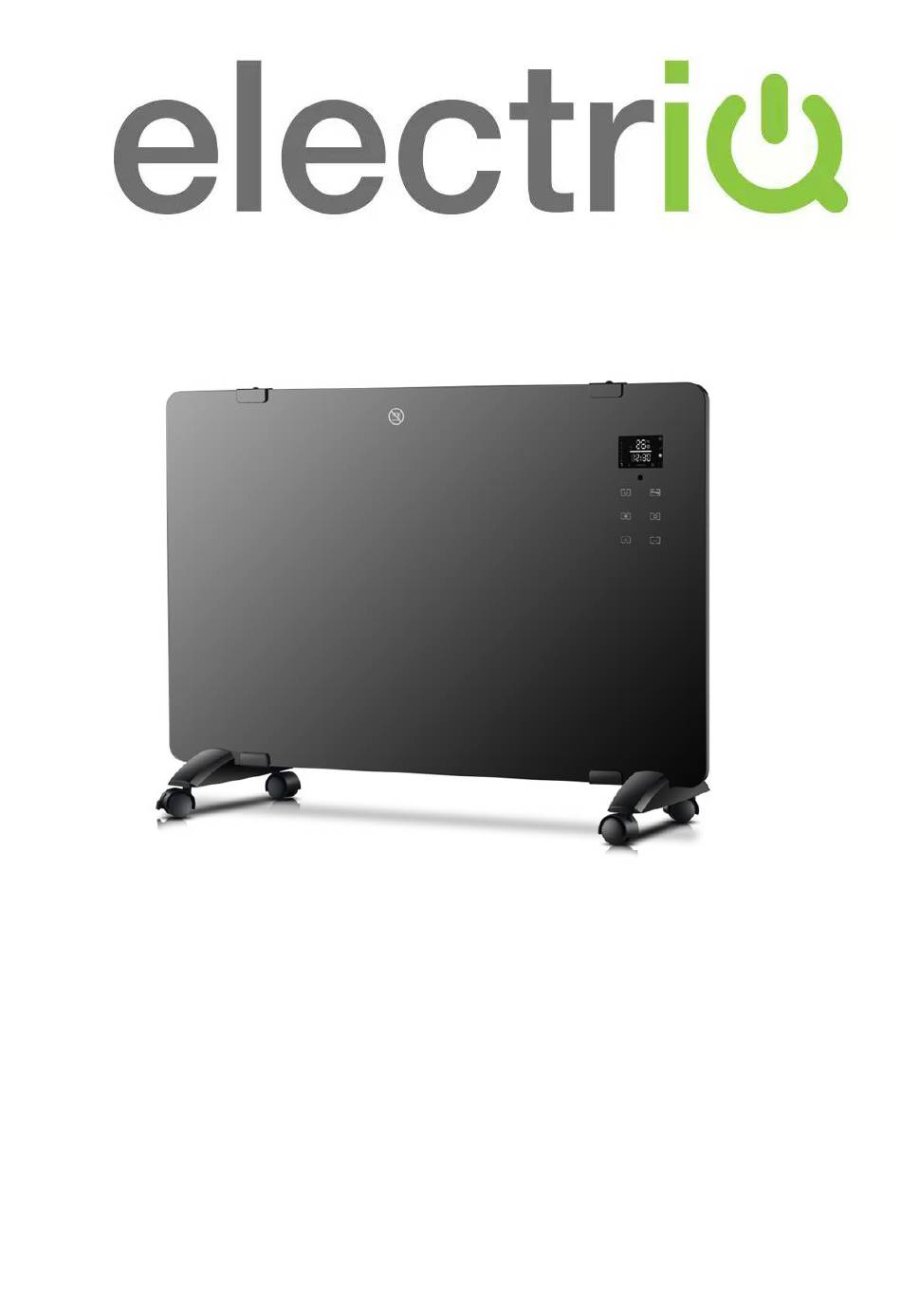

2.0 KW DESIGNER
GLASS PANEL HEATER
EGH20AW / EGH20AWB
Thank you for choosing electriQ
Please read this user manual before using this heater and keep it safe for future
reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals
THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED SPACES OR
OCCASIONAL USE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EGH20AWB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ElectrIQ EGH20AWB

Summary of Contents for ElectrIQ EGH20AWB

  • Page 1 Thank you for choosing electriQ Please read this user manual before using this heater and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED SPACES OR OCCASIONAL USE...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS SETTING THE UNIT UP PRODUCT OVERVIEW CONTROL PANEL DISPLAY QUICK USE GUIDE SETTING THE DAY AND TIME OPERATION TIMER SETTING UP THE APP USING THE APP CLEANING AND MAINTENANCE TROUBLESHOOTING TECHNICAL SPECIFICATIONS SUPPORT PRODUCT FICHE Page 2 of 23...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT  Carefully read the instructions before operating the unit  This appliance is for indoor use only.  Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet.  Installation must be in accordance with the regulations of the country where the unit is used.
  • Page 4 uneven surfaces and if wall-mounted, it must be securely attached to a suitable wall.  Do not move or tilt the unit.  Avoid keeping the unit in direct sunlight for a long period of time.  The heater is designed to be used at temperatures above -20°C. If it is exposed to temperatures below this, it must be allowed to warm above this level before operation.

  • Page 5: Setting The Unit Up

    SETTING THE UNIT UP FOR USE The appliance can be wall-mounted using the supplied mounting brackets, or alternatively can be set up as a portable heater using the supplied legs and castors. It is important that the unit is only operated if it is wall-mounted or has the castors fitted. ATTACHING THE FEET 1.

  • Page 6: Product Overview

    CONTROLLING THE HEATER STANDBY BUTTON PROGRAM BUTTON MODE BUTTON TIMER BUTTON DOWN BUTTON BUTTON Page 6 of 23...

  • Page 7: Display

    OPERATION SWITCHING ON THE HEATER Plug the heater into the power supply and turn on the power switch (on the side of the unit). You will hear a sound. This indicates that the power supply is now connected. The LED display will illuminate when the POWER button is pressed. 7 DAY TIMER CHILD TEMPERATURE...

  • Page 8: Operation

    OPERATION TURNING ON AND OFF The STANDBY button can be pressed to enter and exit standby mode. If the unit is not to be used for a while, we would advise for it to be turned off using the switch on the side and unplugged.

  • Page 9: Timer

    STANDBY TIMER With the unit running with the desired settings, press the TIMER button. The countdown timer symbol will illuminate and the unit will flash 00:00. Repeatedly press the TIMER button to increase the duration of the timer (upto a maximum of 24 hours).

  • Page 10: Setting Up The App

    CONNECTING THE APPLIANCE TO WIFI DOWNLOAD THE APP TO YOUR PHONE Download the ”TUYA SMART” app, from your chosen app store, using the QR codes below, or by searching for the app in your chosen store. Android Page 10 of 23...
  • Page 11 MODES AVAILABLE FOR SETUP The heater has two different setup modes, Quick Connection and AP (Access Point). The quick connection is a quick and simple way to set the unit up. The AP connection uses a direct local WiFi connection between your phone and the heater to upload the network details.
  • Page 12 REGISTER THE APP 1. Press on the register button Read the Privacy policy and 3. Enter your email address or at the bottom of the screen. press the Agree Button. phone number and press continue to register. 4. A verification code will be sent 5.
  • Page 13 SETTING UP YOUR HOME WITHIN THE APP TUYA is designed so it can work with a large number of compatible smart devices within your home. It can also be set up to work with multiple devices within different houses as such during the setup process the app requires that different areas are created and named to allow easy management of all your devices.
  • Page 14 CONNECTING USING THE QUICK CONNECTION METHOD Before initiating the connection, make sure the unit is in standby mode (Power switch ON, but unit turned off), with the WiFi indicator flashing twice per second. If not follow the instructions for changing the connection mode. Also ensure your phone is connected to the WiFi network.
  • Page 15 CONNECTING USING APP MODE ALTERNATIVE METHOD Before initiating the connection, make sure the unit is in standby mode, with the WiFi Light Indicator flashing once per second. If not follow the instructions for changing the WiFi connection mode. Also ensure your phone is connected to the WiFi network. (We advise turning mobile data off during setup) 1.

  • Page 16: Using The App

    CONTROLLING YOUR APPLIANCE THROUGH THE APP THE HOME SCREEN Each device has its own entry on the home screen to allow the user to either quickly turn the unit on or off, or to enter the device screen to make other changes. Voice Control: Press to Add Device: Add a device give verbal instructions for...
  • Page 17 DEVICE SCREEN The device screen is the main control screen for the heater, providing access to the controls to amend the functions and settings. Edit Name: Use to change Device Name Back: Returns to the Home the name of the heater Screen Current Mode: Shows the mode the heater is currently...
  • Page 18 SMART SCENES Smart Scenes is a powerful tool providing the option to customize the operation of the air heater based both on conditions within the room and outside influences. This gives the user the option of specifying much more intelligent actions. These are split into two categories Scene and Automation. SCENE Scene allows for a one-touch button to be added to the Home Screen.
  • Page 19 AUTOMATION Automation allows an automatic action to be set up for the device. This can be triggered by the Time, and a range of other influences, depending on what other TUYA enabled devices you have on the network. 1. Press on the Scene tab at the 2.
  • Page 20 PROFILE TAB The profile tab gives you the option to edit both your detail, and use the added features of the unit. HOME MANAGEMENT Home Management proves options for managing your TUYA account, giving options such as adding a home, adding and removing rooms, and sharing devices with family.

  • Page 21: Cleaning And Maintenance

    If the above solutions do not resolve the problem please contact the service centre. DECLARATION OF CONFORMITY Hereby, electriQ declares that this heater follows Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.electriQ.co.uk/content/declaration-of-conformity...

  • Page 22: Technical Specifications

    TECHNICAL DATA Model no. EGH20AWB / EGH20AW Voltage 220V-240V 2.0kW Frequency 50 / 60 Hz Max power 1000W/1800-2000W IP Rating IP24 Model colour White/ Black Product dimensions 830x85x460 electriQ UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line.

  • Page 23: Product Fiche

    Contact electriQ, Unit J6, Lowfields Business Park, Lowfields Way, Elland, Details West Yorkshire, HX5 9DA Page 23 of 23...
