Summary of Contents for ElectrIQ EGH25AWB

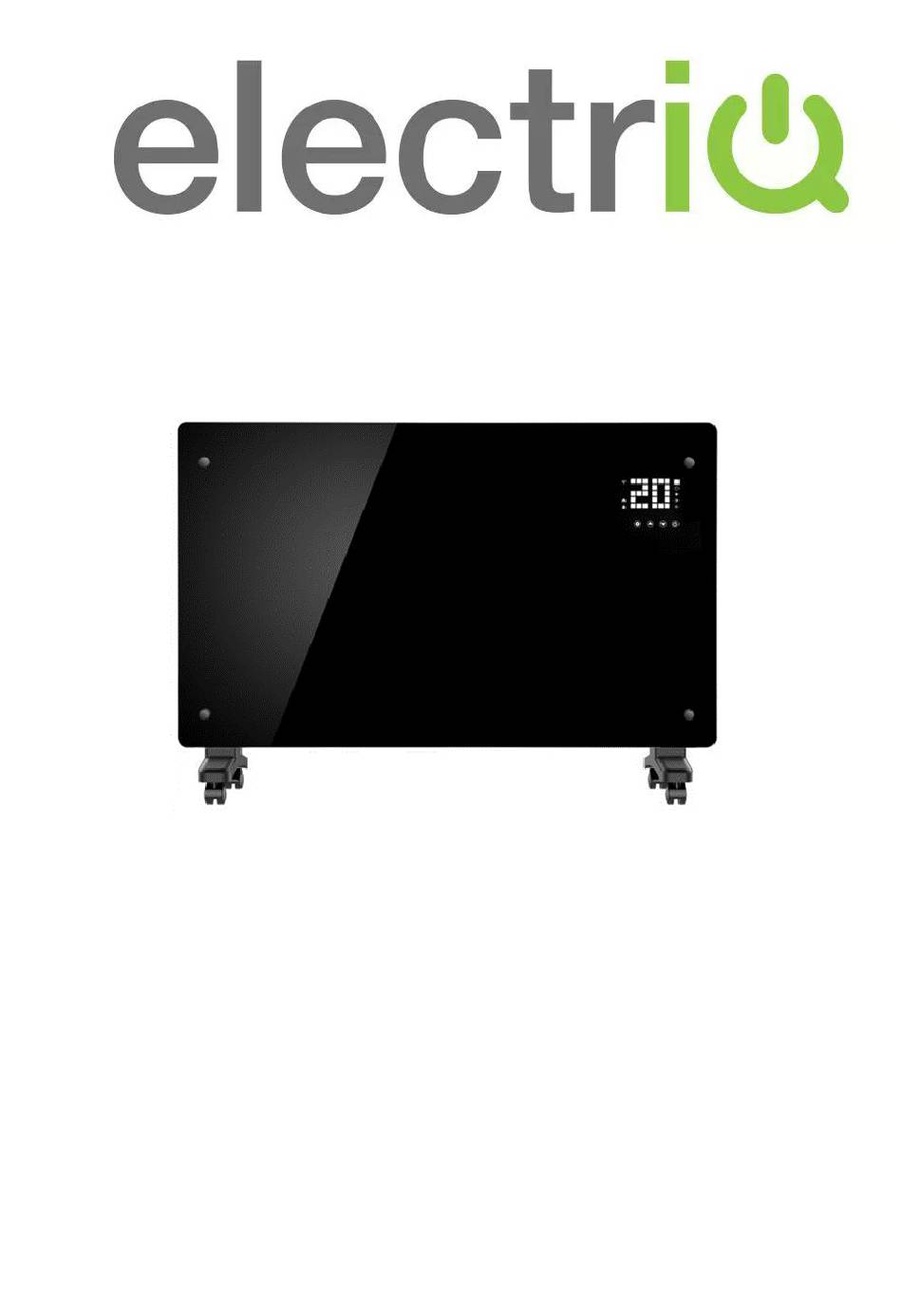

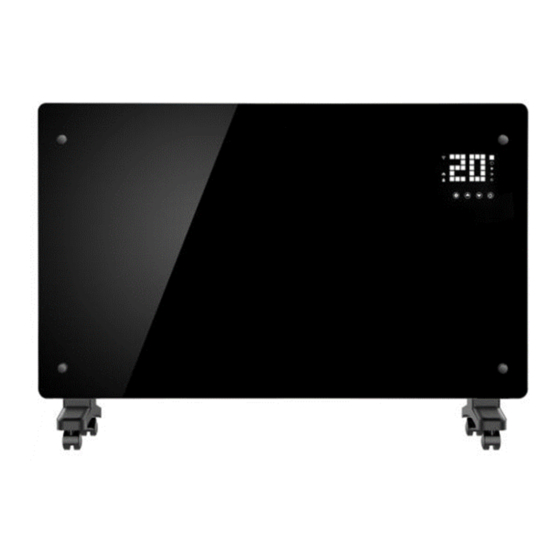

- Page 1 WALL MOUNTABLE CONVECTION PANEL HEATER EGH25AWB (Black) EGH25AW (White) Thank you for choosing electriQ Please read this user manual before using this heater and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
- Page 2 Page 2 of 25...
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS INSTALLING WITHIN A BATHROOM FEATURES PARTS LIST SETTING THE UNIT UP FOR USE ATTACHING THE LEGS WALL MOUNTING OPERATION SETTING UP THE APP USING THE APP CLEANING AND MAINTENANCE TROUBLESHOOTING TECHNICAL SPECIFICATIONS SUPPORT PRODUCT FICHE Page 3 of 25... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT • Carefully read the instructions before operating the unit. • This appliance is for indoor use only. • Rating: This unit must be only connected to a 230 V earthed outlet. • Installation must be in accordance with the regulations of the country where the unit is used. - Page 5 • Do not attempt to repair, disassemble or modify the appliance. This unit contains no user-serviceable parts. • Always unplug or disconnect the appliance from the mains power supply when not in use, or when moving or cleaning it. Do not pull the cord to unplug the heater. •...
-
Page 6: Installing Within A Bathroom
INSTALLING WITHIN A BATHROOM If the appliance is to be fitted within a bathroom, a good understanding of the zoning within bathrooms is required to ensure the unit is mounted in a safe position. The appliance is rated as IPX4 and should be installed outside of Zones 0 -2. We would advise when the unit is fitted within a bathroom, the plug is removed from the unit, and a suitable fused spur is installed in accordance with BS 7671. -
Page 7: Features
FEATURES • 3 Heating Modes • 2 Power levels – Comfort Mode (2.5kw) and Eco Mode (1.25kw) • Tempered Glass Panel • Easy to Read LED Display • 24 Hour Countdown Timer • Wi-Fi Enabled with App Control • Scheduling functionality through the app. •... -
Page 8: Wall Mounting
WALL MOUNTING The heater must be installed at least 15cm from the floor and 50cm from the ceiling. IMPORTANT: Before drilling, ensure that no wires or pipelines are behind the wall to prevent damage. 1. Fix two brackets onto the bottom of the unit as shown in the image below using the screws provided (ᶲ4x12). -
Page 9: Operation
OPERATION CONTROL PANEL Digital Display Wi-Fi Icon Temperature Icon Timer Icon Comfort Icon Heating Icon ECO Icon Lock Icon Anti-Frost Icon Settings Down Power POWER Press to turn the appliance on and off. BUTTON Press to change between adjusting the operating mode, SETTINGS temperature, and setting the timer (Then use the UP and DOWN BUTTON... - Page 10 POWER Press the POWER button to turn the appliance on and off. The appliance will start in Comfort mode, with a target room temperature of 25°C. CHANGING THE HEATING MODE After turning the appliance on, use the UP or DOWN buttons to cycle through the modes and choose between COMFORT mode, ECO mode, and ANTI-FROST mode.
- Page 11 REMOTE CONTROL The buttons on the remote work in exactly the same way as the buttons on the appliance. ADDITIONAL FEATURES DISPLAY TIME OUT If no buttons are pressed for 30 seconds, the display will become dim, but not turn off. Press any button to return the screen to full brightness.
-
Page 12: Setting Up The App
CONNECTING THE APPLIANCE TO Wi-Fi DOWNLOAD THE APP TO YOUR PHONE Download the “TUYA SMART” app, from your chosen app store, using the QR codes below, or by searching for the app in your chosen store. Android MODES AVAILABLE FOR SETUP The heater has two different setup modes, Quick Connection and AP (Access Point). - Page 13 REGISTER THE APP 1. Press on the register button Read the Privacy policy and 3. Enter your email address or at the bottom of the screen. press the Agree Button. phone number and press continue to register. 4. A verification code will be sent 5.
- Page 14 SETTING UP YOUR HOME WITHIN THE APP TUYA is designed so it can work with a large number of compatible smart devices within your home. It can also be set up to work with multiple devices within different houses as such during the setup process the app requires that different areas are created and named to allow easy management of all your devices.
- Page 15 CONNECTING USING THE QUICK CONNECTION METHOD Before initiating the connection, make sure the unit is in standby mode (Power switch ON, but unit turned off), with the Wi-Fi indicator flashing twice per second. If not follow the instructions for changing the connection mode. Also ensure your phone is connected to the Wi-Fi network.
- Page 16 CONNECTING USING AP MODE ALTERNATIVE METHOD Before initiating the connection, make sure the WiFi Light Indicator flashing once per second. If not follow the instructions for changing the WiFi connection mode. Also ensure your phone is connected to the WiFi network. (We advise turning mobile data off during setup) 1.
-
Page 17: Using The App
CONTROLLING YOUR APPLIANCE THROUGH THE APP THE HOME SCREEN Each device has its own entry on the home screen to allow the user to either quickly turn the unit on or off, or to enter the device screen to make other changes. Voice Control: Press to Add Device: Add a device give verbal instructions for... - Page 18 DEVICE SCREEN The device screen is the main control screen for the heater, providing access to the controls to amend the functions and settings. Device Name Edit Name: Use to change Back: Returns to the Home the name of the heater, and Screen access additional features.
- Page 19 SMART SCENES Smart Scenes is a powerful tool providing the option to customize the operation of the air heater based both on conditions within the room and outside influences. This gives the user the option of specifying much more intelligent actions. These are split into two categories Scene and Automation. SCENE Scene allows for a one-touch button to be added to the Home Screen.
- Page 20 AUTOMATION Automation allows an automatic action to be set up for the device. This can be triggered by the Time, and a range of other influences, depending on what other TUYA enabled devices you have on the network. 1. Press on the Scene tab at the 2.
- Page 21 PROFILE TAB The profile tab gives you the option to edit both your detail, and use the added features of the unit. HOME MANAGEMENT Home Management proves options for managing your TUYA account, giving options such as adding a home, adding and removing rooms, and sharing devices with family.
-
Page 22: Cleaning And Maintenance
If the above solutions do not resolve the problem please contact the service centre. DECLARATION OF CONFORMITY Hereby, electriQ declares that this heater follows Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.electriQ.co.uk/content/declaration-of-conformity... - Page 23 LITHIUM COIN BATTERY WARNINGS BATTERY WARNING KEEP OUT OF REACH OF CHILDREN Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately. • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children.
-
Page 24: Technical Specifications
TECHNICAL DATA Model no. EGH25AWB EGH25AW Voltage 230V 2.0kW Frequency 50 / 60 Hz Max power 2500W IP Rating IP24 Model colour White/Black Product dimensions 850x240x555mm electriQ UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. -
Page 25: Product Fiche
Contact electriQ, Unit 2A, Trident Business Park, Neptune Way, Huddersfield, HD2 1UA Details Buy It Direct, The Black Church, St Mary’s Place, Dublin 7 Page 25 of 25...
