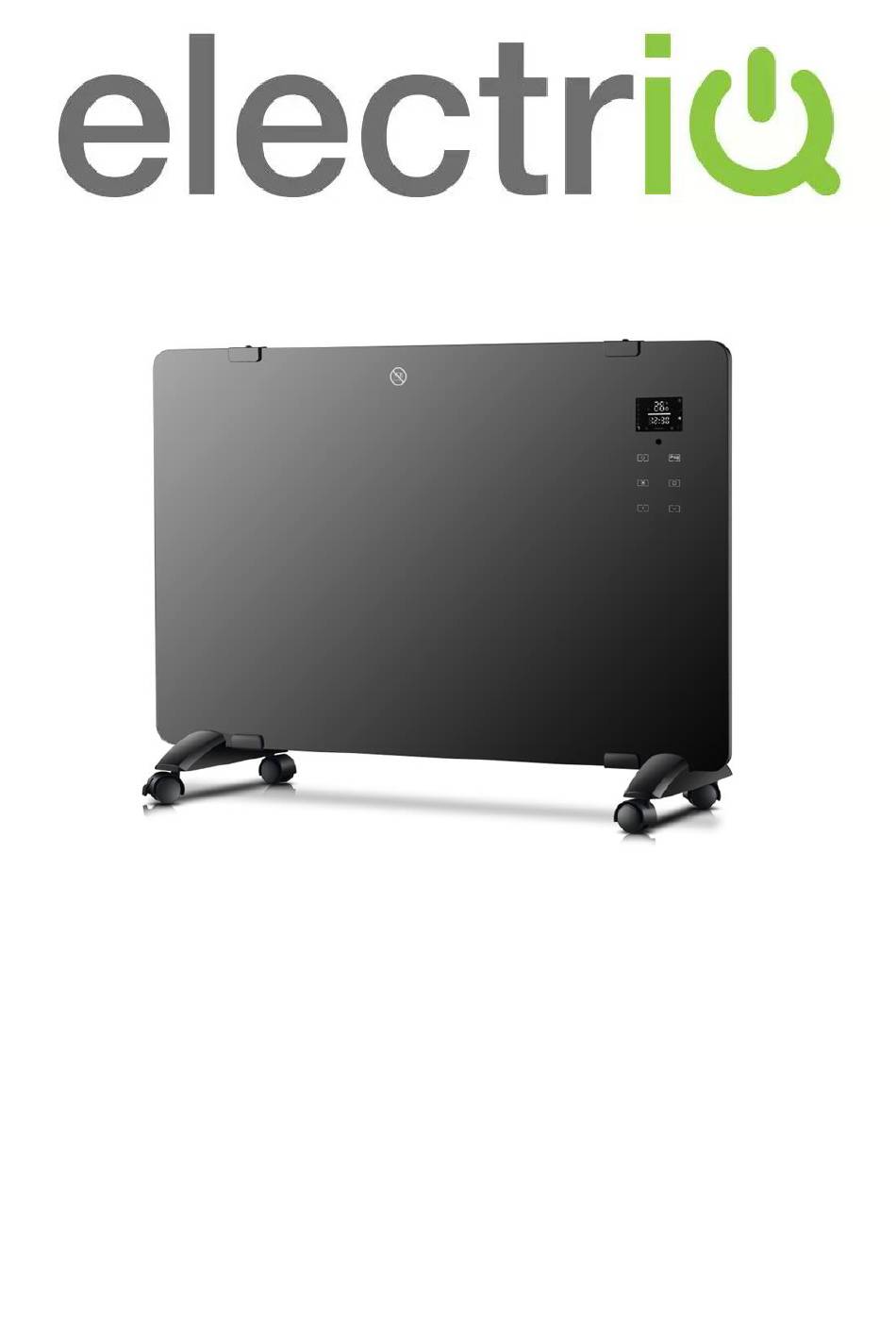

- Page 1 2.0 KW DESIGNER GLASS PANEL HEATER EGH20AW / EGH20AWB Thank you for choosing electriQ Please read this user manual before using this heater and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
- Page 2 Page 2 of 25...
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS SETTING THE UNIT UP INSTALLATION PRODUCT OVERVIEW QUICK USE GUIDE SETTING THE DAY AND TIME OPERATION TIMER SETTING UP THE APP USING THE APP CLEANING AND MAINTENANCE TROUBLESHOOTING TECHNICAL SPECIFICATIONS SUPPORT PRODUCT FICHE PSTI AND DECLARATION OF CONFORMITY Page 3 of 25... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT • Carefully read the instructions before operating the unit • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240V~50/60 Hz earthed outlet. • Installation must be in accordance with the regulations of the country where the unit is used. •... - Page 5 or connected to a circuit that is regularly switched on and off by the utility. • WARNING: In order to avoid overheating, do not cover the heater. Do not cover the air inlet or outlet or place items close to the unit, which may restrict airflow, as this may present a fire risk.
- Page 6 INSTALLING WITHIN A BATHROOM If the appliance is to be fitted within a bathroom, a good understanding of the zoning within bathrooms is required to ensure the unit is mounted in a safe position. The appliance is rated as IP24 and should be installed outside of Zones 0-2. We would advise when the unit is fitted within a bathroom, the plug is removed from the unit, and a suitable fused spur is installed in accordance with BS 7671.
-
Page 7: Parts List
FEATURES • 3 Heating Modes • Tempered Glass Panel • Easy to Read LED Display • 24 Hour Timer • Wi-Fi Enabled with App Control • Remote Control • Electronic Sensor Thermostat with Frost Protection Function • Double Overheat Protection •... -
Page 8: Wall Mounting
WALL MOUNTING The heater must be installed at least 15cm from the floor and 50cm from the ceiling. IMPORTANT: Before drilling, ensure that no wires or pipelines are behind the wall to prevent damage. INSTALLATION 1. Measure the distance between the 3 wall-hanging holes on the rear of the heater. -
Page 9: Product Overview
PRODUCT OVERVIEW REMOTE CONTROL CONTROL PANEL Power / Standby button Program button Mode button Timer button Up button Down button SWITCHING ON THE HEATER Plug the heater into the power supply and turn on the power switch (on the side of the unit). -
Page 10: Operation
4. Change the minute value using the UP and DOWN buttons. 5. Hold the TIMER button for 3 seconds to confirm the minute value. 6. Change the day shown on the day indicator using the UP and DOWN buttons. 7. Leave the unit for 5 seconds, and the day and time will be saved. TURNING ON AND OFF The STANDBY button can be pressed to enter and exit standby mode. -
Page 11: Weekly Timer
WEEKLY TIMER Hold the PROGRAM button for 3 seconds to start the weekly timer. "Prog" will appear on the display, signalling that the timer is active. Press the TIMER button once, and the number “1" will begin to flash on the display to show that the first day is selected. -
Page 12: Setting Up The App
CONNECTING THE APPLIANCE TO WIFI DOWNLOAD THE APP TO YOUR PHONE Download the ”TUYA SMART” app, from your chosen app store, using the QR codes below, or by searching for the app in your chosen store. Android MODES AVAILABLE FOR SETUP The heater has two different setup modes, Quick Connection and AP (Access Point). - Page 13 REGISTER THE APP 3. Enter your email address 1. Press on the register 2. Read the Privacy policy or phone number and button at the bottom of and press the Agree press continue to register. the screen. Button. 6. The app is now registered. 4.
-
Page 14: Creating Rooms
SETTING UP YOUR HOME WITHIN THE APP TUYA is designed so it can work with a large number of compatible smart devices within your home. It can also be set up to work with multiple devices within different houses as such during the setup process the app requires that different areas are created and named to allow easy management of all your devices. - Page 15 CONNECTING USING THE QUICK CONNECTION METHOD Before initiating the connection, make sure the unit is in standby mode (Power switch ON, but unit turned off), with the WiFi indicator flashing twice per second. If not follow the instructions for changing the connection mode. Also ensure your phone is connected to the WiFi network.
- Page 16 CONNECTING USING THE APP MODE ALTERNATIVE METHOD Before initiating the connection, make sure the unit is in standby mode, with the WiFi Light Indicator flashing once per second. If not, follow the instructions for changing the WiFi connection mode. Also, ensure your phone is connected to the WiFi network. (We advise turning mobile data off during setup) 1.
-
Page 17: Using The App
CONTROLLING YOUR APPLIANCE THROUGH THE APP THE HOME SCREEN Each device has its own entry on the home screen, which allows the user to quickly turn the unit on or off or to enter the device screen to make other changes. Voice Control: Press to Add Device: Add a give verbal instructions... -
Page 18: Device Screen
DEVICE SCREEN The device screen is the main control screen for the heater, providing access to the controls to amend the functions and settings. Device Name Edit Name: Use to Back: Returns to the change the name of the Home Screen. heater. - Page 19 SMART SCENES Smart Scenes is a powerful tool that allows the user to customize the operation of the air heater based on conditions within the room and outside influences. This gives the user the option of specifying much more intelligent actions. These are split into two categories: Scene and Automation.
- Page 20 AUTOMATION Automation allows an automatic action to be set up for the device. This can be triggered by the Time and a range of other influences, depending on what other TUYA-enabled devices you have on the network. 2. Press on the Automation 3.
-
Page 21: Message Centre
PROFILE TAB The profile tab gives you the option to edit both your detail, and use the added features of the unit. HOME MANAGEMENT Home Management provides options for managing your TUYA account, giving options such as adding a home, adding and removing rooms, and sharing devices with family. -
Page 22: Cleaning And Maintenance
MAINTENANCE CLEANING AND STORAGE ATTENTION: Please shut off the unit and unplug from the mains before cleaning or performing any maintenance. Cleaning the surface • Clean the heater with a duster or a soft wet cloth. • Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage. -
Page 23: Technical Data
TECHNICAL DATA Model no. EGH20AWB / EGH20AW Voltage 220V-240V 2.0kW Frequency 50 / 60 Hz Max power 1800-2000W IP Rating IP24 Model colour White/ Black Product dimensions 830x85x460 Product weight electriQ UK SUPPORT www.electriQ.co.uk/support For your convenience, please make these simple checks before calling the service line. -
Page 24: Product Fiche
Unit 2A, Trident Business Park, Neptune Way, Huddersfield, HD2 1UA Contact Buy It Direct, The Black Church, St Mary’s Place, Dublin 7 Details... -
Page 25: Psti And Declaration Of Conformity
Compliance and Quality Manager, Buy It Direct, Huddersfield August 2024 EU DECLARATION OF CONFORMITY Hereby, electriQ declares that these air conditioners are in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet addresses: https://www.electriq.co.uk/content/DOC/EU/EGH20AW.pdf...
