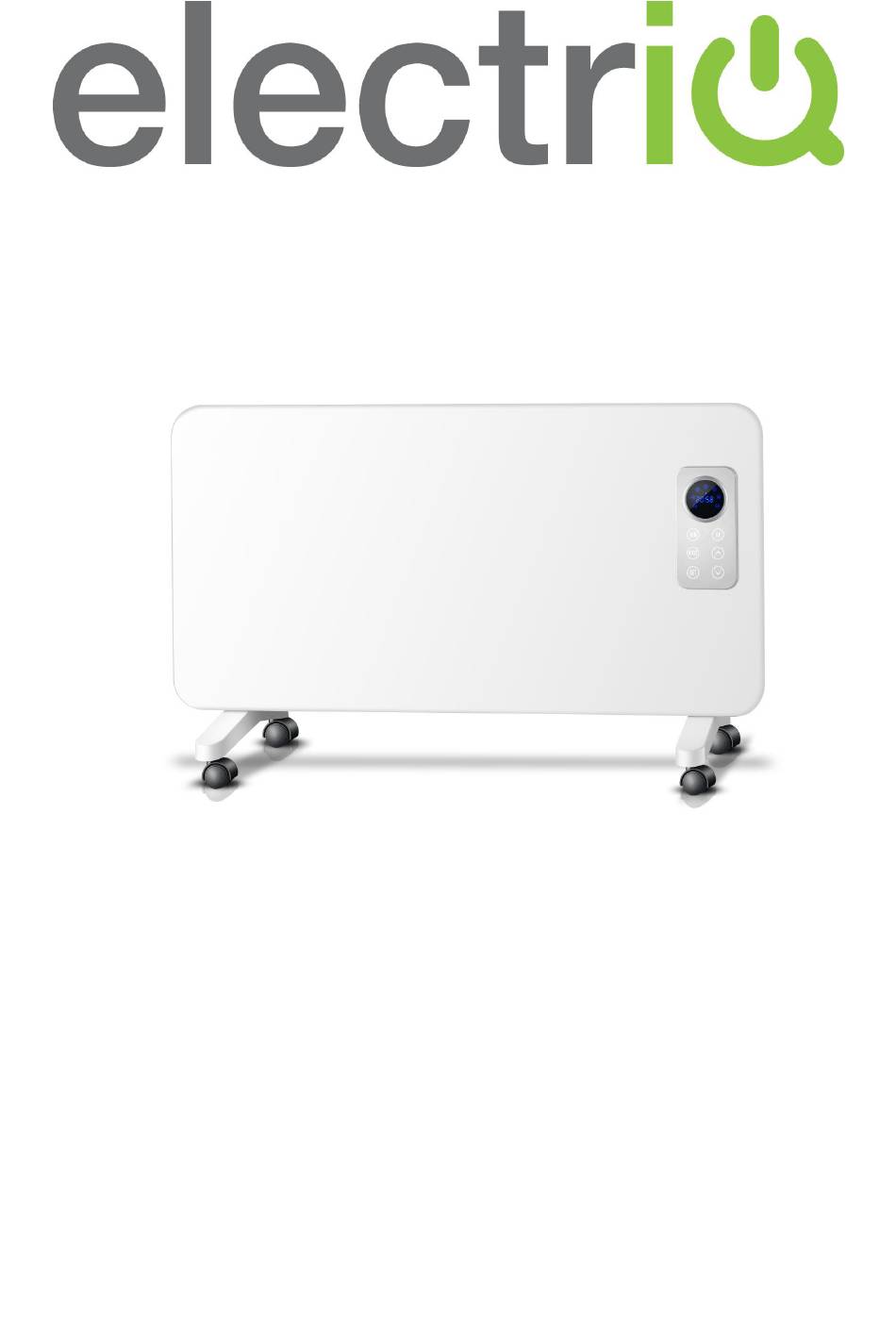

USER MANUAL
1 KW SLIM WALL MOUNTABLE
PANEL HEATER
EPMH1000LED
Thank you for choosing electriQ
Please read the manual before using this heater
and keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire product range
THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED SPACES OR
OCCASIONAL USE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ElectrIQ EPMH1000LED
Summary of Contents for ElectrIQ EPMH1000LED
- Page 1 Thank you for choosing electriQ Please read the manual before using this heater and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire product range THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED SPACES OR OCCASIONAL USE.
-
Page 2: Table Of Contents
CONTENTS SAFETY PRODUCT OVERVIEW INSTALLATION CONTROL PANEL OPERATION CLEANING AND STORAGE TECHNICAL SPECIFICATIONS TROUBLESHOOTING SUPPORT PRODUCT FICHE... -
Page 3: Safety
SAFETY INSTRUCTIONS IMPORTANT • Carefully read the instructions before operating the unit • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with the regulations of the country where the unit is used. - Page 4 • Always ensure the unit is secure before operation. Do not use on unstable or uneven surfaces and if wall-mounted, it must be securely attached to a suitable wall. • Do not move or tilt the unit. • Avoid keeping the unit in direct sunlight for a long period of time. •...
-
Page 5: Product Overview
PRODUCT OVERVIEW Display Control Panel Castors INSTALLATION The heater can be fitted with the supplied legs to use as a portable unit or wall mounted. Do not use the unit without the legs unless it has been wall mounted. FITTING THE LEGS Unscrew the two screws holding the wall mounting bracket to the back of the body, and keep in a safe place to allow the option of wall mounting in the future. - Page 6 WALL MOUNTING Before drilling any holes, it is the installers responsibility to ensure that there are no pipes or cables which may be damaged during installation. The unit should not be plugged in until installation is complete. Unscrew the two screws holding the wall mounting bracket to the back of the body.
-
Page 7: Control Panel
CONTROL PANEL Display Minute Button Heat Level Selection Mode Selection and Hour Button Temperature Up/ Timer Open Function Selection and Weekly Button Temperature Down/ Timer Close REMOTE CONTROL Function Selection and Child Lock Weekly Button Mode Selection Heat Level and Hour Button Selection Temperature Temperature... -
Page 8: Operation
OPERATION The unit should be turned on using the power switch on the side. The unit has 3 modes. Press the SET button to change the heater into the desired mode. The current mode will be indicated on the display TURNING ON Standby Mode Weekly Timer Mode... - Page 9 Change the heater into Weekly timer mode. Press the button to choose between the following pre- programmed heating periods: 1. Mon. to Fri. 2. Mon. to Sat. 3. Every day 4. Mon., Wed., Fri. 5. Tues., Thur., Sat. 6. Weekend 7.
-
Page 10: Cleaning And Storage
• Do not run the unit until completely dry. • Place the heater in its original box or cover to protect it from dust when not in use. • Store it in a cool dry place. TECHNICAL SPECIFICATIONS Model EPMH1000LED Voltage 220-240V~ Frequency 50-60Hz Power... -
Page 11: Support
UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call: 0871 620 1057 or complete the online form 1. Is the unit plugged into the mains? 2. -
Page 12: Product Fiche
Contact electriQ, Unit J6, Lowfields Business Park, Lowfields Way, Elland, Details West Yorkshire, HX5 9DA...
