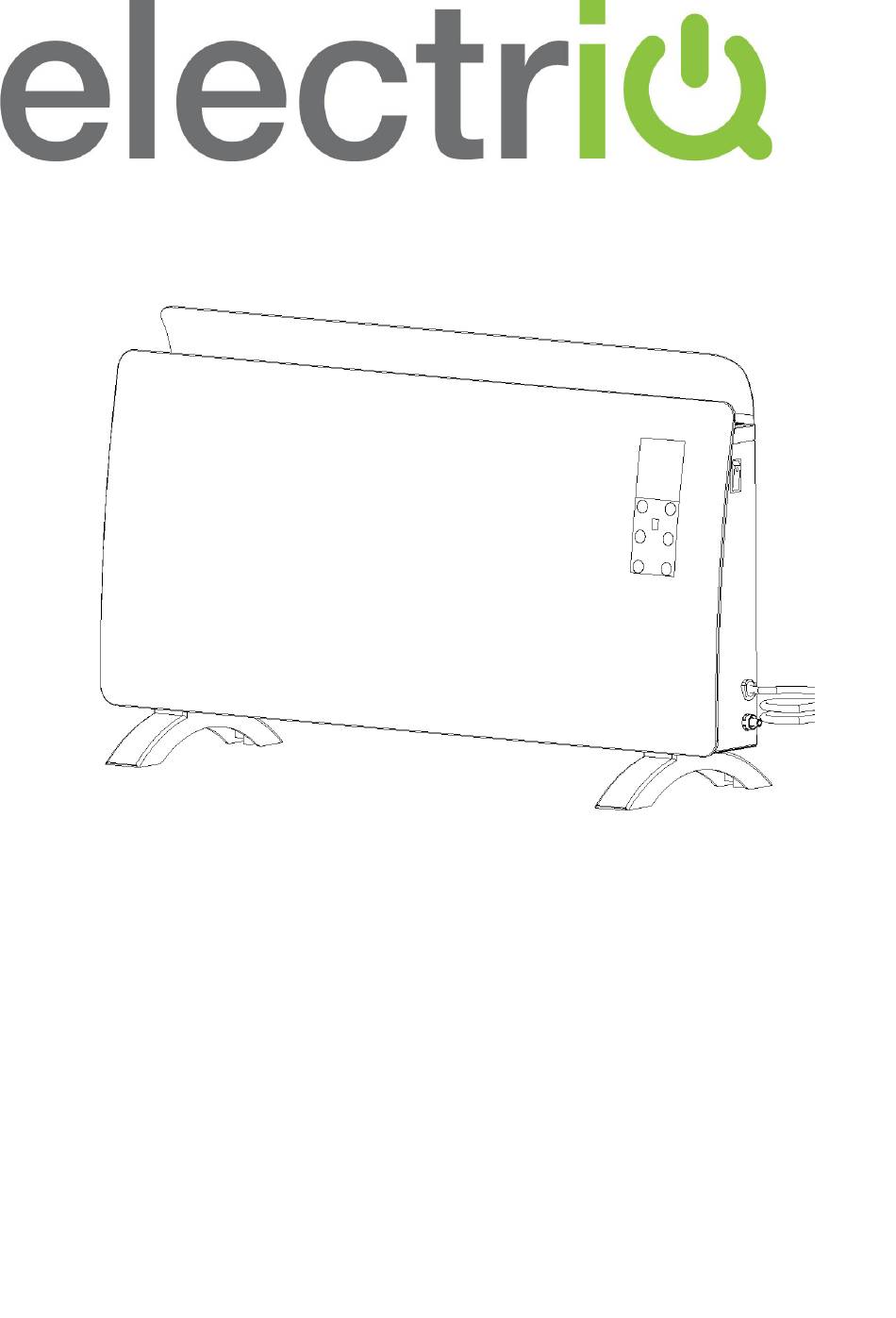

USER MANUAL PORTABLE PANEL HEATER ECGH20WW ECGH20WB Thank you for choosing electriQ Please read the manual before using this heater and keep it safe for future reference. Visit our page, www.electriQ.co.uk, for our entire product range.
CONTENTS SAFETY WARNINGS PRODUCT OVERVIEW ATTACHING THE FEET OPERATION SETTING UP THE APP CLEANING AND STORAGE TECHNICAL SPECIFICATION TROUBLESHOOTING BATTERY WARNINGS SUPPORT PRODUCT FICHE...
SAFETY INSTRUCTIONS IMPORTANT • Carefully read the instructions before operating the unit • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with the regulations of the country where the unit is used. •...
• Do not move or tilt the unit. • Avoid keeping the unit in direct sunlight for a long period of time. • The heater is designed to be used at temperatures above -20°C. If it is exposed to temperatures below this, it must be allowed to warm above this level before operation.
WALL MOUNTING INSTALLATION IMPORTANT: There must be a clearance of 40cm from the base of the heater to the floor. Keep the feet safe in case you would like to use this as a portable heater later. Measure the distance between both mounting holes and points A and B on the back of the appliance.
FUNCTION IMAGE DESCRIPTION Flick the switch to I to turn the unit on standby and 0 to Power turn the unit off. Press once to turn the unit on; the display will light up. Standby Press once to revert to standby. Once the unit is on, set the desired temperature, using Temperature the increase and decrease buttons to move it in 1˚C...
Page 8
Saturday =7. Then press set to set the hour. '00' and on/off will light up. Use the increase and decrease buttons to select the hour and whether that hour will turn the unit on or off. Repeat to set the minute. Once complete, hold the mode button for 10 seconds.
SETTING UP THE WIFI APP This is designed as a general guide to the setup. There may be differences in the interface and features available due to product development and features of the model. BEFORE YOU START • Ensure your router provides a standard 2.4 GHz connection. •...
APP CONNECTION Due to continuous product improvement, some images may differ from the current app. You can NOTE: download it from the Apple or Google Play Store. 1. Press the register button at Read the Privacy policy and 3. Enter your email address the bottom of the screen.
Page 11
SETTING UP YOUR HOME WITHIN THE APP The app allows you to have multiple homes, rooms, and devices, so you will need to set up at least one to get started. 1. Select ‘Me’ at the bottom of 2. Create and name your home, 3.
CONNECTING TO THE UNIT 2. Repeatedly press the settings button for 5-10 3. On the app, select the 'Add' button in seconds to turn the Wi-Fi Turn the heater on using the top corner. Then, select 'Add on. The Wi-Fi icon will flash the power button.
Page 13
CONTROLLING THE DEVICE VIA THE APP HOME SCREEN Voice Control: Press to give verbal Add Device: Add a device instructions for operation. to the app and go through the setup process. Name of Heater: Press to enter the Device Screen Home: Return to home screen from the Smart Scene and Profile screens...
Page 14
DEVICE HOME SCREEN Device Name Back: Returns to the Home Screen Current Temperature: Desired Displays what the Temperature: current temperature Displays what has been set as the target room temperature. Increase Desired Decrease Desired Temperature Temperature Temperature range Temperature range 10-40⁰C 10-40⁰C Settings: Enter the...
Page 15
PROFILE TAB The profile tab allows you to edit both your details and use the added features of the unit. HOME MANAGEMENT Home Management provides options for managing your TUYA account, such as adding a home, adding and removing rooms, and sharing devices with family.
• Do not run the unit until completely dry. • Place the heater in its original box or cover to protect it from dust when not in use. • Store it in a cool, dry place. TECHNICAL SPECIFICATIONS Model ECGH20WW ECGH20WB Voltage 220-240V~ Frequency...
UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate, call 0330 390 3061 or complete the online form. 1. Is the unit plugged into the mains? 2.
Compliance and Quality Manager, Buy It Direct, Huddersfield August 2024 EU DECLARATION OF CONFORMITY Hereby, electriQ declares that these air conditioners are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet addresses: https://www.electriq.co.uk/content/DOC/EU/ ECGH20WW.pdf https://www.electriq.co.uk/content/DOC/EU/ ECGH20WB.pdf...
