Summary of Contents for ElectrIQ EQODETALL

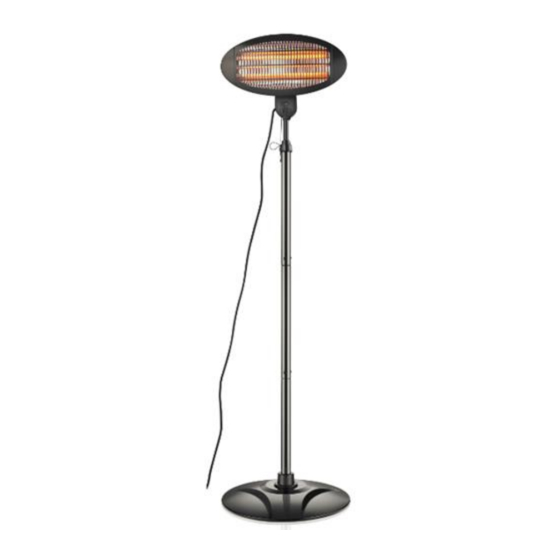

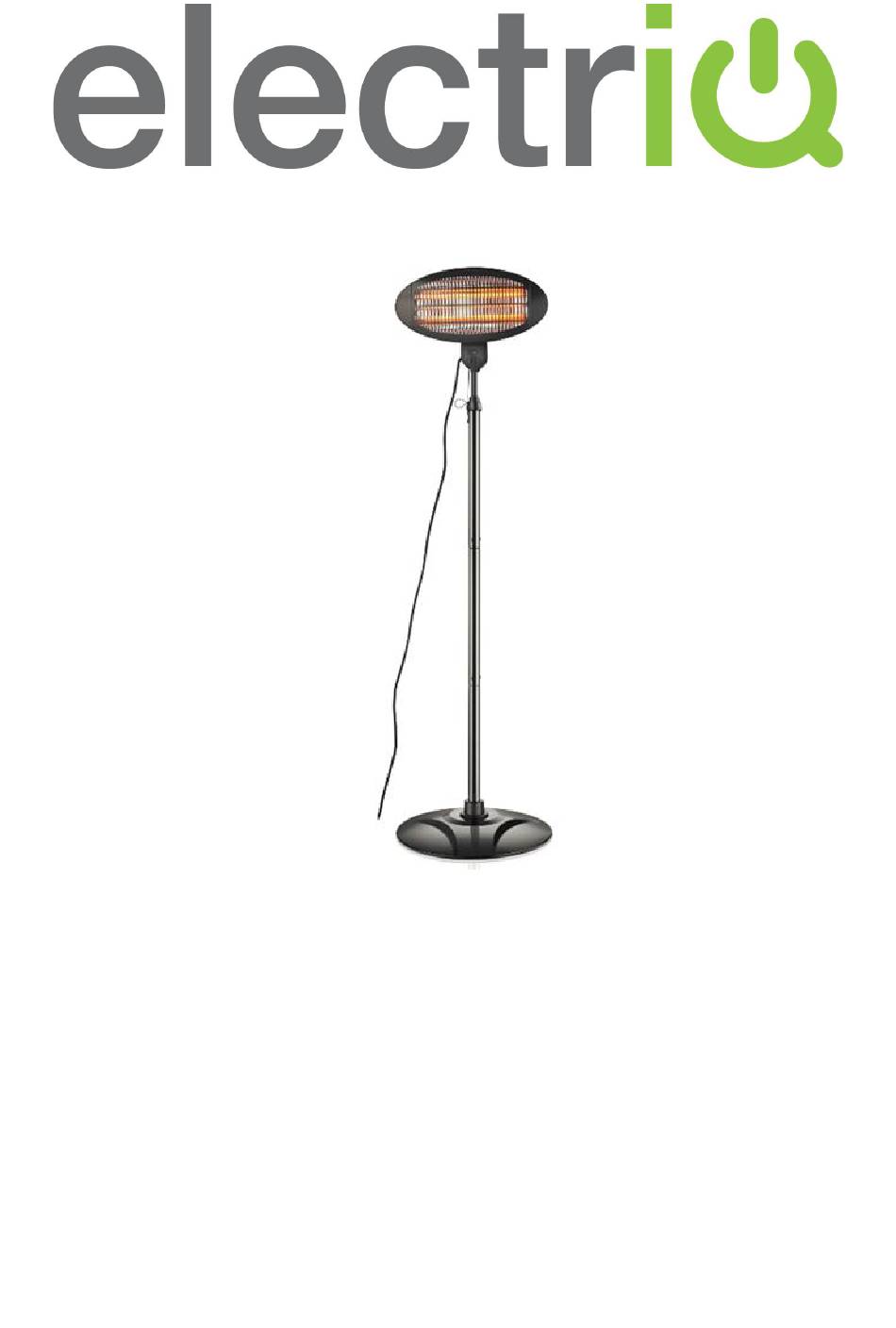

- Page 1 USER MANUAL OUTDOOR FLOOR STANDING AND WALL HANGING HEATER EQODETALL Thank you for choosing electriQ Please read the manual before using this heater and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire product range...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS PARTS LIST ASSEMBLY INSTALLATION OPERATION TROUBLESHOOTING CLEANING AND MAINTENANCE TECHNICAL SPECIFICATIONS SUPPORT... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT • Carefully read the instructions before operating this unit. • This appliance is for outdoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with the regulations of the country where the unit is used. - Page 4 or when moving or cleaning it. Do not pull the cord to unplug the heater. • Keep the heater clean. Do not allow any object to enter the ventilation or exhaust opening as this may cause electric shock, fire, or damage to the heater. •...
-
Page 5: Parts List
PARTS LIST PART NUMBER DESCRIPTION Heater Control dial Main body Position indication plate Pull switch Clips Upper pole Clamp 1 M6x6 bolt Middle pole Power cord Clamp 1 M6x6 bolt Base pole Base cover 4 M6x30 bolts Base... -
Page 6: Installation
INSTALLATION Check all the parts against the parts list. If parts are missing, please contact the supplier using the information located on page KIHHIPHPIJHPI This product MUST NOT be used if the power cable is damaged. For ease of assembly only loosely tighten bolts and tighten fully when assembly is complete. WARNING: Do not over tighten bolts;... -
Page 7: Operation
OPERATION 1. Before plugging the heater into a power supply, please first adjust the height and angle of the heater. 2. To adjust the height of your heater, turn the plastic adjustment fixing anticlockwise to unlock it. Lift up the heater to the desired height then turn the plastic adjustment fixing clockwise to secure the height of your heater. -
Page 8: Cleaning And Maintenance
• Do not run the unit until completely dry. • Place the heater in its original box or cover to protect it from dust when not in use. TECHNICAL SPECIFICATIONS Model EQODETALL Voltage(V) 220-240V AC Wattage(W) 650W/1300W/2000W Hertz (Hz) Dimensions –... -
Page 9: Support
UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call: 0330 390 3061 or complete the online form 1. Is the unit plugged into the mains? 2.
