Summary of Contents for ElectrIQ ELPH750LEDWW

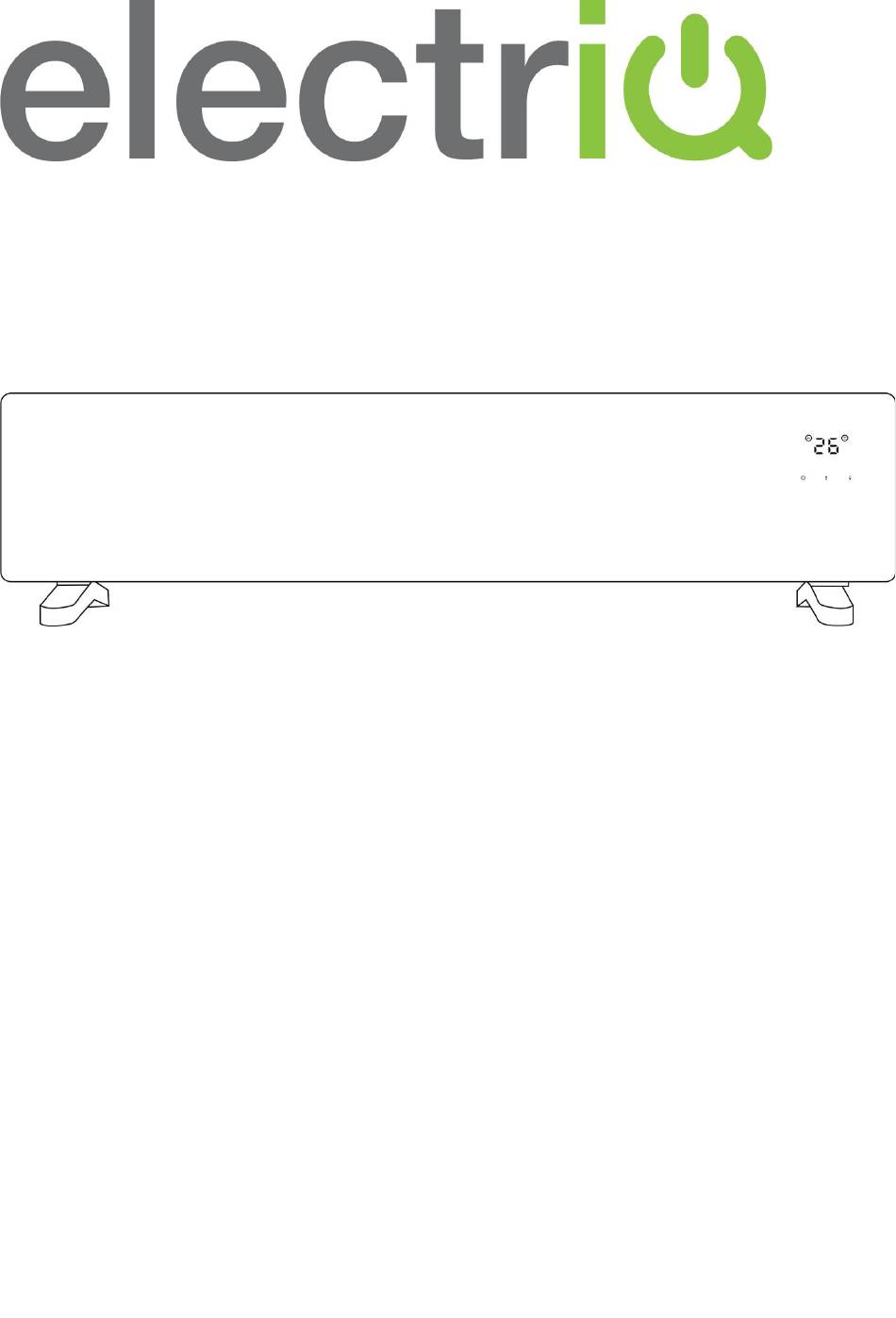

- Page 1 USER MANUAL PORTABLE OR MOUNTABLE PANEL HEATER ELPH750LEDWW Thank you for choosing electriQ Please read the manual before using this heater and keep it safe for future reference. Visit our page, www.electriQ.co.uk, for our entire product range.
-
Page 3: Table Of Contents
CONTENTS SAFETY WARNINGS PRODUCT OVERVIEW ATTACHING THE FEET MOUNTING OPERATION SETTING UP THE APP CLEANING AND STORAGE TECHNICAL SPECIFICATION TROUBLESHOOTING SUPPORT BATTERY WARNINGS PRODUCT FICHE PSTI AND DECLARATION OF CONFORMITY... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT • Carefully read the instructions before operating the unit • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with the regulations of the country where the unit is used. •... - Page 5 • Do not move or tilt the unit. • Avoid keeping the unit in direct sunlight for an extended period of time. • The heater is designed to be used at temperatures above -20°C. If it is exposed to temperatures below this, it must be allowed to warm above this level before operation.
-
Page 6: Product Overview
PRODUCT OVERVIEW Glass Panel LED Display Control Panel Feet Wheels Air Outlet Mode Increase Wall Bracket Timer Decrease Power Power Cable Child Lock Power PARTS Name Image Name Image Feet ST4*12 Screw Castors ST4*35 Screw Wall Plug... -
Page 7: Attaching The Feet
ATTACHING THE FEET 1. Rest the heater upside down on a soft cotton cloth or carpet. 2. Fix the feet to the base of the heater using the eight ST4*12 screws provided. 3. Line up the holes in the base with the holes in the feet, put the screws through the holes and tighten with a screwdriver. -
Page 8: Operation
OPERATION FUNCTION DESCRIPTION Power Press the ON/OFF button once to turn it on and once to turn it off. When turned on, the display will light up with the room's current temperature. Temperature Selection Use the increase and decrease buttons to set the target temperature between 5˚C and 40˚C. -
Page 9: Setting Up The App
SETTING UP THE WIFI APP This is designed as a general guide to the setup. There may be differences in the interface and features available due to product development and features of the model. BEFORE YOU START • Ensure your router provides a standard 2.4 GHz connection. •... -
Page 10: App Connection
APP CONNECTION Some images may differ from the current app due to continuous product improvement. You can NOTE: download it from the Apple or Google Play Store. 1. Press the register button at Read the Privacy policy and 3. Enter your email address the bottom of the screen. - Page 11 SETTING UP YOUR HOME WITHIN THE APP The app allows you to set up multiple homes, rooms, and devices, so you must set up at least one to get started. 1. Select ‘Me’ at the bottom of 2. Create and name your home, 3.
-
Page 12: Connecting To The Unit
CONNECTING TO THE UNIT 2. Turn the wifi on by holding the power button for 5 seconds. The icon 3. select the 'Add' button in the app in will flash until Turn the heater on using the top corner. Then, select 'Add connected. - Page 13 CONTROLLING THE DEVICE VIA THE APP HOME SCREEN Voice Control: Press to give verbal Add Device: Add a device instructions for operation. to the app and go through the setup process. Name of Heater: Press to enter the Device Screen Home: Return to home screen from the Smart Scene and Profile screens...
- Page 14 DEVICE HOME SCREEN Active Mode Current Temperature: Desired Displays what the Temperature: current temperature Displays what has been set as the target room temperature. Increase Desired Decrease Desired Temperature Temperature Temperature range 5- Temperature range 45⁰C 5-45⁰C Settings: Enter the settings menu.
-
Page 15: Profile Tab
PROFILE TAB The profile tab allows you to edit both your details and use the added features of the unit. HOME MANAGEMENT Home Management provides options for managing your TUYA account, such as adding a home, adding and removing rooms, and sharing devices with family. -
Page 16: Cleaning And Storage
• Do not run the unit until completely dry. • Place the heater in its original box or cover to protect it from dust when not in use. • Store it in a cool, dry place. TECHNICAL SPECIFICATIONS Model ELPH750LEDWW Voltage 220-240V~ Frequency 50-60Hz... -
Page 17: Support
UK SUPPORT www.electriQ.co.uk/support For your convenience, please make these simple checks before calling the service line. If the unit still fails to operate, call 0330 390 3061 or complete the online form. 1. Is the unit plugged into the mains? 2. -
Page 18: Battery Warnings
BATTERY WARNING KEEP OUT OF REACH OF CHILDREN Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately. • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. -
Page 19: Product Fiche
Contact electriQ, Unit 2A, Trident Business Park, Neptune Way, Huddersfield, Details HD2 1UA The Black Church St Marys Place, Dublin 7. -
Page 20: Psti And Declaration Of Conformity
Compliance and Quality Manager, Buy It Direct, Huddersfield August 2024 EU DECLARATION OF CONFORMITY Hereby, electriQ declares that these air conditioners are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet addresses: https://www.electriq.co.uk/content/DOC/EU/ELPH750LEDWW.pdf...
