WOERNER GMA Quick Start Manual

Reservoir size
Reservoir type
Pump unit
GMA-B
Drive by means
of 24V direct
current motor
Pump unit
GMA-C
Drive by means
of three-phase
current motor
electrical
for grease NLGI-class 1 and 2
level control (intermittently signal)
(alternativ) for oil (float switch)
Pump unit GMA
112.250
2 or 4l
transparent
EUGEN WOERNER
Postfach 1661
Am Eichamt 8
Tel. +49 (0) 9342 803-0
Fax.+49 (0) 9342 803-202 www.woerner.de
4 or 7l
Galvanized sheet steel
for grease NLGI-class 1 and 2
( intermittently signal )
for oil (float switch)
GmbH & Co. KG
DE-97866 Wertheim
DE-97877 Wertheim
info@woerner.de

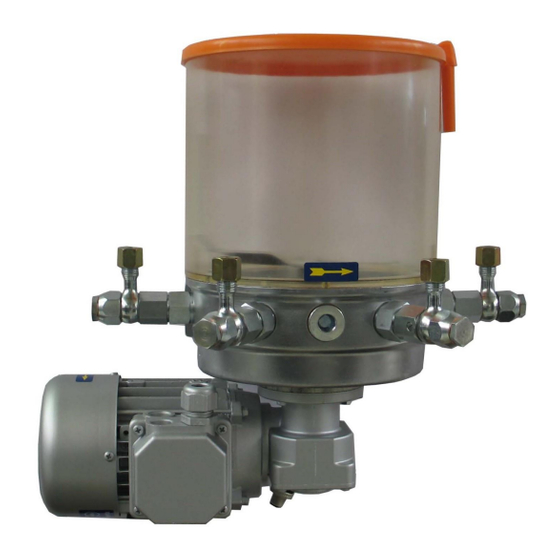

Pump unit
GMA
Application:
Pump unit in centralized lubrication
systems
adjustable delivery volumes
+
with monitoring device
+
with up to 3 pump elements
+
usable for delivery of oil, semi-fluid
+
grease or grease
5 or 10l
Polyester
for grease up to NLGI-class 2
(static signal)
for oil (float switch)
Leaflet-No. 0301.12.07 EN
Replaces No. 0301.05.07 EN
Page 1 of 6
