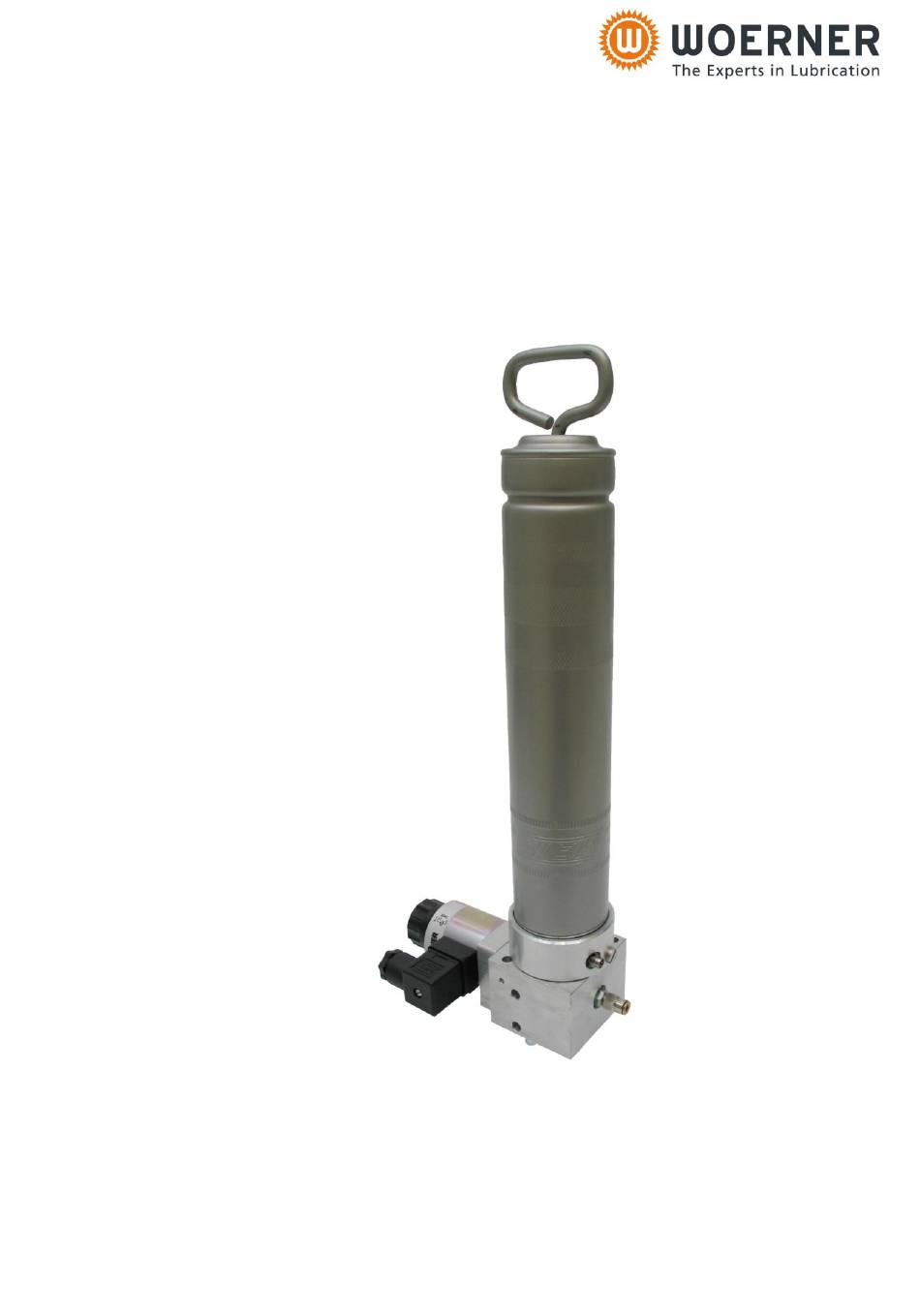

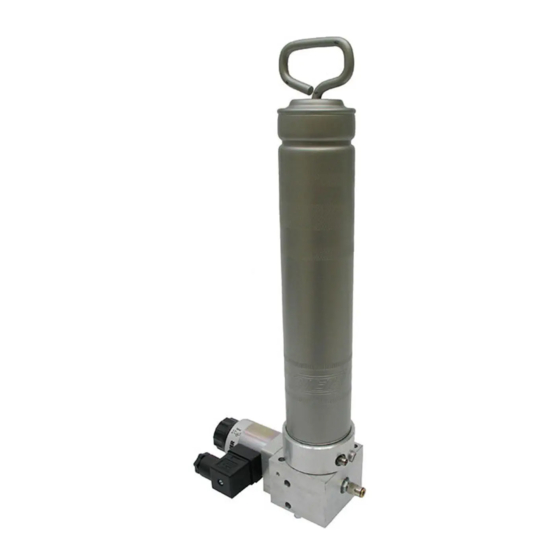

- Page 1 Piston pump GMV-B Translation of the original operation manual Version EN 12/2018 Operating manual GMV-B Page 1 of 28 B0823...
- Page 2 This document shall neither be transferred to third parties nor copied. Its content must neither be commercialized nor communi- cated, if not explicitly allowed. Violating the before mentioned will cause claim for indemnification. All rights reserved. Operating manual GMV-B Page 2 of 28 B0823...
-
Page 3: Table Of Contents
4. Description of function ....................13 Drive assembly ..................... 13 4.1.1 Solenoid-based drive assembly ................13 4.1.2 Pneumatic drive assembly ..................13 Working mode of the version GMV-B ..............13 Level monitoring ....................14 Function control ....................14 5. Safety instructions ......................14 Fundamental ...................... - Page 4 Spare parts list ..................... 23 Accessories ......................24 9. Return to manufacturer ....................25 Disposal ........................27 Appendix........................27 11.1 Content of the declaration of harmlessness ............27 11.2 Declaration of Conformity ..................28 Operating manual GMV-B Page 4 of 28 B0823...
-
Page 5: Important Information On This Operating Manual
WOERNER. 1.3 Questions: What to do? If questions arise, which you cannot solve with this operating manual, do not hesitate to ask WOERNER for support. In such case, describe the problem as precisely as possible. 1.4 Operating manual 1.4.1 Validity This operating manual fits to the series design of the unit of type GMV-A. -
Page 6: Site Of Operation
Important! Instructions for use and other useful information that facilitate usage of the product according to its design. Danger! Immediately threatening danger by electric current that may lead to heavy body injuries. Operating manual GMV-B Page 6 of 28 B0823... -
Page 7: Identification
2. Identification 2.1 Product mark and type designation Product of the manufacturer Eugen Woerner GmbH & Co. KG Product type: GMV-B 2.2 Product version Version from the year of production 2015 2.3 Product denomination The identification plate has been attached to the side of the pump case and informs on:... -
Page 8: Product Description
3. Product description 3.1 Use The unit GMV-B has been exclusively designed for the supply of lubri- cating grease up to the NLGI-class 2. 3.2 Limits of application The range of application of the components has been limited as follows: Temperature range: +10 ... -
Page 9: Use According To Design
3.4 Use according to design The unit must be exclusively used for the supply of lubricating greases (GMV-B ) in central lubricating installations, which the following conditions have to be considered for: Observance of the safety instructions and safety rules in this operating manual. -
Page 10: Dimensions
3.5.2 Dimensions GMV-B/M GMV-B/P Operating manual GMV-B Page 10 of 28 B0823... -
Page 11: Technical Data
Zinced steel Zinced steel Exterior parts Aluminium Aluminium Material NBR/FPM NBR/FPM Sealings Acceleration, max. 2 x g 2 x g Delivery-pressure diagram for GMV-B/M with solenoid 100% ED Feed pressure in bar Operating manual GMV-B Page 11 of 28 B0823... -
Page 12: Level Monitoring
3.5.5 Function control 1 10 … 30 VDC Voltage ≤200 mA Load current Protection DIN EN 60529 IP67 Connection Plug connector M8x1, 3-pin Output PNP NO contact Operating manual GMV-B Page 12 of 28 B0823... -
Page 13: Description Of Function
3/2-directional control valve. The 3/2-solenoid valve is energised from an external power supply. For that purpose, however, an external control is required. 4.2 Working mode of the version GMV-B The piston pump consits of a pump housing with delivery piston 8, an electric or pneumatic drive 1 and an cartridge reservoir 3. -
Page 14: Level Monitoring
Technically skilled staff properly instructed on the product is allowed to carry- out inspection, service and maintenance only. Skilled electricians are the only ones allowed to intervene in electrical installa- tions according to DIN VDE 1000-10. Operating manual GMV-B Page 14 of 28 B0823... -
Page 15: Safety Devices
Referring to experience, improper use may include, for example: Supply of highly flammable or explosive media. Supply of media, which are able reacting with materials the unit has been made of. Supply of foodstuff. Operating manual GMV-B Page 15 of 28 B0823... -
Page 16: General Safety Regulations And Duties
If damage to persons, equipment, environment and assets occurs due to ignoring this oper- ating manual regardless if intentionally or unintentionally, WOERNER shall not be held re- sponsible. No claim for warranty will be accepted. This is also true for any consequential damage. -
Page 17: Transport, Installation, Start-Up And Putting Out Of Operation
Important! Lay the mains cable that way to prevent any unintentional tearing off. Important! Skilled electricians are the only ones allowed to intervene in electrical installations according to DIN VDE 1000-10. Operating manual GMV-B Page 17 of 28 B0823... -
Page 18: Pneumatic Drive Assembly
Important! Lay the pneumatic lines that way to prevent any unintentional tearing-off. Connect the unit to the compressed-air supply system and control. Before starting-up, double-check the installation for correct connection. Operating manual GMV-B Page 18 of 28 B0823... -
Page 19: Start-Up
Unscrew reservoir and pull back piston bar up to stop. Then insert both sides opened grease cartridge into reservoir, and screw reservoir on. Screw reservoir on and push the piston bar back in again completely. Operating manual GMV-B Page 19 of 28 B0823... -
Page 20: Putting Out Of Operation
The unit is put out of operation by switching-off and deinstalling from the external power supply. Skilled electricians are the only ones allowed to intervene in electrical installations according to DIN VDE 1000-10. Operating manual GMV-B Page 20 of 28 B0823... -
Page 21: Operating Manual
If the above described trouble shooting should not successfully work and the proposed remedy does not help eradicating the fault to restore the proper function of the pump, please get in contact with WOERNER. Operating manual GMV-B Page 21 of 28... -
Page 22: Replacing The Lubricant Cartridge
The unit may be cleaned with commercial agents. Before starting cleaning, make sure that such cleaning agents do not harm the materials the unit has been made from. Operating manual GMV-B Page 22 of 28 B0823... -
Page 23: Maintenance
Check the filling level of the pump unit. weekly 8.4 Repair In case of need of repairs, call for the WOERNER service. 8.5 Spare parts list See data sheet E0823 Operating manual GMV-B Page 23 of 28... -
Page 24: Accessories
Timer 110-240 VUC Drive, 976.202-53 with cable variant C + D socket Adapter Drive, to M12x1, 913.405-47 variant A + B shape A Adapter Drive, to M12x1, 913.405-56 variant V shape BI Operating manual GMV-B Page 24 of 28 B0823... -
Page 25: Return To Manufacturer
Before shipping the product, make sure that the following measures have been taken: Empty and clean the product. Plug all openings. Pack the product safely and attach complete shipping documents. Attach the declaration of harmlessness. Operating manual GMV-B Page 25 of 28 B0823... - Page 26 The respective safety sheets have been attached. Date of return: Name, position: Phone number: Date, signature: Firm stamp: Appendices: Safety data sheet Operating manual GMV-B Page 26 of 28 B0823...
-
Page 27: Disposal
In addition, the machine complies with all provisions of the directive "Electromagnetic compatibility" (2004/108/EC). The following harmonised standards apply: DIN EN ISO 12100 DIN EN 60204-1 DIN EN ISO 4413 In charge for documentation: Stefan Tiederle Operating manual GMV-B Page 27 of 28 B0823... -
Page 28: Declaration Of Conformity
11.2 Declaration of Conformity Operating manual GMV-B Page 28 of 28 B0823...
