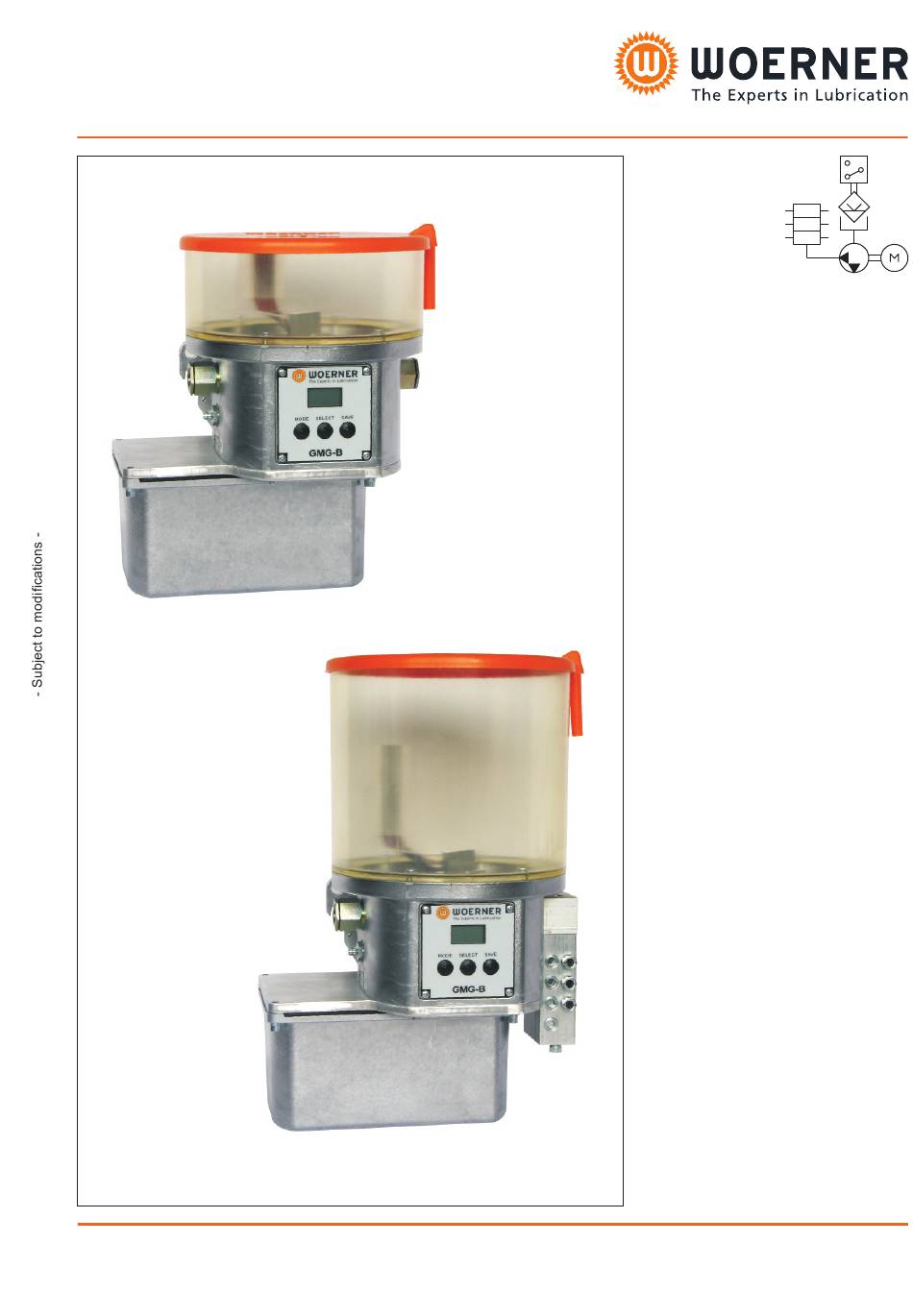

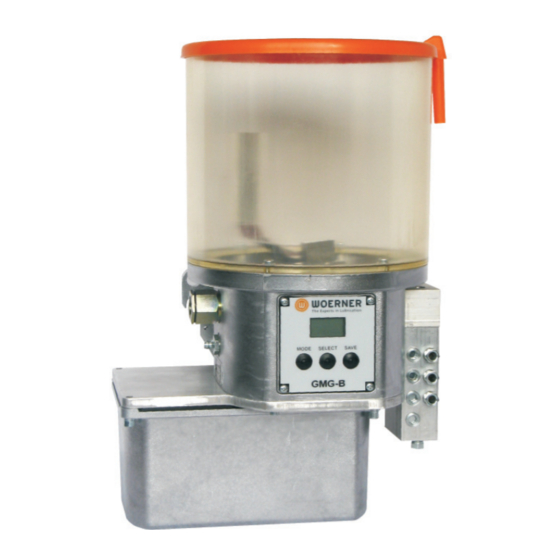

Pump aggregate
GMG-B

Use:

As pump aggregate in central lubrication
systems
for the delivery of oil, liquid grease or
+
grease
1 or 2 pump outlets
+
up to 20 outlets with progressive
+
distributor flanged-on
electric control and monitoring
+
with function stirring without
+
delivery

Technical data:

Admissible
delivery pressure:
at max. 250 bar
Number of pump elements:
Delivery volume per stroke and element
with pump element 08:
with pump element 16:
Temperature range:
At low temperatures, grease pene-
tration needs to be observed.
Mounting position:
Material
Casing:
Pump element:
Reservoir:Steel /Polyamide transparent
Gaskets:
NBR (Perbunan)
Medium: Oil and grease up to NLGI class 2
(Mind conditions of use of both the
reservoir and filling level monitoring
device!)
Mains voltage:
Current at max.:
Speed
(load-dependent):
approx. 30 min
System of protection:
(
Depending on type of construction, the
DC gear motor should only be used
in pulse mode. For other modes of
operation, three-phase current motors
are of advantage (e.g. Pump aggregate
GMA-C)
.)
Leaflet-No.
0704.01.08 EN
Replaces No.
0704.08.07 EN
Page 1 of 8
at max. 2
0,08 cm³
0,16 cm³
-20 ... +60 °C
vertically
Aluminium
Steel
24 VDC
2,5 A
-1
IP 55
