Summary of Contents for WOERNER GMG-B

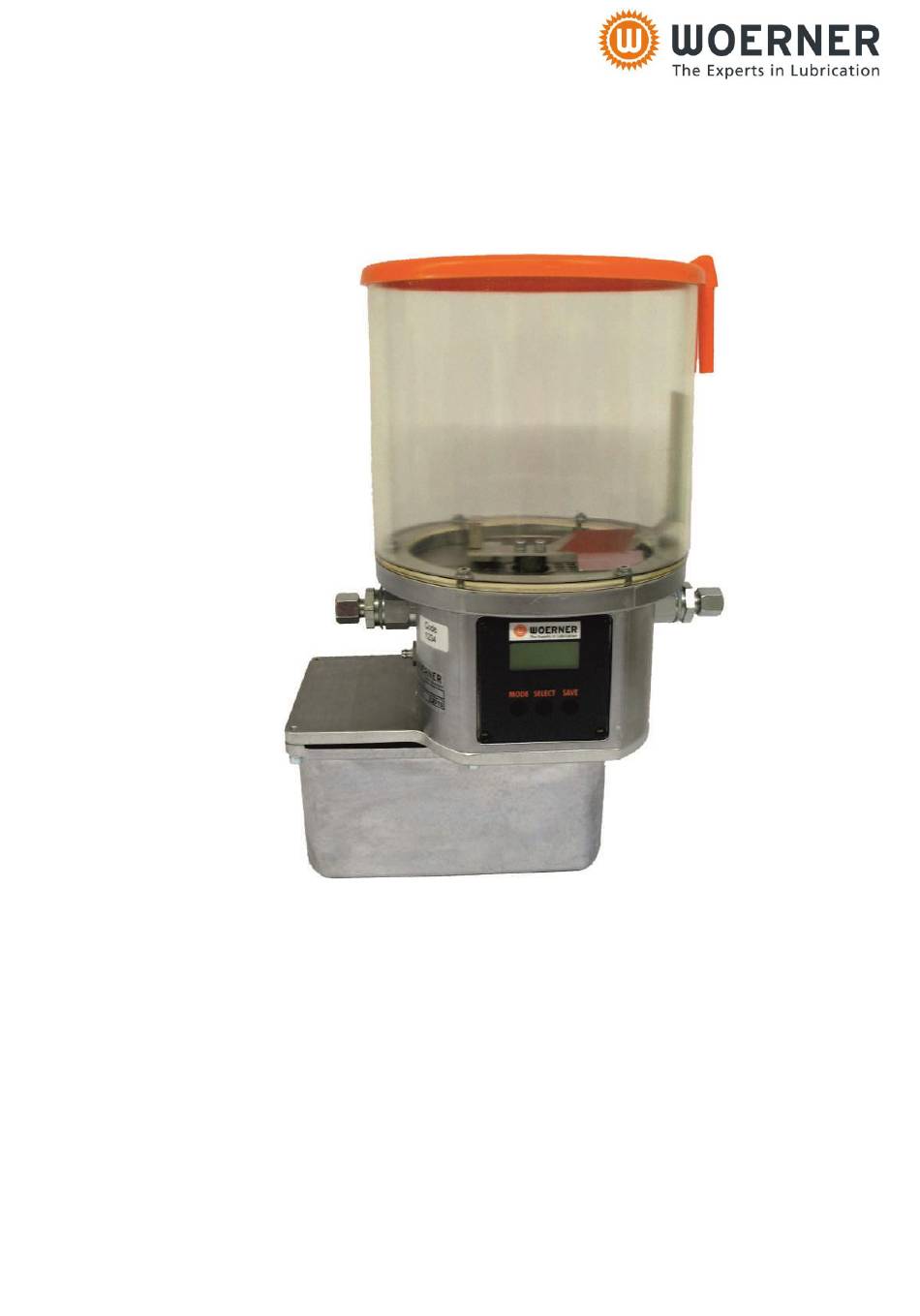

- Page 1 PUMP UNIT TYPE GMG-B Translation of the original operation manual Version EN 10/2019 GMG-B Operation manual Page 1 of 45 B0743...
- Page 2 Unless permitted explicitly, the dissemination, reproduction, and utilisation of this document as well as the communication of its contents are prohibited. Any violation of this stipulation shall involve the obligation to compensate damage. All rights reserved. GMG-B Operation manual Page 2 of 45 B0743...
-
Page 3: Table Of Contents
Disclaimer ......................22 6. Transportation, installation, commissioning and shutdown ........23 Transportation ...................... 23 Unpacking ......................23 Installation ......................23 Power supply and switch-on ................. 24 Commissioning ..................... 24 Shutdown ......................26 GMG-B Operation manual Page 3 of 45 B0743... - Page 4 9. Return shipment to factory ................... 41 Disposal ........................43 Appendix........................43 11.1 Content of the declaration of conformity ............... 43 11.2 Declaration of conformity ..................44 11.3 Control settings parameter sheet ................45 GMG-B Operation manual Page 4 of 45 B0743...
-
Page 5: Important Notes On This Operation Manual
1.4 Operation manual 1.4.1 Applicability This operation manual is applicable to the series versions of the GMG-B pump units. Should any part thereof be related to particular versions only, special reference will be made. 1.4.2 Content and purpose This operation manual contains the relevant information for the commissioning, operation and maintenance of the pump unit. -
Page 6: Location
Notes on application and other useful information facilitating the proper usage of the product. Danger! Any danger threatening immediately due to the presence of electric current that may cause serious personal injuries. GMG-B Operation manual Page 6 of 45 B0743... -
Page 7: Identification
2. Identification 2.1 Product brand and type designation Piston pump unit manufactured by Eugen Woerner GmbH & Co. KG Product type: GMG-B 2.2 Product version Version as of model year 2018 2.3 Product marking The type label is located at the side of the pump body and contains information as follows:... -
Page 8: Product Description
+60 °C Relative humidity: max. 70% Noise level: <70 dB(A) Physical environment In heights as of 1.000 metres above sea level, the system should be operated after consulta- tion with the manufacturer only. GMG-B Operation manual Page 8 of 45 B0743... -
Page 9: Conventional Usage
Important! Please also note the safety data sheets pertaining to the materials used. 3.5 Technical data 3.5.1 Assemblies The GMB-B pump unit consists of up to four assemblies the different GMG-B versions of which may vary: Pump body with monitoring device and motor ... -
Page 10: Dimensions
3.5.2 Dimensions GMG-B dimension sheet Weight: with reservoir "2" max. 6,1 kg* with reservoir "4P" max. 6,3 kg* with reservoir "7V" max. 7,8 kg* *without progressive distributor, without lubricant GMG-B Operation manual Page 10 of 45 B0743... -
Page 11: Base Unit
3.5.3 Base unit In its basic version, the GMG-B comprises the pump body with motor and a reservoir mounted on. The technical data of this unit is as follows: Number of pump elements 1 or 2 Delivery volume per stroke per pump element 04 0,04 cm³... -
Page 12: Level Monitoring (Option)
The technical data of the (optional) control is as follows: Control "C" Power input Input resistance 4,5 kΩ -20 … +60 °C Temperature range Data buffer 10 years GMG-B Operation manual Page 12 of 45 B0743... -
Page 13: Progressive Distributor (Option)
-5 … +60 °C Temperature range Outer material PA / 1.4305 3.5.7 Electric connection The pump unit’s electric connection data is as follows: Type of connection: Connector socket M12x1, 5-pin (8) GMG-B Operation manual Page 13 of 45 B0743... - Page 14 4 Level control For equipotential bonding installation, the pump casing is fitted with a threaded M4 (9) connector. The electric wiring in accordance with DIN VDE 1000-10 may be done by qualified electricians only! GMG-B Operation manual Page 14 of 45 B0743...
-
Page 15: Functional Description
4. Functional description 4.1 Drive The GMG-B pump unit is driven by a direct current gear motor 5 that is flanged to the pump casing 4 from below. 4.2 Delivery function When the eccentric shaft 3 is rotating, the delivery piston 2.1 of every pump element per- forms a suction and delivery stroke per rotation each whilst delivering lubricant from the reservoir 1 to the lube points. -
Page 16: Stirring Without Delivery Function
In some modes of operation, improvement of lubricant quality and delivery behaviour require additional stirring of the lubricant. In the GMG-B pump unit, such stirring is enabled by means of a specially designed eccentric drive. When the eccentric shaft 3 rotates into the one direction of rotation, the pump elements are working whilst the stirrer supplies them with lubricant. -
Page 17: Level Control (Option)
Minimum level monitoring for oil Level control "F" consists of a PUR float that is raised up in the oil. If the oil level falls below minimum, the contact will open. Level control "F" GMG-B Operation manual Page 17 of 45 B0743... -
Page 18: Progressive Distributors (Option)
When evaluation is to be made via pump control, pro- gressive distributors with electric functional control need to be selected. When, however, using the pump controller, one distributor each can be monitored only. GMG-B Operation manual Page 18 of 45 B0743... -
Page 19: Safety Notes
The unit may be inspected, maintained and repaired by technically skilled personnel with product-specific training only. Work on electric facilities may be performed by skilled electricians in conform- ity with DIN VDE 1000-10 only. GMG-B Operation manual Page 19 of 45 B0743... -
Page 20: Safety Facilities
Prevent unauthorised persons from accessing the pump unit. Keep foreign persons away from the areas and places of risk. Inform present foreign persons about residual risks repeatedly. Inform yourself about such risks in the "Residual risks" section. GMG-B Operation manual Page 20 of 45 B0743... -
Page 21: Residual Risks
It is prohibited to remove, modify, bridge or bypass any and all protection, safety or monitoring facilities. It is prohibited to reconstruct or modify the pump unit. The operator should be notified of any fault or damage immedi- ately. GMG-B Operation manual Page 21 of 45 B0743... -
Page 22: Disclaimer
Should any damage be caused to persons, objects, the environment and/or property due to the non-observance of this operation manual, no matter whether intentionally or unintention- ally, WOERNER shall be held harmless thereof. Besides, all warranty claims will be rejected. The same also applies to any and all consequential damage. -
Page 23: Transportation, Installation, Commissioning And Shutdown
Important! Particularly, when operating the pump unit with attached pro- gressive distributors, vibration-free and resilient mounting needs to be ensured! Mounting holes, ø11 mm Additional mounting holes, ø11 mm Drill scheme: GMG-B Operation manual Page 23 of 45 B0743... -
Page 24: Power Supply And Switch-On
When selecting the transmission oil, however, proper compatibility with the lubricant used needs to be ensured! GMG-B Operation manual Page 24 of 45 B0743... - Page 25 Bleeding without additional filling nipple: Screw the pressure control valve or lock screw 1 in. Then switch the pump on until the lubricant comes out free of air from all outlets of the progressive distributor 3. GMG-B Operation manual Page 25 of 45 B0743...
-
Page 26: Shutdown
The unit is shut down when switched off and disconnected from the external Power supply. Work on electric facilities may only be performed by skilled electricians in conformity with DIN VDE 1000-10. GMG-B Operation manual Page 26 of 45 B0743... -
Page 27: Operation
Selection of stirring function (yes = 001/no = 000) P11 Setting of off-duty time between two stirring processes in hours (1 … 100) P21 Setting the monitoring time for a distributor circulation in seconds (0 … 255) GMG-B Operation manual Page 27 of 45 B0743... -
Page 28: Control Operation
-1. During setting, the value display is flashing. Acknowledge the value changed by pressing [SAVE]. As soon as the display stops flashing, the new value will be saved. GMG-B Operation manual Page 28 of 45 B0743... -
Page 29: Test Mode (Also See Item 7.1.7)
(the keys must be kept depressed for half a second at least). In test mode, a pumping process is triggered for 10 seconds. Thereafter, the pump will stirr for another 5 seconds yet. GMG-B Operation manual Page 29 of 45 B0743... -
Page 30: Time On / Time Off Variant
(Stirring ON/OFF, see below) When the delivery time P8 + P9 is selected to be equal to or bigger than the cycle time P2 + P3, the pump unit will operate continuously! GMG-B Operation manual Page 30 of 45 B0743... -
Page 31: Time On / Distributor Pulses Off Variant
SELECT MODE SAVE SELECT SELECT MODE SAVE (Stirring ON/OFF, see below) MODE (Rühren ein/aus siehe unten) Be careful to ensure that the duration of pulse release is smaller than the cycle time! GMG-B Operation manual Page 31 of 45 B0743... -
Page 32: Machine Pulses On / Time Off Variant
MODE SAVE SELECT MODE SAVE (Distributor monitoring ON/OFF, see below) (Verteilerüberwachung ein/aus siehe unten) MODE SELECT SELECT MODE SAVE SELECT SELECT MODE SAVE MODE (Rühren ein/aus siehe unten) (Stirring ON/OFF, see below) GMG-B Operation manual Page 32 of 45 B0743... -
Page 33: Machine Pulses On / Distributor Pulses Off
MODE SELECT MODE SELECT MODE SELECT SAVE MODE SAVE SELECT SELECT SELECT SELECT MODE SAVE SELECT SELECT MODE SAVE SELECT SELECT MODE SAVE MODE (Rühren ein/aus siehe unten) (Stirring ON/OFF, see below) GMG-B Operation manual Page 33 of 45 B0743... -
Page 34: Special Functions
To this effect, the GMG-B can optionally (drive option 3A) be fitted with a pure stirring function. When this stirring function is switched on, a stirring process lasting one minute will be started after lapse of an adjustable off-duty time. -
Page 35: Error Messages
"no lubricant delivery" Error "E2" see under 5 Lubricant pressure too high "Lubricant pressure too high" Reservoir is empty Refill lubricant Error "E3" Monitoring cable broken Send the unit to WOERNER for repair GMG-B Operation manual Page 35 of 45 B0743... - Page 36 Check the electric connection to the interrupted monitoring device Should the above mentioned troubleshooring and the corresponding remedies not lead to a flawless operation of the pump unit, turn to WOERNER, please. GMG-B Operation manual Page 36 of 45 B0743...
-
Page 37: Refilling The Reservoir
10 … 15 mm Reservoir bottom edge 7.3 Switch-off The unit is switched off by disconnecting it from the power supply. The status of the last whole minute of the elapsed time will be stored. GMG-B Operation manual Page 37 of 45 B0743... -
Page 38: Cleaning, Servicing, Fault Remedy, And Repair
"Safety regulations" section and take effective measures to avoid injuries. Important! Also note the maintenance instructions in the operation guide- lines for the various components as they are included in the Appendix. GMG-B Operation manual Page 38 of 45 B0743... -
Page 39: Inspection Schedule
Delivery piston Unscrew the pump element cautiously. Replace the old pump element by an exchange part. When screwing down, be careful not to jam the connecting thread. For other repairs, turn to WOERNER, please. GMG-B Operation manual Page 39 of 45... -
Page 40: Accessories
Connecting cable for progressive distributor, cable length: 2,0 m 913.405-06 Power pack for connection to 230 VAC 470.218-68 Should you need cables with different cable lengths, turn to WOERNER directly, please. 8.6 List of spare parts See data sheet E0704 GMG-B spare parts list. GMG-B Operation manual... -
Page 41: Return Shipment To Factory
The product must be discharged and clean. All openings must be closed. The product must be packed safely and marked completely. The declaration of compliance must be attached. GMG-B Operation manual Page 41 of 45 B0743... - Page 42 The relevant safety data sheets are enclosed. Date of return shipment: Name, position: Phone number: Date, signature: Company stamp: Enclosures: Safety data sheet GMG-B Operation manual Page 42 of 45 B0743...
-
Page 43: Disposal
11. Appendix 11.1 Content of the declaration of conformity We hereby declare that the product Pump unit type GMG-B as of model year 2018 meets all relevant provisions of the directive on machinery (2006/42/EC). Furthermore, the machine complies with all provisions of the directive on electromagnetic compatibility (2004/108/EC). -
Page 44: Declaration Of Conformity
11.2 Declaration of conformity GMG-B Operation manual Page 44 of 45 B0743... -
Page 45: Control Settings Parameter Sheet
P10 Selection of stirring function No = 000 Off-duty time setting in hours between two stirring 1 … 100 processes Setting the monitoring time 0 … 255 for a distributor circulation in seconds GMG-B Operation manual Page 45 of 45 B0743...
