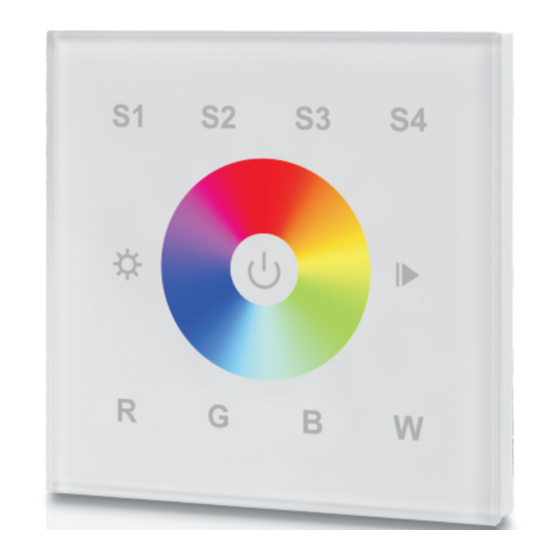

Wall mounted RGB/W DMX512 controller

Parameter

Operation Voltage
Part No.
SR-2812B
12-24VDC
Product Size
86.0

Installation

SR-2812B
Feature
Touch sensitive
Glass interface(White & Black)
Control 1 zone,save up to 4 color
5
ISO9001:2000
DIMENSIONS
OUTPUT
ø/h (mm)
DMX512 Signal
86x86x29.1

Button introduction

Save Color:
Long Touch S1/S2/S3/S4 to save
your favorite colors
Color Wheel:
Touch to choose color
Brightness

Wiring diagram

110V-230VAC
N
L
Power Supply
12-24VDC
SR-2812B
GND
Vin
D-
D+
GND
Switch: Short
touch
to
switch on/off
Color Running Button:
Short touch to start or Pause color
running mode;
Long touch to adjust speed (10 built-in
color running mode)
Short touch to choose the color R.G.B.W
Long touch to dim brightness of R.G.B.W
Power Supply
110V-230VAC
12-36VDC
SR-2102B
DMX512 Decoder
SR-2102B
DMX512 Decoder
SR-2102B
DMX512 Decoder
