Sunricher SR-2815DMX2 Manual

Sunricher SR-2815DMX2 Manual

Rf to dmx

Advertisement

Quick Links

Feature
High sensitive & high stable touch color wheel, fast & precise color control.
Enable to control 10 zones separately. Each zone can switch on/off separately.
Changing modes of 10 zones can be synchronized without any confusion.
10 changing modes. Enable to stay at any color under situation of color changing modes.
Adjustable changing speed with 8 levels, quickest speed is 4S, slowest speed is 256S.
Controlling RGBW or RGBY 4 colors that achieve more selectable colors than traditional RGB control.
To adjust brightness of each color independently that can achieve milions of changing colors.
Use with SR-2806/ SR-2804/ SR-2809.
Memory function, remember the last last color/scene

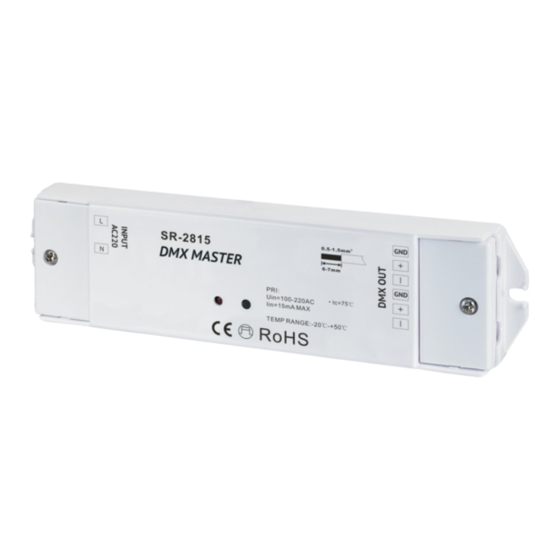

Product introduction
2815 DMX Master is DMX signal output to connect DMX decoders.All of the DMX decoders could be remote controlled
by the remote SR-2806 or SR-2809 or SR-2804.
There are display board and button on the DMX decoders that we could set addresses.
This DMX master suit for any DMX decoders want to be remote controlled.
Parameter
Part No.
Operation Voltage
SR-2815DMX1
110-220VAC
SR-2815DMX2
110-220VAC
Product Size
178.9
170.4
RF to DMX
Model:SR-2815
5
ISO9001:2000
Output
Remarks
DMX512 Signal
Match SR-2806
Match SR-2804 &
DMX512 Signal
SR-2809
Wiring diagram
1)Connection Diagram for Single Unit SR-2815
AC110-230V
2)Connection Diagram for Multiple Units SR-2815
AC110-230V
DIMENSIONS
ø/h (mm)
46x178x18
46x178x18
SR-2815
DMX512 Decoder
DMX512 Decoder
SR-2815
DMX512 Decoder
DMX512 Decoder
SR-2806
SR-2809
AC110-230V
SR-2815
DMX512 Decoder
DMX512 Decoder
SR-2815DMX1 matches
with SR-2806
SR-2815DMX2 matches
with SR-2809 & SR-2804
SR-2804

Advertisement

loading
Need help?

Need help?

Do you have a question about the SR-2815DMX2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunricher SR-2815DMX2

  • Page 1 Part No. Operation Voltage Output Remarks ø/h (mm) DMX512 Signal SR-2815DMX1 110-220VAC Match SR-2806 46x178x18 Match SR-2804 & SR-2815DMX2 110-220VAC DMX512 Signal 46x178x18 SR-2809 SR-2815DMX1 matches Product Size with SR-2806 SR-2815DMX2 matches 178.9 with SR-2809 & SR-2804 SR-2806 SR-2809 SR-2804 170.4...
  • Page 2 Operation Learning ID by remote You need pair the master and remote by pressing the Learning Key ,the led signal light would on,then choose the Zone No and touch color wheel ,The signal light will blink once ,signify that your master and remote are paired.
