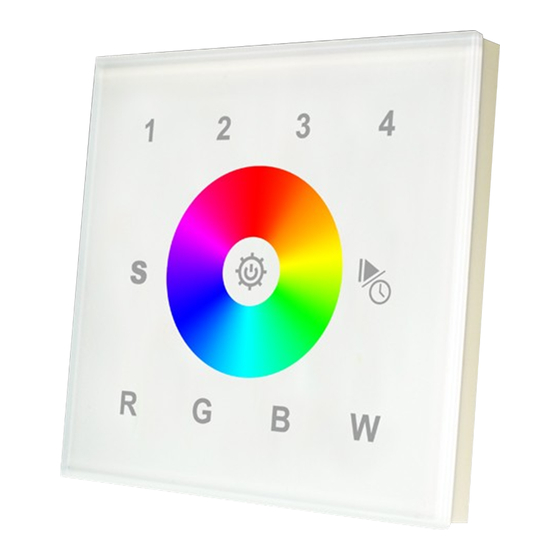

Wall mounted RGB/W DMX512 controller
Parameter
Operation Voltage
Part No.
SR-2812Wi
12-24VDC
Product Size
86.0
Installation
SR-2812Wi
Feature
Touch sensitive
Glass interface(White & Black)
Control 4 zones synchronously and separately
Save up to 4 color in each zone
DIMENSIONS
OUTPUT
ø/h (mm)
DMX512 Signal
86x86x29.1
Button introduction
short press: switch on/off of
lighting
long press 1,2,3,4 switch
on/off each zone
Wiring diagram
110V-230VAC
N
L
Power Supply
12-24VDC
SR-2812
GND
Vin
D-
D+
GND
SR-2812WI can be controlled by
IOS/Android system
short press: starting running
mode or pause mode, there are
10 bulid-in modes
long press: press zone button (
1 or 2 or 3 or 4), then do long
press on button which is to
adjust running speed.
Power Supply
110V-230VAC
12-36VDC
SR-2102B
DMX512 Decoder
SR-2102B
DMX512 Decoder
SR-2102B
DMX512 Decoder
Advertisement
Related Manuals for Sunricher SR-2812Wi
Summary of Contents for Sunricher SR-2812Wi
- Page 1 Part No. OUTPUT Wiring diagram ø/h (mm) SR-2812Wi 12-24VDC DMX512 Signal 86x86x29.1 110V-230VAC Product Size Power Supply 110V-230VAC 12-36VDC 86.0 Power Supply 12-24VDC SR-2812 SR-2102B DMX512 Decoder SR-2102B Installation DMX512 Decoder SR-2102B DMX512 Decoder SR-2812WI can be controlled by IOS/Android system...
- Page 2 3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer. Wifi to DMX function IOS or android system connection to the SR-2812Wi a.Download app to phone. Open wifi connection setting interface,connect your phone to EASYCOLOR or Realcolor network.
